The working principle and application scenarios of the direct return oil filter can be elaborated as follows:
Working Principle

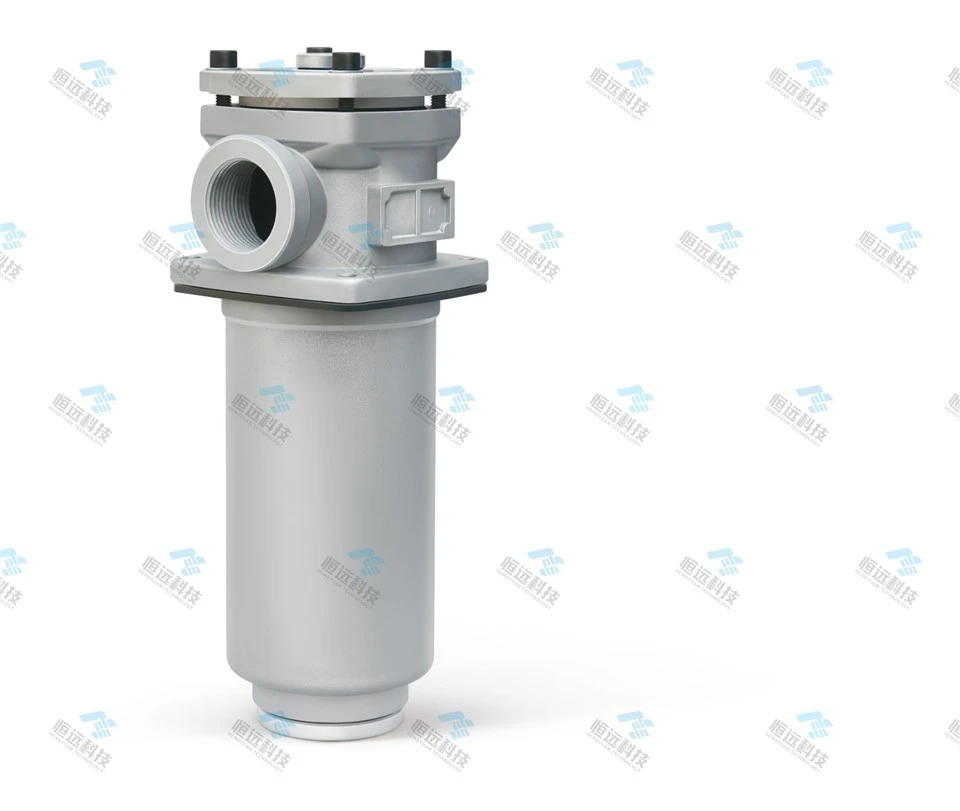

The working principle of the direct return oil filter is primarily based on its structural design and functional characteristics. This filter is typically installed on the top, side, or bottom of the hydraulic system's oil tank, with its cylinder partially submerged in the oil while the filter head protrudes outside the tank. When the oil in the hydraulic system flows back to the tank through the return oil line, it first passes through the filter element of the filter for purification.
Filtration Process: The filter element effectively removes metallic particles, rubber impurities, and other contaminants from the oil, ensuring that the oil returned to the tank remains clean. The filter element is often made of glass fiber or new-type synthetic fiber materials, which boast high filtration accuracy, large oil flow capacity, low pressure loss, and large dirt-holding capacity.
Protection Mechanism: When the filter element becomes clogged to a certain extent or factors such as low system oil temperature or flow pulsation cause an increase in inlet pressure, the filter triggers its protection mechanism. At this point, the filter element clogging indicator sends a signal, prompting operators to replace the filter element or increase the oil temperature. If immediate shutdown is not feasible, a bypass valve automatically opens, allowing oil to bypass the clogged filter element and continue flowing, thereby protecting the filter and the normal operation of the hydraulic system.
Oil Flow Diffusion: The filter is also equipped with an oil flow diffuser, which enables the returning oil to flow smoothly into the tank, reducing bubble formation and air re-entry into the tank. Simultaneously, it mitigates the agitation of deposited contaminants, contributing to the cleanliness and stability of the oil.
Application Scenarios
Due to its efficient filtration and reliable protection mechanisms, the direct return oil filter is widely used in various hydraulic systems and industrial production equipment:
General Hydraulic Systems: Used to remove impurities, particles, and metal shavings from the oil, ensuring its cleanliness during circulation.
High-Precision Hydraulic Systems: For systems with stringent requirements on oil cleanliness, the direct return oil filter provides a higher level of filtration accuracy to meet the system's stringent quality standards.
Machine Tool Equipment: In machine tools, it filters the return oil of the hydraulic system, protecting hydraulic components from impurity damage and extending equipment life.
Construction Machinery: For equipment like excavators and loaders, whose hydraulic systems operate in harsh environments prone to oil contamination, the direct return oil filter effectively filters impurities, enhancing reliability and stability.
Wind Power Industry: In the hydraulic systems of wind turbines, it filters the lubricating oil of transmission components like gearboxes, safeguarding them from contamination and ensuring the normal operation of wind turbines.
Metallurgical Industry: In metallurgical equipment such as rolling mills and continuous casting machines, whose hydraulic systems demand high oil cleanliness, the direct return oil filter filters impurities and particles, protecting equipment from wear and failures.
In summary, the direct return oil filter, with its characteristics of efficient filtration, reliable protection, and wide applicability, plays a crucial role in hydraulic systems and industrial production equipment.
