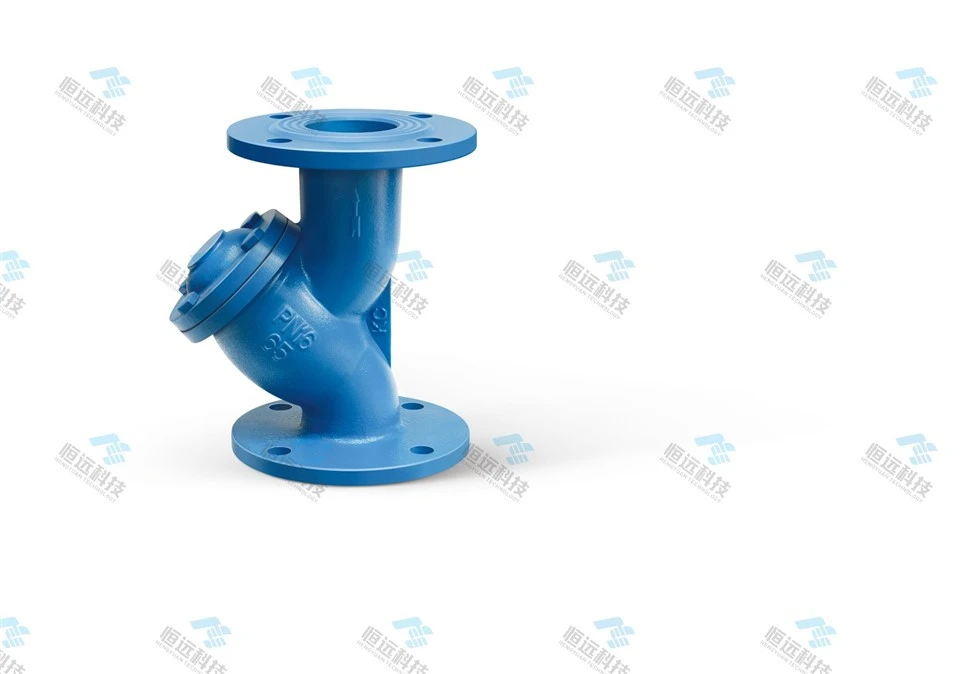

The Y-type pipeline filter, also known as the Y-filter, is an indispensable filtration device in pipeline systems for conveying media. It primarily consists of a valve body, filter screen, cover plate, bolts, and other components. Its main structure is shaped like the letter "Y," hence its name. The following provides a detailed introduction to the materials and technical parameters of the Y-type pipeline filter:
Materials:
Body Material: Common body materials include carbon steel and stainless steel, which possess excellent corrosion resistance and mechanical strength, enabling them to adapt to various working environments.
Filter Screen Material: The filter screen is typically made of stainless steel due to its superior corrosion resistance and filtration performance, ensuring effective filtration while prolonging service life.
Seal Material: Depending on the working medium, seal materials can be selected from nitrile rubber, polytetrafluoroethylene (PTFE), oil-resistant asbestos rubber, etc., to ensure sealing effectiveness and prevent media leakage.
Technical Parameters:
Nominal Diameter (DN): Indicates the range of pipe diameters that the filter can handle, typically ranging from DN15 to DN600mm or larger.
Nominal Pressure: Represents the range of working pressures that the filter can withstand, generally between 1.6 and 10Mpa (or designed according to user requirements).
Operating Temperature: Indicates the temperature range within which the filter can operate normally, typically not exceeding 90°C (although some filters made of special materials can withstand higher temperatures).
Filtration Accuracy: Measures the filter's filtration capability, usually expressed in mesh size (mesh) or microns (μm). Commonly, water screens range from 18 to 30 mesh, air screens from 40 to 100 mesh, and oil screens from 100 to 480 mesh.
Connection Type: The most common connection type is flanged, but some products also employ threaded or other connection methods.
Other Parameters: Additional parameters such as dimensions (length, width, height), weight, and suitable materials may also be specified in the product description.
It is important to note that technical parameters may vary between Y-type pipeline filters produced by different manufacturers. Therefore, when selecting and using these filters, it is crucial to consider specific requirements.
