Our Products
Products description

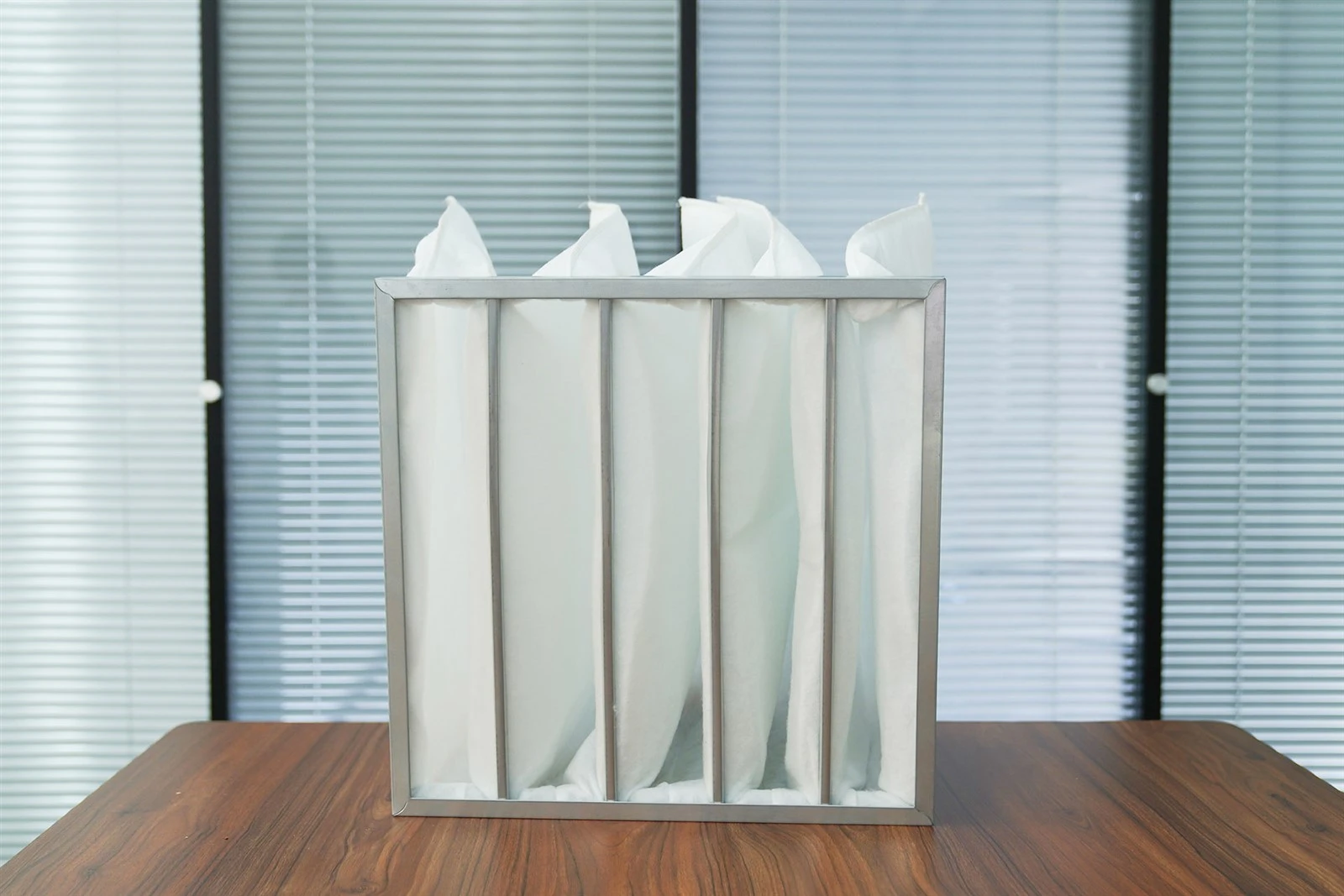

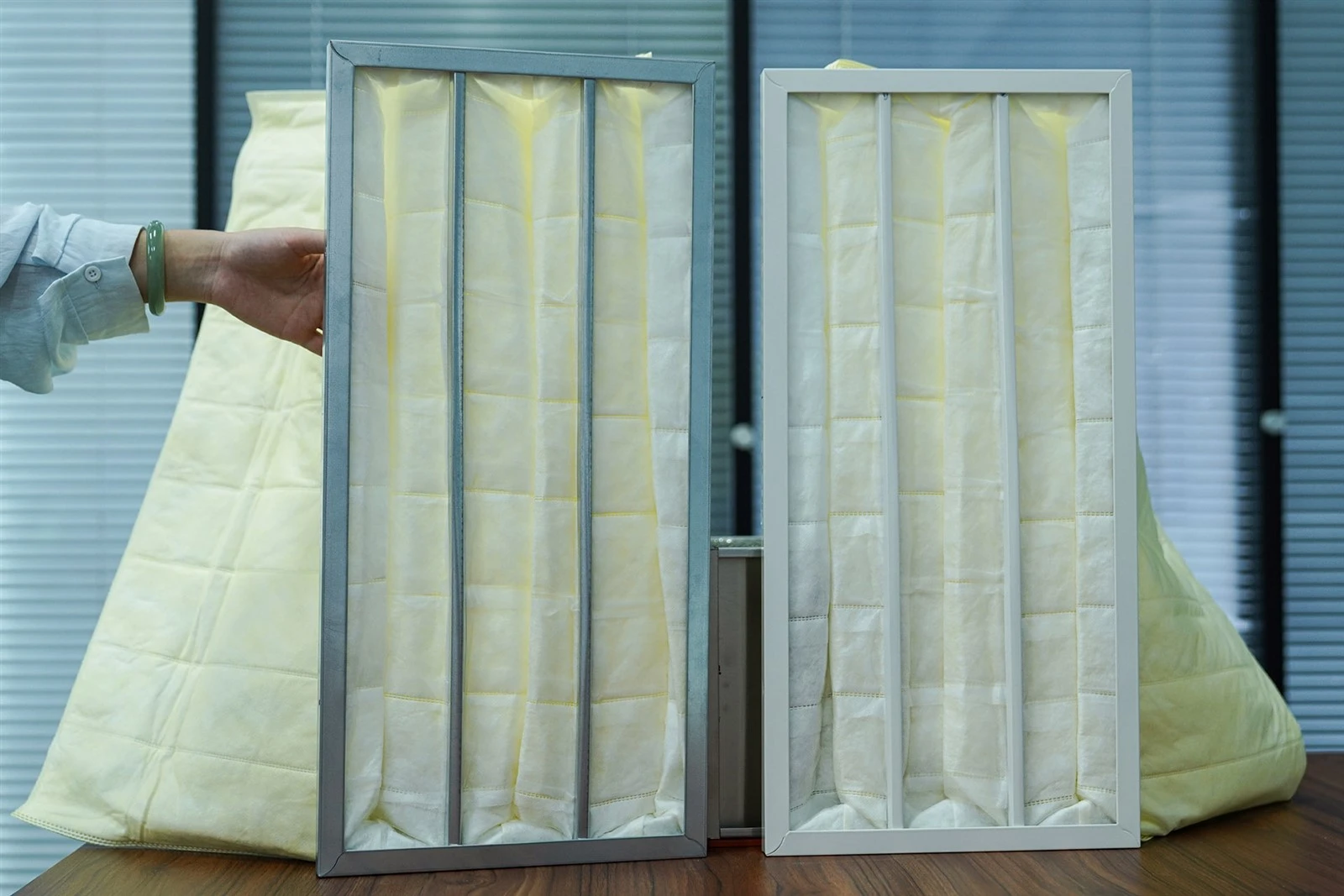

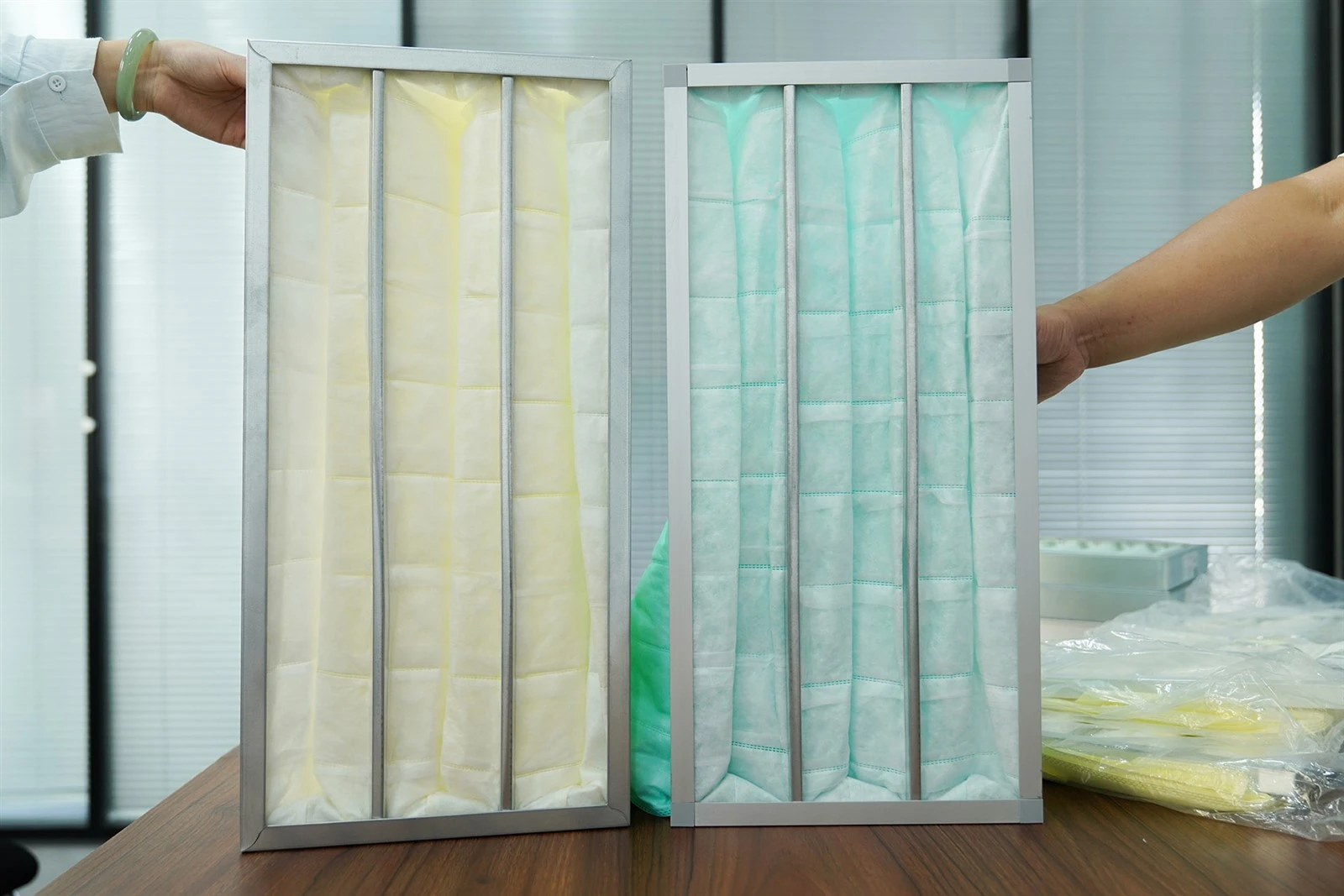

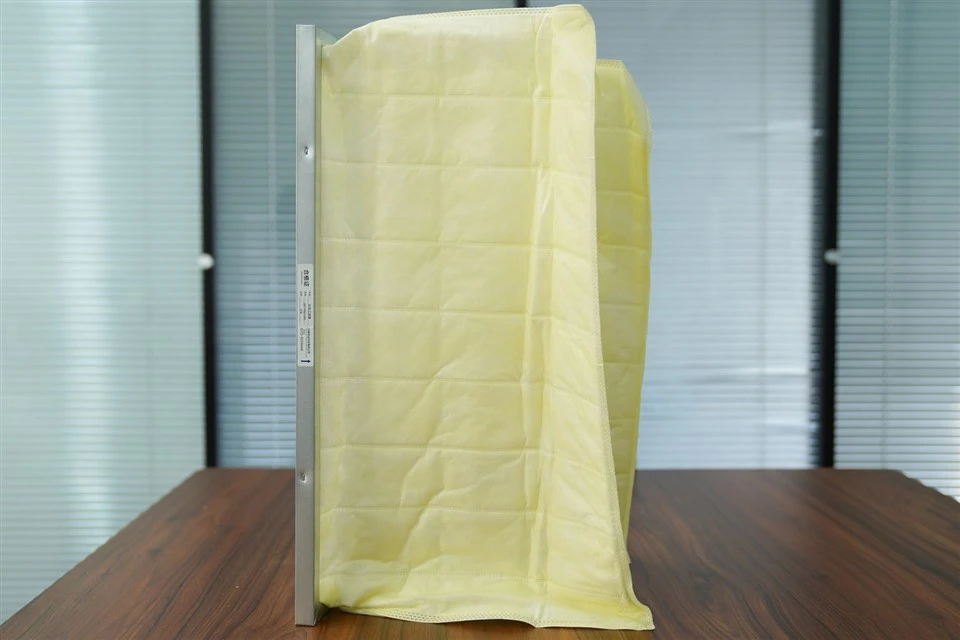

Here is a detailed analysis of Air Bag (pocket-type) MERV9, MERV11, MERV13, and MERV14 fiberglass filters (Pocket Dust Filters) from multiple dimensions:
Meaning of MERV Ratings
MERV (Minimum Efficiency Reporting Value) is a standard established by the American Society of Heating, Refrigerating, and Air-Conditioning Engineers (ASHRAE) to measure the efficiency of air filters in capturing particulate matter. The higher the MERV value, the higher the filtration efficiency, and the smaller the particles it can capture.
MERV 9:
Captures approximately 85% of particles ranging from 3.0 to 10.0 microns (such as pollen, dust, and pet hair).
Suitable for environments with low air quality requirements, such as general offices and warehouses.
MERV 11:
Captures approximately 90% of particles ranging from 1.0 to 3.0 microns (such as mold spores, smoke, and some bacteria).
Suitable for environments with moderate air quality requirements, such as schools and general hospital areas.
MERV 13:
Captures approximately 95% of particles ranging from 0.3 to 1.0 microns (such as smoke, virus carriers, and some ultra-fine dust).
Suitable for environments with high air quality requirements, such as hospital operating rooms, laboratories, and cleanrooms.
MERV 14:
Captures approximately 98% of particles ranging from 0.3 to 1.0 microns, with even higher filtration efficiency for smaller particles (such as some viruses).
Suitable for environments with extremely high air quality requirements, such as advanced cleanrooms and biosafety laboratories.
Characteristics of Fiberglass Filters
Material:
Made of glass fibers, offering high filtration efficiency and heat resistance.
Structure:
The pocket-type (Pocket) design increases the filtration area, reduces air resistance, and extends the service life.
Advantages:
High Efficiency Filtration: Effectively captures microscopic particulate matter.
Low Resistance: The pocket-type design reduces air resistance during passage, lowering energy consumption.
Long Lifespan: Compared to ordinary filters, fiberglass filters have a longer service life.
Heat Resistance: Suitable for high-temperature environments.
Disadvantages:
High Cost: Compared to ordinary filters, fiberglass filters are more expensive.
Professional Maintenance Required: Care must be taken during replacement to avoid fiber fragments entering the air system.
Application Scenario Recommendations
MERV 9:
Suitable for environments with low air quality requirements, such as general offices, warehouses, and non-clean areas in factories.
MERV 11:
Suitable for environments with moderate air quality requirements, such as schools, general hospital areas, and shopping malls.
MERV 13:
Suitable for environments with high air quality requirements, such as hospital operating rooms, laboratories, cleanrooms, and electronics factories.
MERV 14:
Suitable for environments with extremely high air quality requirements, such as advanced cleanrooms, biosafety laboratories, and pharmaceutical factories.
Selection Recommendations
Select Based on Needs:
Choose the appropriate MERV rating according to the air quality requirements, budget, and maintenance capabilities of the site.
Consider System Compatibility:
Ensure that the selected filter matches the dimensions and airflow of the air handling system.
Regular Replacement:
Even if the filter has a long lifespan, it should be regularly inspected and replaced to maintain filtration efficiency and system performance.
Summary
MERV 9: Low cost, suitable for general environments.
MERV 11: Balances filtration efficiency and cost, suitable for moderately demanding environments.
MERV 13: High-efficiency filtration, suitable for high-demand environments.
MERV 14: Ultra-high-efficiency filtration, suitable for extremely demanding environments.
Fiberglass filters (especially pocket-type designs) offer significant advantages in high-efficiency filtration and low resistance, but selection should be based on actual needs and budget.
Why choose us
Advanced equipment
We adopt advanced equipment and instruments to implement standardized management
7*24-hour after-sales service
We offer 7*24-hour after-sales service to ensure customer satisfaction with our products.
Customized as needed
We can customize filters of different specifications and models according to user requirements.
Our factory & quipment
