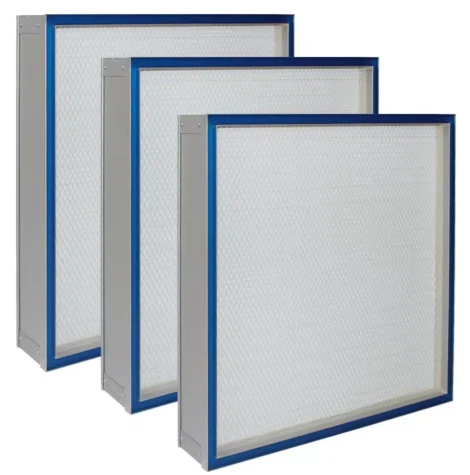

Liquid Tank Type High Efficiency Air Filter (H14 Low Resistance for Cleanroom Class 100 Laminar Flow Hood Terminal Filtration)
Products Description
The Liquid Tank Type High Efficiency Air Filter (H14) is a high-performance solution for cleanrooms and Class 100 laminar flow hoods, featuring ≥99.995% filtration efficiency, ≤250Pa resistance, liquid tank sealing, and customizable models.
Performance and characteristics:
Structural Design
The Liquid Tank Type High Efficiency Air Filter features a specialized liquid tank sealing structure, ensuring excellent airtightness. Its design allows for convenient installation and reliable sealing performance, making it a perfect fit for terminal filtration in cleanrooms and laminar flow hoods.
Function and Performance
This filter delivers high efficiency (H14 level, ≥99.995% @ 0.3μm) with low initial resistance (≤250Pa), achieving an optimal balance between purification performance and energy efficiency. It also boasts low operating costs and large dust-holding capacity, ensuring long-term stable operation in demanding cleanroom environments.
4. Application Scenarios
It is widely applicable for the installation of high-efficiency filters in cleanrooms with high requirements, large areas of vertical laminar flow, and Class 100 laminar flow hoods. It serves as an ideal terminal filter for industrial cleanrooms, biological cleanrooms, and a matching filter for other purification equipment.
Model, Size and Technical Parameters
| Filter model | Overall dimensions (mm) | Rated air flow (m³/h) | Initial resistance (Pa) | Filter area (m²) |
|---|---|---|---|---|
| HYW-5Y | 343×343×90 | 500 | ≤250 | 4.1 |
| HYW-10Y | 500×500×90 | 1000 | ≤250 | 9.2 |
| HYW-15Y | 650×650×90 | 1500 | ≤250 | 7.99 |
| HYW-20Y | 980×500×90 | 2000 | ≤250 | 18.6 |
Note: Different specifications and models can be customized according to user requirements.
