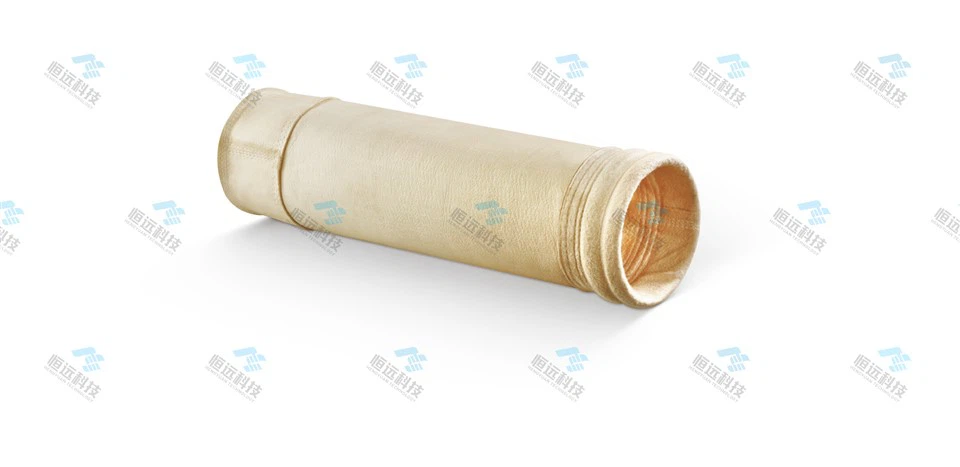

Here's a detailed overview of Corrosion-Resistant High-Temperature Filter Bags with PTFE Dust Filtration, covering their features, benefits, applications, and key considerations:
1. Key Features
PTFE (Polytetrafluoroethylene) Membrane:
Chemical Resistance: PTFE is inert to most acids, alkalis, and organic solvents, making it ideal for corrosive environments.
High-Temperature Tolerance: Withstands continuous operating temperatures up to 260°C (500°F) and short-term spikes to 280°C (536°F).
Low Surface Energy: PTFE's non-stick properties prevent dust adhesion, reducing clogging and improving airflow.
High-Temperature Base Fabric:
Typically made of fiberglass, P84 (polyimide), or Nomex® for thermal stability and structural integrity.
Reinforced with PTFE coating or lamination to enhance durability.
Efficient Dust Filtration:
Captures fine particulate matter (PM2.5, PM10) with 99.9%+ efficiency (down to 0.3 microns).
Suitable for high-dust-load applications (e.g., cement, steel, incineration).
Mechanical Strength:
High tensile strength and abrasion resistance for long-term use in harsh conditions.
Resistant to hydrolysis (moisture degradation) in humid environments.
2. Core Benefits
Long Service Life:
PTFE's chemical and thermal stability extends filter life by 2–3x compared to standard polyester or acrylic bags.
Reduces replacement frequency and maintenance costs.
Energy Efficiency:
Low pressure drop (ΔP) minimizes fan/blower energy consumption.
Smooth PTFE surface enables easy pulse-jet cleaning, maintaining optimal airflow.
Environmental Compliance:
Meets strict emission standards (e.g., EPA, EU Industrial Emissions Directive).
Reduces particulate emissions by up to 99.99%.
Safety:
Prevents filter bag failure due to corrosion or thermal degradation, avoiding costly downtime.
3. Applications
Industrial Processes:
Cement Plants: Filtration of clinker cooler exhaust, kiln feed, and cement mill dust.
Steel Mills: Blast furnace gas, sinter plant, and electric arc furnace (EAF) dust collection.
Waste Incineration: Flue gas treatment for municipal solid waste (MSW) and hazardous waste.
Chemical Processing: Handling corrosive gases in fertilizer, petrochemical, and pharmaceutical plants.
Power Generation:
Coal-fired boilers, biomass boilers, and gas turbines for fly ash and particulate control.
Food & Pharmaceuticals:
High-temperature sterilization processes where cleanliness and chemical resistance are critical.
4. Technical Specifications (Example)
| Parameter | Details |
|---|---|
| Material | PTFE membrane + fiberglass/P84 base fabric |
| Temperature Range | Continuous: -70°C to +260°C (-94°F to +500°F) |
| Chemical Resistance | Resistant to acids, alkalis, solvents, oxidizers |
| Filtration Efficiency | 99.9%+ for 0.3–10 micron particles |
| Air Permeability | 8–15 m³/m²/min (at 12.7 mm H₂O pressure drop) |
| Tensile Strength | Warp: ≥1,800 N/5cm; Weft: ≥1,500 N/5cm |
| Abrasion Resistance | Excellent (PTFE coating protects base fabric) |
5. Why Choose PTFE Filter Bags?
Superior Corrosion Resistance: Unlike polyester or acrylic, PTFE does not degrade in acidic or alkaline environments.
High-Temperature Stability: Outperforms Nomex® (200°C) and P84 (240°C) in extreme heat.
Low Maintenance: Self-cleaning PTFE surface reduces downtime for manual cleaning.
Cost-Effective Long-Term: Higher upfront cost offset by extended lifespan and energy savings.
6. Installation & Maintenance Tips
Proper Sizing: Ensure filter bags match the dust collector's dimensions to avoid leaks.
Pre-Installation Inspection: Check for defects in seams, membranes, or hardware.
Pulse-Jet Cleaning: Optimize cleaning cycles (frequency/pressure) to prevent over-compression.
Storage: Store in a dry, cool place away from direct sunlight and chemicals.
7. Comparison with Alternatives
| Filter Type | Max Temp | Chemical Resistance | Cost | Lifespan |
|---|---|---|---|---|
| PTFE | 260°C | Excellent | High | Long |
| P84 Polyimide | 240°C | Good (weak in acids) | Moderate-High | Moderate |
| Fiberglass | 280°C | Poor (hydrolysis risk) | Low-Moderate | Short |
| Nomex® | 200°C | Fair (weak in alkalis) | Moderate | Moderate |
8. Customization Options
Membrane Thickness: Adjustable for trade-offs between efficiency and airflow.
Base Fabric: Fiberglass (cost-effective) vs. P84 (higher efficiency).
Finishing: Singed, glazed, or anti-static treatments for specific applications.
For optimal performance, consult with a filter manufacturer to select the right PTFE filter bag for your process conditions (temperature, chemistry, dust load). These filters are a premium solution for industries demanding reliability under extreme conditions.
