Customizing an air purifier filter cartridge to effectively capture dust, pollen, dander, and other common indoor pollutants requires a multi-stage filtration approach tailored to specific particle sizes and air quality needs. Below is a structured guide to designing a high-performance, customized filter cartridge:
1. Core Filtration Stages
A well-designed cartridge typically includes 3–4 layers to target different pollutants efficiently:
A. Pre-Filter (Coarse Particle Capture)
Purpose: Trap large particles (≥5–10 microns) like dust, hair, and lint to extend the life of finer filters.
Material Options:
Washable foam or nylon mesh (reusable, cost-effective).
Disposable synthetic fiber (higher efficiency, low pressure drop).
Customization:
Adjust pleat density or thickness based on expected dust load.
Add antimicrobial coating to inhibit mold/bacteria growth.
B. True HEPA Filter (Fine Particle Capture)
Purpose: Remove 99.97% of particles ≥0.3 microns, including pollen, pet dander, mold spores, and some bacteria.
Material Options:
Glass fiber HEPA media (standard for medical-grade filtration).
Synthetic HEPA-grade fiber (lighter, moisture-resistant).
Customization:
Pleat design: Deep pleats increase surface area (e.g., 50–100 pleats per cartridge).
Sealant: Urethane or silicone gaskets to prevent air bypass.
Frame: Rigid plastic or metal for structural integrity.
C. Activated Carbon Filter (Gas/Odor Removal)
Purpose: Adsorb volatile organic compounds (VOCs), smoke, and odors (e.g., from cooking or pets).
Material Options:
Granular activated carbon (GAC): High surface area for gas capture.
Carbon-impregnated foam: Combines particulate and gas filtration.
Customization:
Carbon weight: 100–500g per cartridge (higher = better odor removal).
Pore size: 10–15 Å (angstroms) for optimal VOC adsorption.
D. Optional Enhanced Layers (For Specialized Needs)
Antimicrobial Layer: Silver-ion or copper-infused fabric to kill bacteria/viruses.
Photocatalytic Oxidation (PCO): Titanium dioxide-coated mesh to break down VOCs under UV light.
Electrostatic Layer: Self-charging fibers to attract ultra-fine particles (e.g., PM0.1).
2. Key Customization Parameters
To tailor the filter cartridge to specific environments, consider:
| Parameter | Options | Impact |
|---|---|---|
| Filter Efficiency | MERV 8–13, HEPA, or ULPA | Higher MERV/HEPA = better particle capture but higher pressure drop. |
| Airflow Resistance | Low (≤0.5" w.g.) or high (≥1" w.g.) | Lower resistance = quieter operation but may reduce filtration efficiency. |
| Size/Shape | Cylindrical, rectangular, or custom | Must fit the purifier's housing precisely. |
| Lifespan | 3–12 months (depending on use) | Longer lifespan reduces replacement costs but may sacrifice some efficiency. |
| Certifications | AHAM, ENERGY STAR, or CADR ratings | Ensures performance claims are verified. |
3. Target Pollutants & Filtration Strategies
| Pollutant | Size Range | Best Filtration Method |
|---|---|---|
| Dust | 1–100 microns | Pre-filter + HEPA |
| Pollen | 10–100 microns | HEPA (some pollen may require MERV 12+) |
| Pet Dander | 2.5–10 microns | HEPA + antimicrobial coating |
| Mold Spores | 2–20 microns | HEPA + activated carbon (to prevent regrowth) |
| VOCs/Odors | <0.001 microns | Activated carbon or PCO |
| Bacteria/Viruses | 0.01–5 microns | HEPA + antimicrobial layer or UV sterilization |
4. Example Custom Filter Cartridge Design
Application: Home air purifier for allergy sufferers (pet owners).
Design:
Pre-Filter: Washable nylon mesh (removable for easy cleaning).
HEPA Layer: Glass fiber HEPA with 80 pleats, MERV 16 rating.

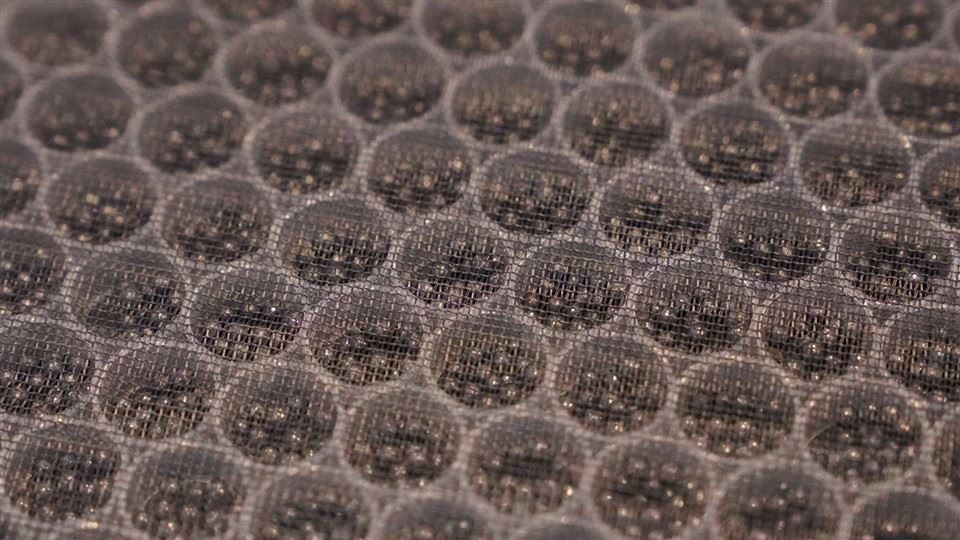

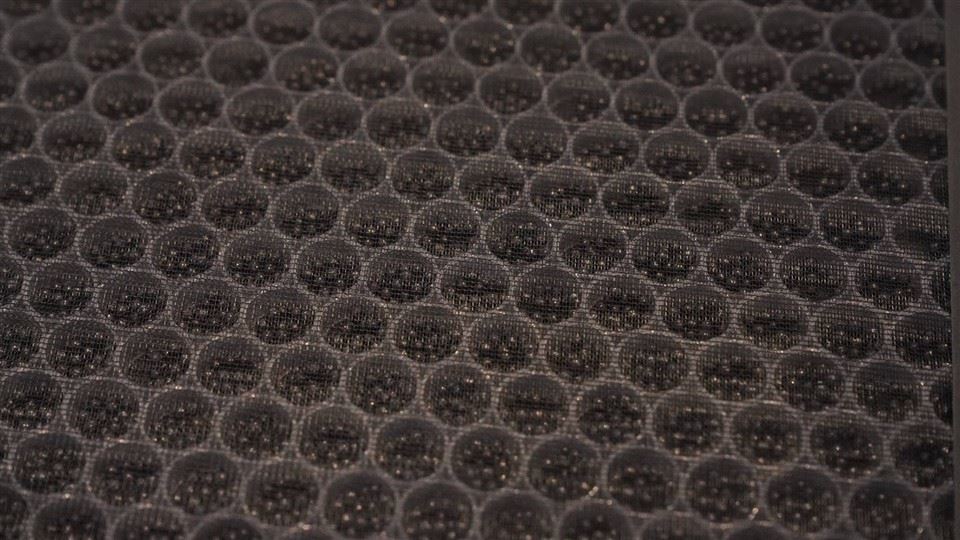

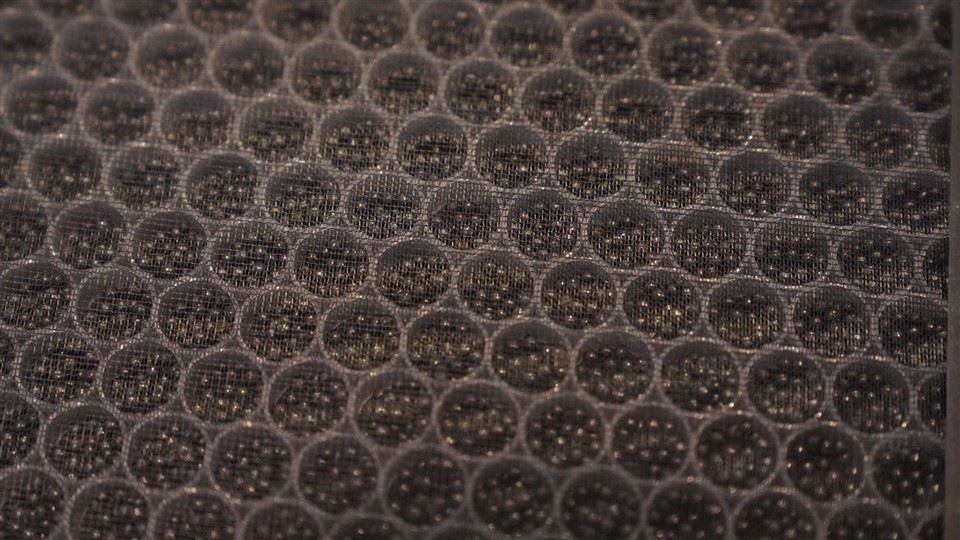

Carbon Layer: 200g granular activated carbon in a honeycomb structure.
Antimicrobial Coating: Silver ions on the HEPA frame to inhibit mold.
Performance:
CADR (Smoke/Dust/Pollen): 350/400/420 cfm.
Noise Level: <50 dB (quiet operation).
Lifespan: 6–8 months (based on 24/7 use).
5. Manufacturing Considerations
Material Sourcing: Use FDA-approved or eco-friendly materials (e.g., biodegradable carbon).
Prototyping: Test airflow resistance and particle capture efficiency in a lab before mass production.
Packaging: Vacuum-seal filters to prevent contamination during shipping.
Conclusion
A customized air purifier filter cartridge should balance efficiency, airflow, and cost while addressing specific pollutants. By combining a pre-filter, HEPA media, activated carbon, and optional enhancements (e.g., antimicrobial coatings), you can create a solution that improves indoor air quality for allergy sufferers, pet owners, or general residential use.
