A high-efficiency HEPA fiberglass paper V-bank filter (F7–F9 grades) is an advanced air filtration solution designed for agricultural and industrial settings where fine dust control, energy efficiency, and air quality are critical. Below is a detailed breakdown of its features, applications, and benefits for farm air handling units (AHUs):
1. Key Components & Technology
HEPA-Grade Fiberglass Paper Media:
Micro-glass fibers create a dense, tortuous path for particles, achieving 99.97% efficiency for 0.3μm particles (HEPA) or F7–F9 efficiency (ePM1 60–95%) under EN 1822 standards.
Electrostatically charged for enhanced particle capture without significant pressure drop.

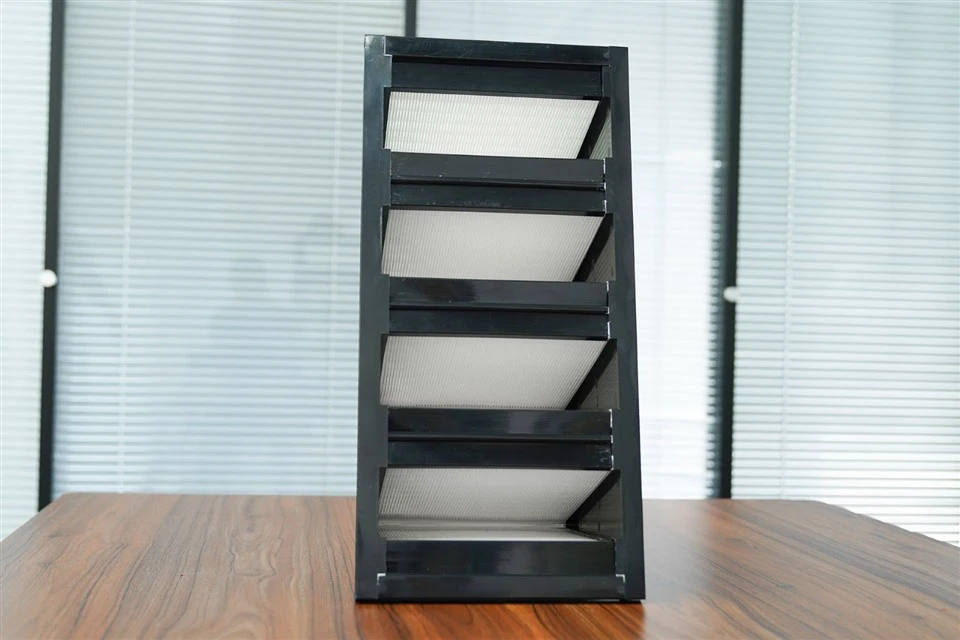

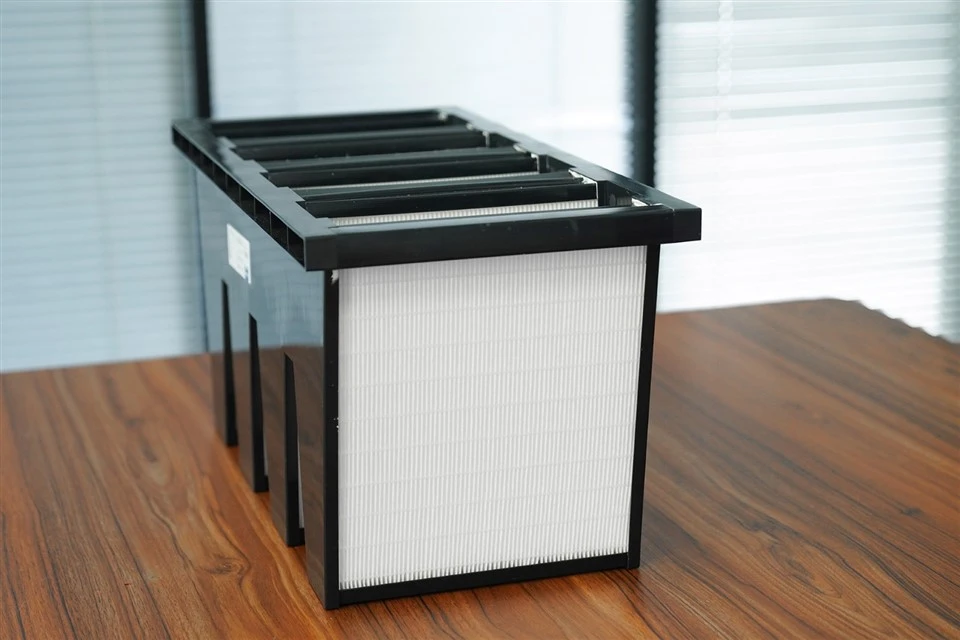

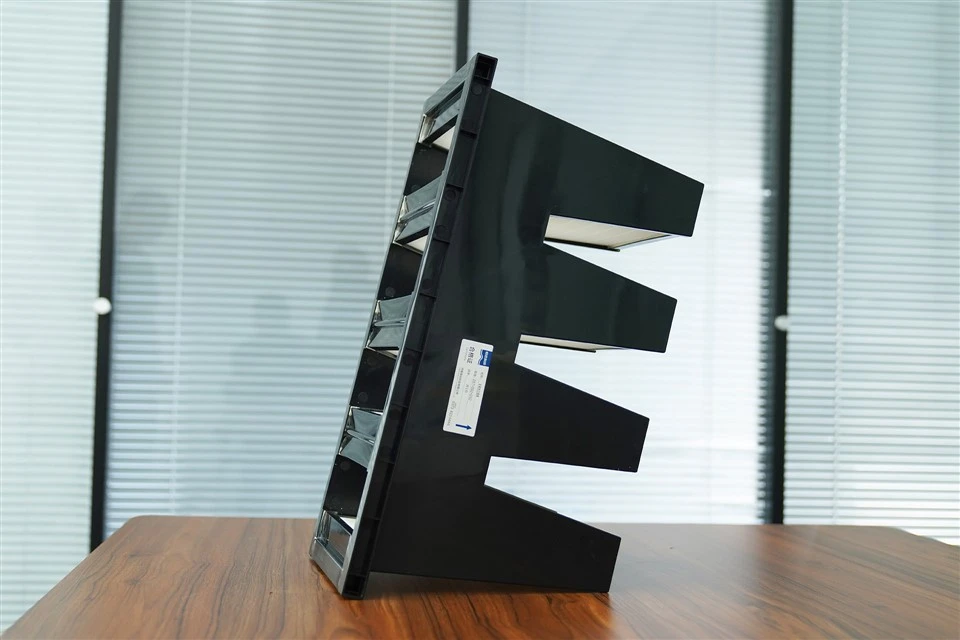

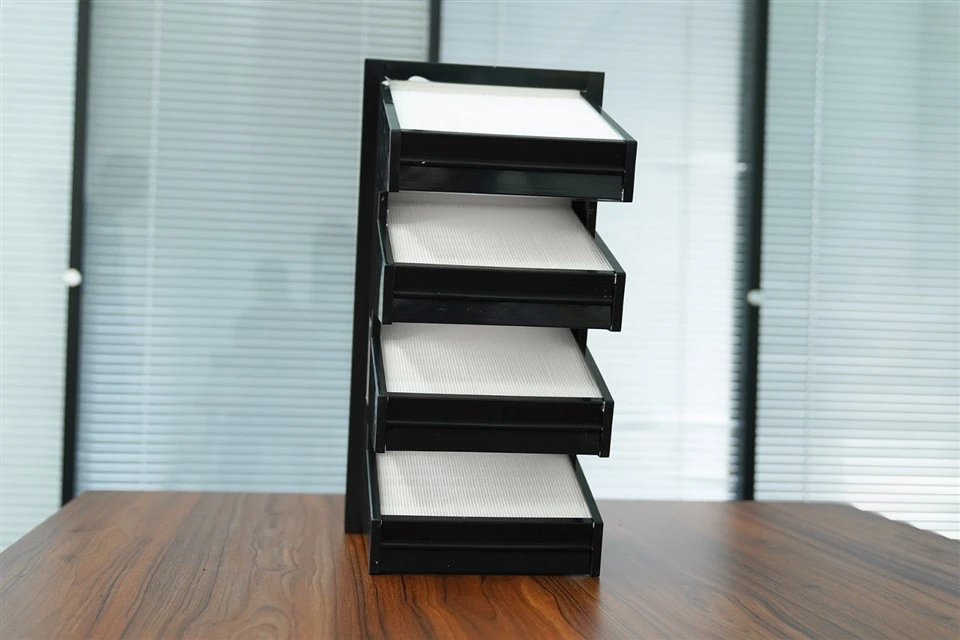

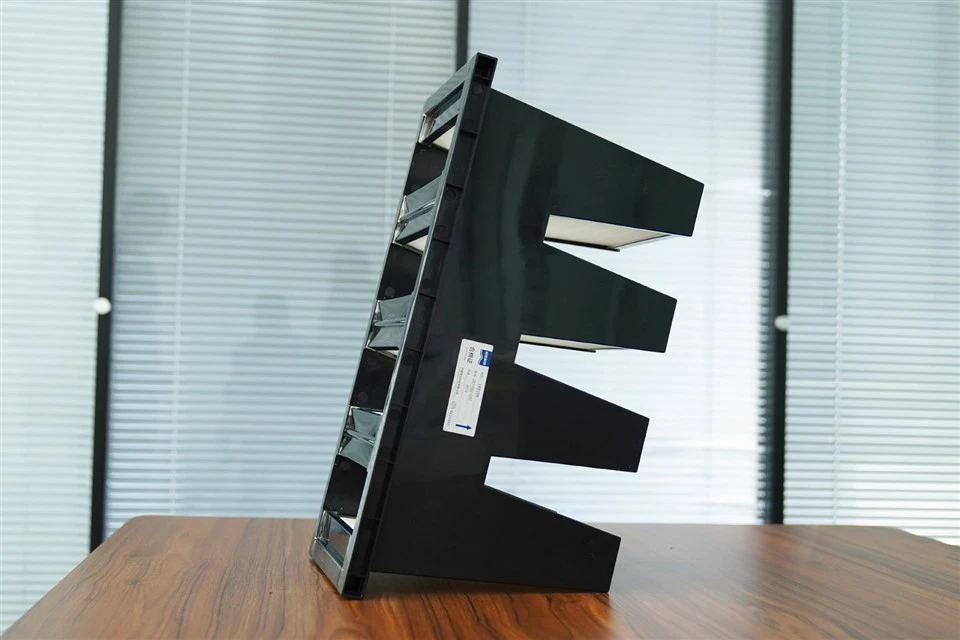

V-Bank Design:
Corrugated aluminum separators form a V-shaped pleat structure, increasing media area by 50–70% compared to flat-panel filters.
Reduces airflow resistance and extends filter life.
Frame Options:
Galvanized steel, aluminum, or moisture-resistant cardboard for durability in humid farm environments.
2. Filtration Efficiency Grades (F7–F9)
| Grade | EN 1822 Classification | Efficiency (ePM1) | Typical Applications |
|---|---|---|---|
| F7 | ePM1 60% | 60–65% | Pre-filtration for coarse dust |
| F8 | ePM1 80% | 80–85% | General farm ventilation, livestock barns |
| F9 | ePM1 95% | 95% | Critical areas (e.g., seed processing, dairy parlors) |
Note: For true HEPA (H13–H14), efficiency reaches 99.97–99.995% for 0.3μm particles.
3. Applications in Farm Air Handling Units (AHUs)
Livestock Barns (Poultry, Swine, Dairy):
Removes ammonia, dust, and airborne pathogens (e.g., bacteria, viruses) to improve animal health and reduce respiratory issues.
Crop Storage & Processing:
Filters fine particulates from grain dust, seed handling, or flour milling to prevent explosions and maintain product quality.
Greenhouses:
Controls pollen, mold spores, and pesticide residues to optimize plant growth conditions.
Seed Cleaning Facilities:
Captures chaff and debris during seed sorting, protecting downstream equipment.
Farm Offices & Living Quarters:
Provides clean air for occupants, reducing allergens and odors.
4. Advantages Over Standard Filters
Higher Efficiency:
F7–F9 filters capture 95%+ of fine dust (PM2.5), compared to 30–50% for basic panel filters.
Longer Service Life:
V-bank design distributes dust evenly, preventing premature clogging.
Energy Efficiency:
Low pressure drop (typically 20–50 Pa at rated flow) reduces fan energy consumption by 15–30% vs. bag filters.
Compact Design:
Fits standard AHU housings while offering 2–3x more media area than flat filters.
Cost-Effective:
Balances upfront cost with lower total ownership costs (extended lifespan, reduced maintenance).
5. Technical Specifications
| Parameter | Details |
|---|---|
| Media | Wet-laid fiberglass paper with acrylic binder |
| Frame | Galvanized steel/aluminum (optional moisture-resistant cardboard) |
| Pleat Design | V-shape with aluminum separators |
| Efficiency | F7 (60%), F8 (80%), F9 (95%) ePM1 |
| Temperature Range | -40°C to +80°C (continuous) |
| Humidity Resistance | Up to 100% RH (non-condensing) |
| Final Pressure Drop | 450 Pa (replace at this point) |
| Dimensions | Customizable (common: 592x592x292mm) |
6. Installation & Maintenance Tips
Pre-Filtration:
Use a G4–M5 pre-filter to extend the life of F7–F9 filters by capturing larger particles.
Sealing:
Ensure gaskets are intact to prevent bypass air leakage.
Monitoring:
Track pressure drop across the filter bank using manometers or differential pressure sensors.
Replacement:
Change filters when pressure drop reaches 400–450 Pa or as recommended by the manufacturer.
Disposal:
Follow local regulations for hazardous dust (e.g., grain dust may require special handling).
7. Why Choose V-Bank Filters for Farm AHUs?
Agricultural environments face high dust loads, corrosive gases (e.g., ammonia), and variable humidity, which degrade standard filters quickly. V-bank filters offer:
Robust construction to withstand harsh conditions.
High efficiency for protecting animals, crops, and equipment.
Energy savings through low pressure drop, critical for cost-sensitive farm operations.
8. Alternative Options
For True HEPA Needs: Upgrade to H13–H14 V-bank filters (e.g., for biosecurity-sensitive areas like hatcheries).
For High Moisture: Use synthetic media filters (polyester/polypropylene) if condensation is a concern.
For optimal performance, pair with variable-speed fans to adjust airflow based on filter condition and seasonal demands.
