Product Features
High-Efficiency Filtration: The bag-type filter, with its unique bag structure, ensures even airflow throughout the entire bag, thereby enhancing filtration efficiency.
Large Dust Holding Capacity: Due to the large frontal area of the bag-type filter, it boasts a relatively large dust holding capacity.
Low Resistance: The design of the bag-type filter minimizes resistance to airflow, thus decreasing system energy consumption and operational costs.

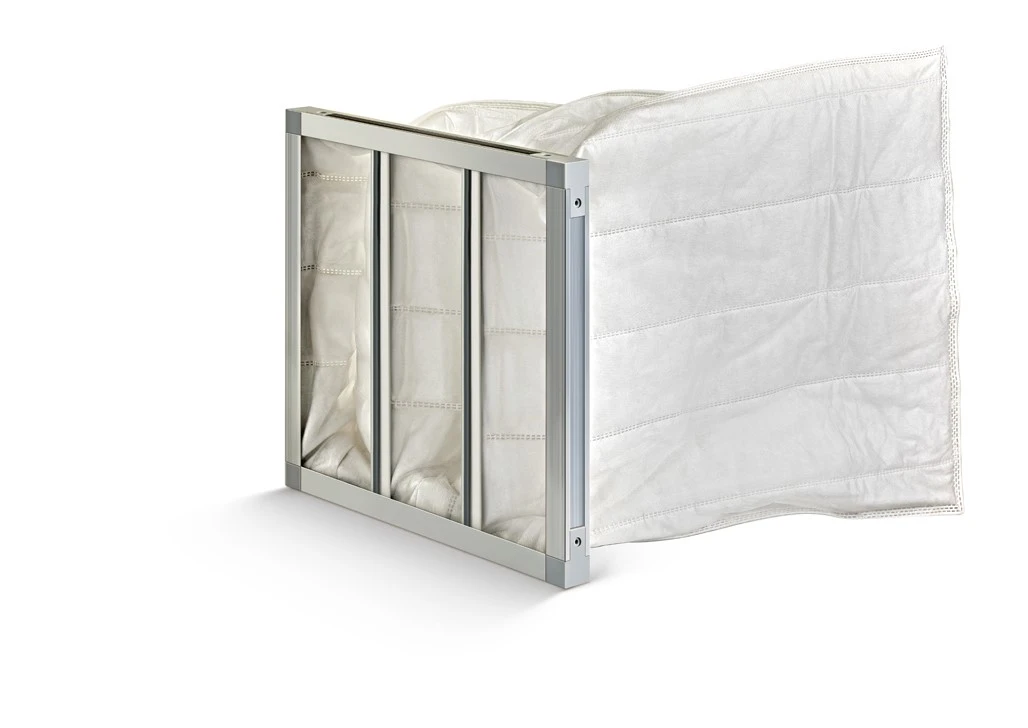

Strong Durability: The HDC-5/6 bag-type air filter employs a robust frame and support structure that can withstand significant airflow impacts and vibrations.
Easy Replacement: The filter bags of the bag-type filter can be replaced individually without the need to replace the entire filter, significantly reducing maintenance costs and time.
Application Scope
- Central Air Conditioning and Centralized Air Supply Systems: Serving as a medium-efficiency filter, it protects downstream filters and the system itself, ensuring the quality of supplied air.
- Pharmaceutical Industry: In air purification systems within pharmaceutical workshops, the HDC-5/6 bag-type air filter effectively removes dust and microorganisms from the air, ensuring the cleanliness of the drug production environment.
- Hospitals: In high-cleanliness environments such as operating rooms and ICUs, the HDC-5/6 bag-type air filter provides consistent and stable air purification results.
- Electronics Industry: In cleanrooms of electronic production workshops, it eliminates dust and fine particles from the air, ensuring the quality of electronic product manufacturing.
- Food Industry: During food processing and packaging, the HDC-5/6 bag-type air filter prevents contaminants in the air from entering the production environment, ensuring food hygiene and safety.
Model, Size And Technical Parameters
|
Filter model |
Overall dimensions (mm) |
Rated air flow (m3/h) |
Initial resistance (Pa) |
Efficiency (class) (MPPS) |
Quantity |
|
HDC/5-13 |
490*287*600mm |
1300m3/h |
50-70Pa |
F5/F6 |
5 |
|
HDC/5-22 |
490*490*600mm |
2200m3/h |
5 |
||
|
HDC/6-16 |
592*287*600mm |
1600m7h |
6 |
||
|
HDC/6-27 |
592*490*600mm |
2700m% |
6 |
||
|
HDC/8-32 |
592*592*600mm |
3200m:7h |
8 |
