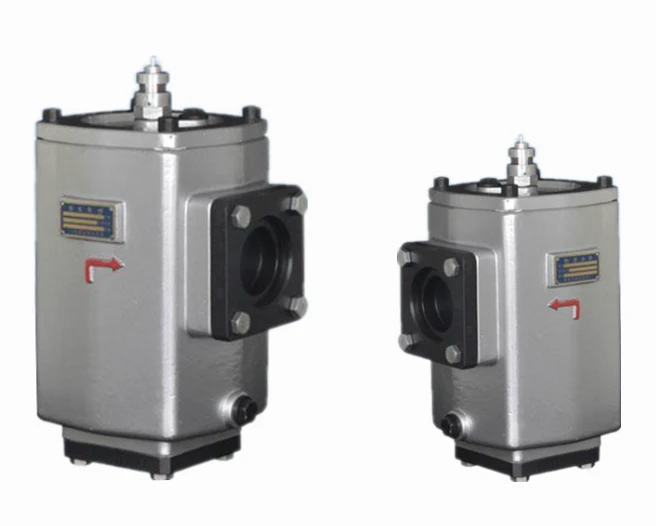

ISV Series Suction Line Filter with Visual & Electrical Indicators (Aluminum Housing)
Details
Introduction
The ISV series line suction filter is a lightweight and robust tank-mounted suction filter, composed of an aluminum alloy housing, filter element, bypass valve, visual indicator, and electrical indicator. It is designed to be vertically installed in the pipeline outside the oil tank, without affecting pipeline layout or restricting tank dimensions.
Key features include:
Visual Indicator: When the filter element is clogged by contaminants, the red signal ring in the visual indicator window rises gradually. When it reaches the top (fully red), the element must be cleaned or replaced. After maintenance, press the reset button to lower the signal ring.
Electrical Indicator: When the vacuum at the outlet reaches -0.018MPa due to clogging, the microswitch in the electrical indicator activates, sending a signal to prompt filter element replacement.
Bypass Valve: If the machine cannot be shut down immediately for maintenance, the bypass valve automatically opens at a vacuum of -0.02MPa to prevent pump cavitation and ensure system safety.
Main Features
Lightweight & Durable: Aluminum alloy housing ensures strength while reducing weight.
Flexible Installation: Vertical pipeline mounting outside the tank avoids layout constraints.
Dual Indication: Visual and electrical clogging alerts for proactive maintenance.
Bypass Protection: Prevents pump suction failure during filter blockage.
Easy Maintenance: Modular design simplifies filter element replacement.
aPPLICATION
Industrial Hydraulics: Injection molding machines, hydraulic presses, and construction machinery.
Mobile Equipment: Excavators, loaders, and cranes operating in high-dust environments.
Marine & Power Generation: Shipboard hydraulic systems and turbine lubrication circuits.
Special Fluids: Compatible with water-glycol and standard hydraulic oil media.
