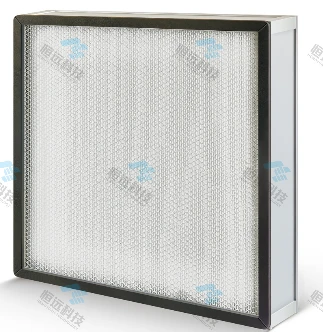

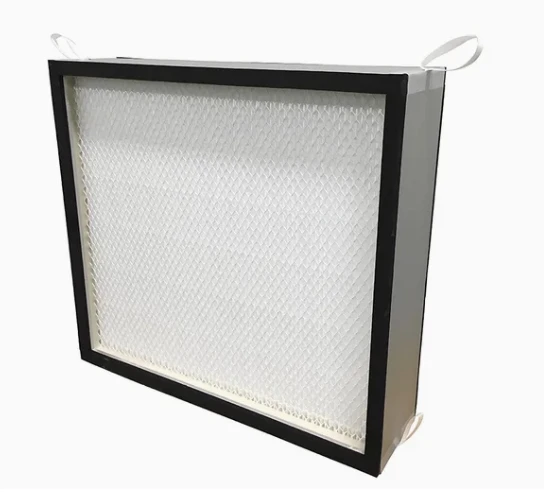

Non partition high-efficiency filter
Details
Product Features
Aluminum alloy profile outer frame, no baffle design
Compact structure, space-saving, easy installation, wide application range
Inspected one by one before delivery
Recommended maximum resistance: 600 Pa
material quality
Frame: Aluminum alloy
Protective mesh: Painted mesh
Separator: Hot-melt adhesive
Sealant: Polyurethane
Gasket: EVA, Polyurethane
Filter media: Ultra-fine glass fiber filter paper, nano-fiber membrane filter material
aPPLICATION
Semiconductor and microelectronics factories
Pharmaceutical and biotech cleanrooms
Hospital operating rooms and ICUs
Aerospace and precision component workshops
Data centers and high-tech equipment rooms
Professional laboratories and R&D centers
specifications
| Model | Size W×H×D (mm) | Efficiency % at rated air volume 0.3µm | Filter area (m²) | Rated air volume / Initial resistance (m³/Pa) |
|---|---|---|---|---|
| GW-45-3369 | 305×305×69 | 99.995% | 3.20 | 250 / 220 |
| GW-45-6369 | 610×305×69 | 99.995% | 6.38 | 400 / 220 |
| GW-45-6669 | 610×610×69 | 99.995% | 12.76 | 1000 / 220 |
| GW-45-6969 | 610×915×69 | 99.995% | 19.14 | 1500 / 220 |
| GW-45-51169 | 570×1170×69 | 99.995% | 22.87 | 1750 / 220 |
| GW-45-61269 | 610×1220×69 | 99.995% | 25.52 | 2000 / 220 |
