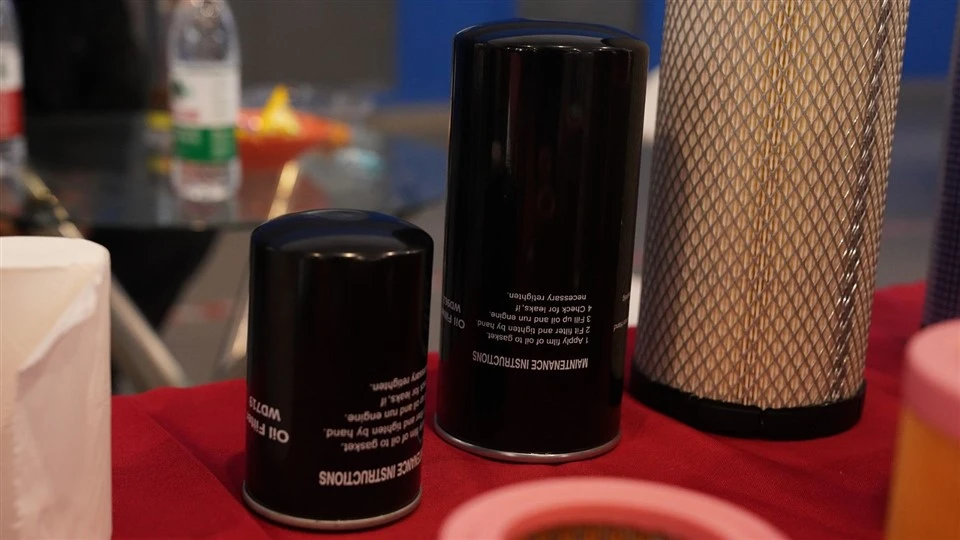

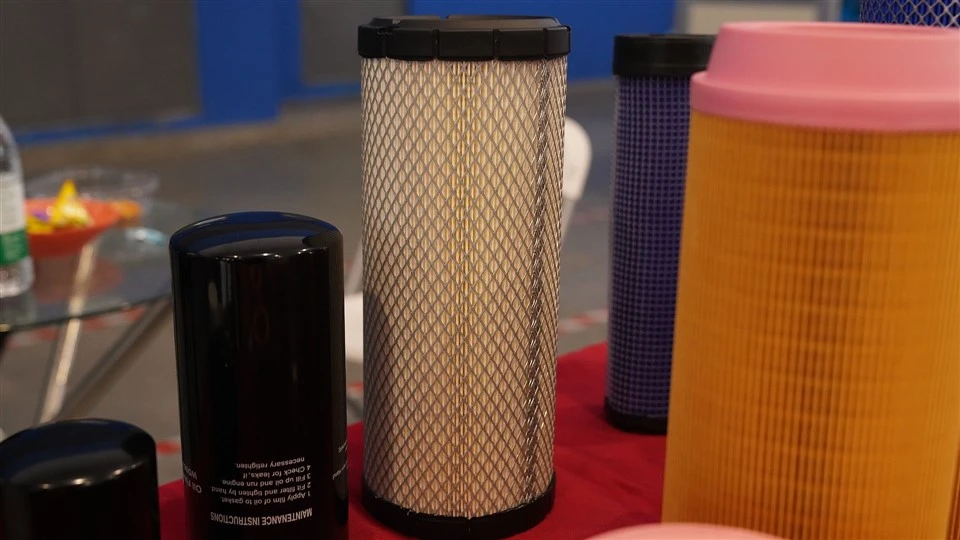

Oil Filters for Screw Compressors (螺杆压缩机油过滤器)
Core Functions and Roles
Oil filters for screw compressors are critical components in the lubricating oil circulation system, primarily responsible for the following functions:
Filtering contaminants: Intercepting impurities such as metal particles, carbon deposits, colloids, and moisture in the lubricating oil to prevent them from entering the compressor's main unit.
Protecting core components: Reducing wear on precision parts such as screw rotors, bearings, and gears caused by impurities, thereby extending equipment lifespan.
Maintaining oil cleanliness: Ensuring the long-term cleanliness of the lubricating oil to avoid performance degradation or failures due to oil deterioration.
Analogous Explanation:
The oil filter acts as the compressor's "kidney," intercepting toxins (impurities) from the bloodstream (lubricating oil) through the filter element to maintain the health of the system's "blood circulation."
Technical Features and Key Parameters
| Parameter | Description |
|---|---|
| Filtration Accuracy | Typically 10–30μm (some high-precision filter elements can reach 5μm), capable of intercepting microscopic particles. |
| Dirt-Holding Capacity | Total impurity capacity of the filter element (e.g., 50–200g), directly affecting replacement intervals. |
| Differential Pressure Characteristics | Initial differential pressure ≤0.05MPa; recommended replacement differential pressure ≤0.15MPa (excessive differential pressure risks bypass valve activation). |
| Temperature Resistance Range | Withstands high temperatures of lubricating oil (typically 80–120°C); filter media must resist high-temperature oxidation. |
| Compatibility | Must match the compressor model (e.g., dedicated filter elements for Atlas Copco GA series, Ingersoll Rand R series). |
Structure and Working Principle
Filter Element Materials:
Glass Fiber: High-precision filtration with large dirt-holding capacity but higher cost.
Metal Mesh: Washable and reusable, but with lower filtration accuracy (suitable for pre-filtration).
Synthetic Fiber: Cost-effective, resistant to chemical corrosion, and suitable for most operating conditions.
Bypass Valve Design:
When the filter element becomes clogged, causing excessive differential pressure, the bypass valve automatically opens to prevent lubricating oil starvation. However, impurities will directly enter the system at this point, necessitating immediate filter element replacement.
Example:
A certain brand of screw compressor operates under heavy-load conditions with an oil filter using a glass fiber filter element (15μm filtration accuracy, 120g dirt-holding capacity). The differential pressure reaches 0.12MPa after 4,000 hours of continuous operation (requiring early replacement).
Selection and Maintenance Guidelines
Key Selection Points:
Matching Compressor Model: Filter element dimensions and interfaces vary by brand (e.g., Fusheng, Sullair, CompAir), requiring strict correspondence.
Filtration Accuracy Matching Operating Conditions: Higher-precision filter elements are required for high-temperature or high-dust environments.
Certification Standards: Prioritize products certified by ISO 4548-12 or SAE HS 806.
Maintenance Cycle:
Normal Operating Conditions: Replace every 2,000–3,000 hours or 6 months.
Harsh Operating Conditions: Replace every 1,000 hours or 3 months.
Signal Indicators: Replace based on differential pressure gauge readings or compressor alarm prompts.
Common Issues and Solutions:
| Issue | Cause | Solution |
|---|---|---|
| Premature filter element clogging | Oxidized or severely contaminated lubricating oil | Shorten replacement cycle and strengthen air filter maintenance |
| Frequent bypass valve activation | Filter element differential pressure exceeds threshold | Immediately shut down and replace the filter element |
| Filter element oil leakage | Aging of sealing ring or improper installation | Replace the sealing ring and retighten |
Comparison of OEM and Non-OEM Filter Elements
| Metric | OEM Filter Element | Non-OEM Filter Element |
|---|---|---|
| Filtration Efficiency | High (over 98% interception rate) | Lower (85%–95%) |
| System Compatibility | Perfect match, avoiding leakage risks | Potential dimensional deviations or sealing issues |
| Service Life | Meets manufacturer's design standards (e.g., 4,000 hours) | Typically 20%–30% shorter |
| Cost | Higher (but lower total maintenance cost) | Lower initial purchase cost, but may increase downtime risks |
Recommended Conclusion:
Prioritize OEM Filter Elements: Especially suitable for critical equipment or scenarios with high reliability requirements (e.g., pharmaceutical, electronics manufacturing).
Non-OEM Filter Element Applications: Suitable when budgets are limited and equipment has lower oil cleanliness requirements (e.g., backup units for small air compressors), but ensure supplier qualifications are reliable.
Industry Trends and Upgrade Directions
Smart Monitoring: Integrate differential pressure sensors and IoT technology for real-time filter element status monitoring and early warning.
Eco-Friendly Filter Media: Adopt biodegradable materials or long-life filter elements (e.g., ceramic filter elements) to reduce waste.
Integrated Design: Integrate oil filters with oil separators, thermostatic valves, and other modules to simplify maintenance processes.
Summary:
Oil filters for screw compressors are core components ensuring stable equipment operation. Their selection and maintenance directly impact compressor lifespan and operating costs. Users are advised to select filter elements with appropriate precision based on operating conditions and strictly adhere to the manufacturer's recommended replacement cycles to avoid costly consequences.
