The Synthetic Fiber V-Type Bank Honeycomb Activated Carbon Panel Air Filter is a multi-functional air purification solution engineered to address both particulate matter (PM) and volatile organic compounds (VOCs) in commercial, industrial, and residential ventilation systems. It integrates three core technologies-high-performance synthetic fiber filtration, a space-saving V-type bank structure, and honeycomb activated carbon adsorption-while boasting exceptional dust holding capacity. Designed for HVAC systems, air purifiers, and air handling units (AHUs) in environments like offices, hospitals, hotels, and light industrial facilities, this filter delivers superior air quality by removing dust, allergens, odors, and toxic gases, all while optimizing airflow efficiency and service life.
I. Core Filtration Performance: Dual-Action (Particles + VOCs)
Synthetic Fiber for High-Efficiency Particulate CaptureThe filter's base layer uses a high-tenacity polyester-polypropylene blend synthetic fiber (rated MERV 10–14 per ASHRAE 52.2 or F7–F9 per EN 779:2012), engineered for precision particle removal:
Broad Particle Range Coverage: Captures 80–95% of particles 1.0–3.0μm (MERV 12–14) and 65–80% of particles 3.0–10μm (MERV 10–11), effectively trapping dust mites, pollen, pet dander, fine industrial dust, and even some bacteria. For EN 779-compliant models, it filters 40–95% of particles ≥2.0μm, meeting European ventilation standards.
Resistance to Degradation: Unlike natural fibers (e.g., cotton), the synthetic blend resists moisture, mold growth, and chemical erosion (e.g., low-concentration cleaning agents or mild industrial fumes), ensuring consistent performance in humid or semi-harsh environments.

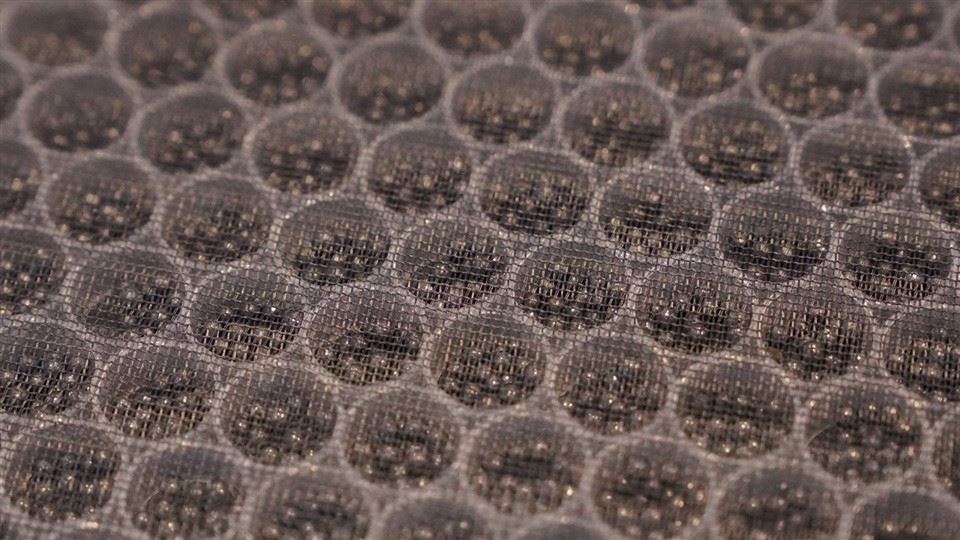

Honeycomb Activated Carbon for VOC & Odor RemovalIntegrated into the filter structure is a high-density honeycomb activated carbon layer (made from coconut shell or coal-based carbon, optional), optimized for adsorption of gaseous contaminants:
VOC & Odor Elimination: The honeycomb structure-with its ultra-large specific surface area (≥1,000 m²/g)-effectively adsorbs formaldehyde, benzene, toluene, ammonia, and other VOCs (common in new buildings, furniture, or industrial emissions). It also neutralizes unpleasant odors from cooking, tobacco, or waste, improving indoor air comfort.
Long Adsorption Lifespan: The honeycomb design ensures uniform air contact with carbon, preventing "channeling" (uneven airflow that reduces adsorption efficiency). This extends the carbon's effective lifespan to 3–6 months (depending on VOC concentration), outperforming traditional granular carbon filters that saturate quickly.
II. V-Type Bank Structure: Space-Saving + High Airflow

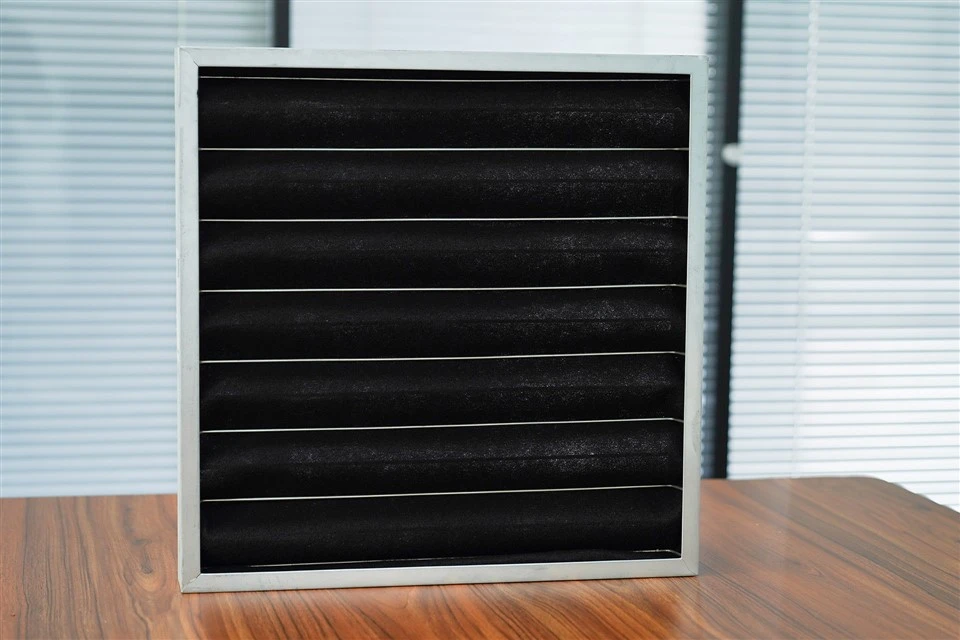

A defining feature of this filter is its V-type (pleated) bank design-a series of evenly spaced V-shaped pleats arranged in a panel format- which addresses two key challenges of standard flat-panel filters:
Maximized Filtration Area & Dust Holding CapacityThe V-type pleats increase the effective filtration area by 4–6x compared to flat-panel filters of the same footprint. This expanded area directly boosts the filter's dust holding capacity (≥450g/㎡)-significantly higher than conventional medium-efficiency filters (typically 200–300g/㎡). The result is a longer service life (6–9 months in moderate-dust environments) and fewer replacements, reducing maintenance costs and downtime.
Low Airflow Resistance & High Airflow CompatibilityDespite its high filtration area, the V-type design maintains a low initial pressure drop (≤90 Pa at rated airflow of 1,000 m³/h). This allows the filter to handle HVAC system airflow rates of 800–1,800 m³/h (470–1,049 CFM) without straining fans or increasing energy consumption. For large AHUs or commercial HVAC systems that require high-volume airflow, this design ensures consistent ventilation performance while delivering dual-action (particle + VOC) purification.
III. Durable Construction for Long-Term Reliability
The filter's structure is built to withstand continuous use in ventilation systems, with materials selected for durability and performance:

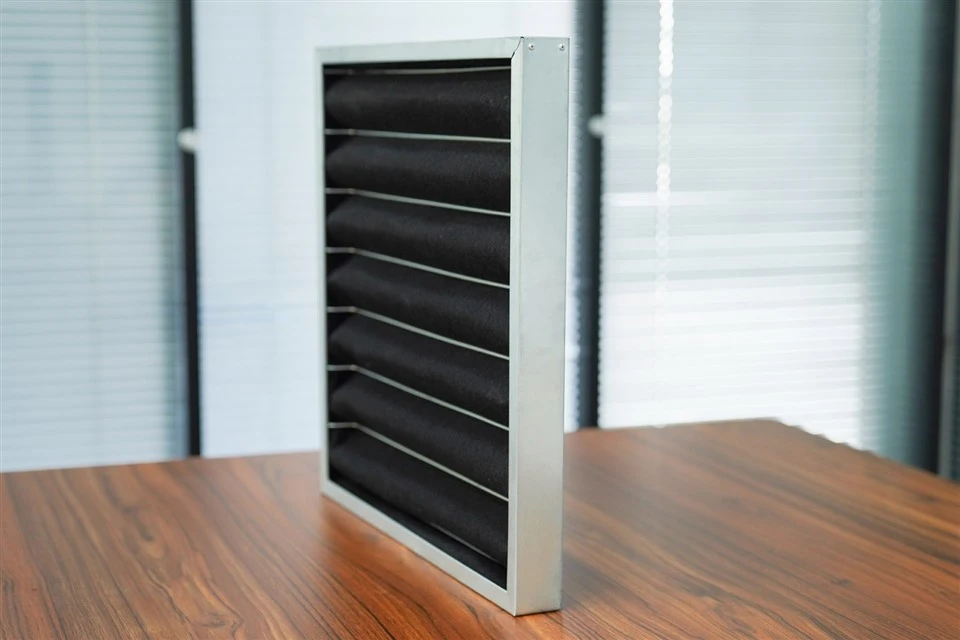

Rigid Frame & SealingThe outer frame is constructed from moisture-proof cardboard (for standard applications) or galvanized steel (for industrial/humid environments). It features a precision-cut edge with a full-perimeter EPDM rubber gasket, creating an airtight seal with HVAC filter housings. This eliminates "bypass air" (unfiltered air leaking around the filter) and ensures all airflow passes through the synthetic fiber and carbon layers.
Reinforced Pleat SupportTo prevent pleat collapse (a common issue in high-airflow settings), the filter uses plastic or aluminum pleat separators (spaced every 10–15mm) between each V-type pleat. These separators maintain uniform pleat spacing, preserving filtration area and airflow efficiency even under high-pressure conditions.
Bonded Layer IntegrationThe synthetic fiber layer and honeycomb carbon layer are securely bonded using a high-temperature-resistant adhesive (rated up to 100℃ / 212℉). This prevents layer separation during installation, cleaning, or airflow turbulence, ensuring the filter retains its dual-action capabilities throughout its lifespan.
IV. Key Advantages for Air Quality & System Efficiency
All-in-One PurificationEliminates the need for separate particle filters and carbon filters, simplifying HVAC system design and reducing installation costs. It addresses both visible contaminants (dust, allergens) and invisible threats (VOCs, odors), making it ideal for environments where comprehensive air quality is critical (e.g., hospitals, schools, or residential spaces with chemical sensitivities).
Energy & Cost SavingsThe low pressure drop reduces HVAC fan energy consumption by 5–8% compared to bulky multi-filter setups. Its high dust holding capacity and long carbon lifespan also cut replacement frequency-lowering maintenance labor costs and reducing waste (a more eco-friendly alternative to single-use filters).
Wide Application FlexibilityAvailable in standard panel sizes (e.g., 592x592mm, 592x1184mm, 610x610mm) and custom dimensions to fit most HVAC AHUs, air purifiers, and commercial ventilation units. It is compatible with both constant-air-volume (CAV) and variable-air-volume (VAV) HVAC systems, adapting to changing airflow demands.
V. Application Scenarios
| End-Use Environment | Target Contaminants | Core Benefit |
|---|---|---|
| Commercial Buildings | Dust, pollen, formaldehyde (from furniture), cooking odors | Improves occupant comfort; reduces allergy triggers |
| Hospitals & Clinics | Fine dust, bacteria, medical odors (e.g., disinfectants) | Enhances patient/ staff air quality; supports hygiene standards |
| Light Industrial Facilities | Industrial dust, low-concentration VOCs (e.g., from printing, painting) | Protects workers; prevents equipment contamination |
| Residential Spaces | Pet dander, mold spores, formaldehyde (new homes) | Comprehensive home air purification; long service life |
| Hotels & Retail Stores | Odors (smoke, food), dust, pollen | Maintains fresh, clean air for guests; reduces cleaning frequency |
The Synthetic Fiber V-Type Bank Honeycomb Activated Carbon Panel Air Filter redefines multi-functional air filtration by combining particle capture, VOC adsorption, and airflow efficiency in a single, durable unit. It is a cost-effective, space-saving solution for anyone seeking to elevate indoor air quality while optimizing the performance and lifespan of their ventilation or HVAC system.
