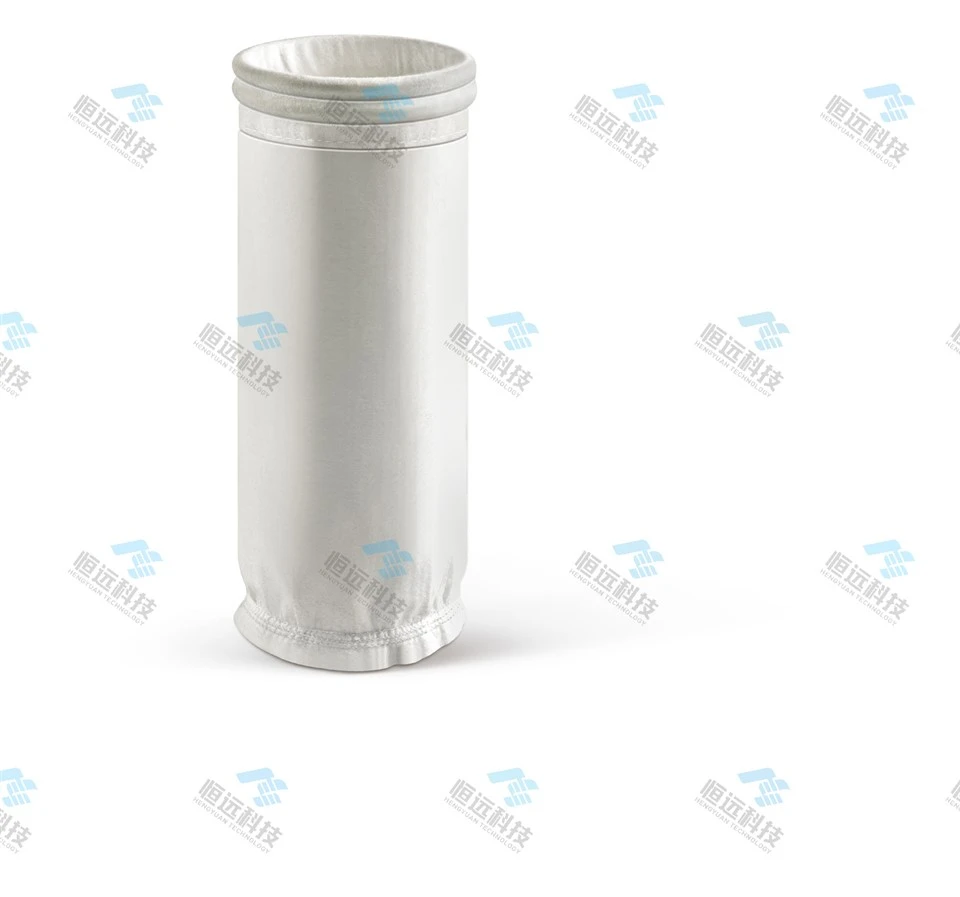

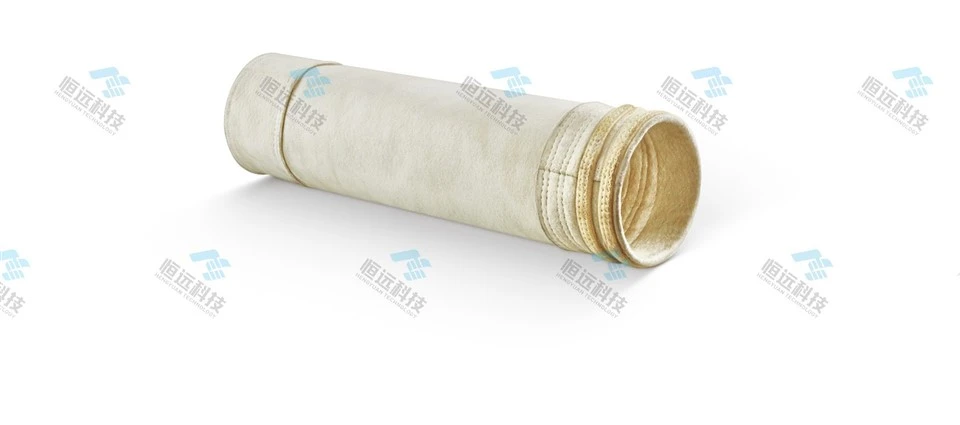

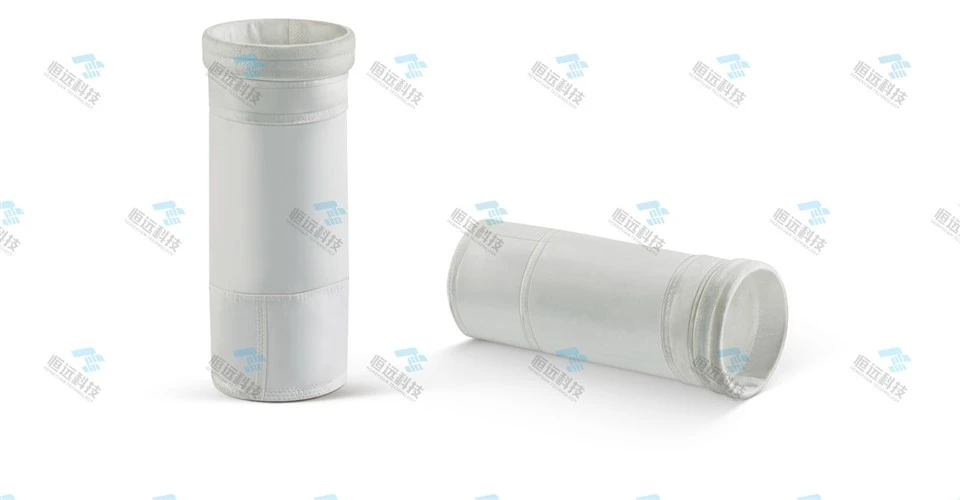

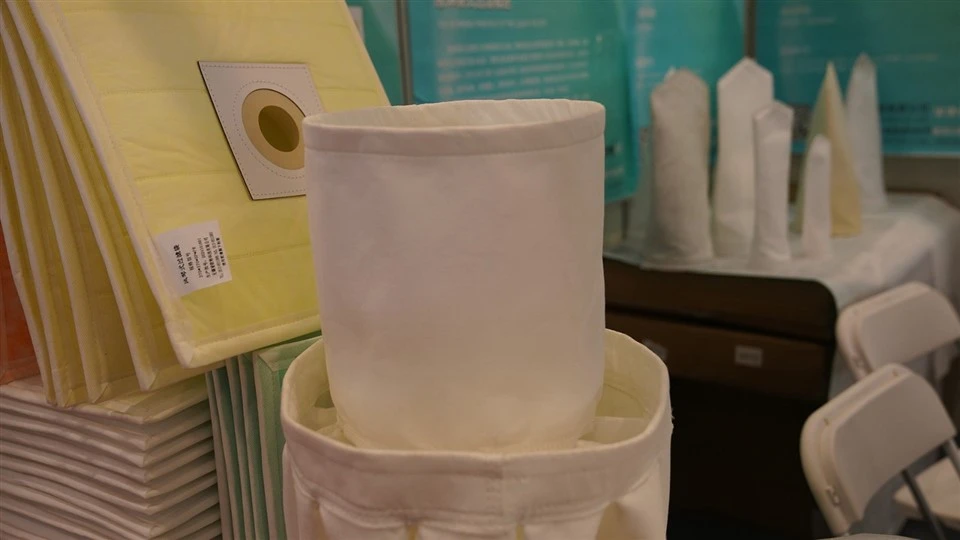

The High-Temperature Resistant Needle Punched Felt PTFE Membrane Polyester Filter Bag is a high-performance filtration solution designed for industries requiring efficient dust collection in extreme thermal and chemical environments. Below is a structured breakdown of its features, benefits, and applications:
1. Material Composition
Base Felt:
High-temperature polyester (PET) needle-punched felt provides mechanical strength and thermal stability (up to 150–180°C continuous use, with short-term peaks up to 200°C).
PTFE Membrane Layer:
A microporous PTFE (Polytetrafluoroethylene) membrane is laminated onto the felt surface, enhancing filtration efficiency and chemical resistance.
PTFE offers exceptional resistance to acids, alkalis, solvents, and oxidizing agents, with a temperature limit of 260°C.
2. Key Features
High-Temperature Resistance:
The polyester base handles moderate to high temperatures, while the PTFE membrane extends thermal tolerance for short-term exposure to higher peaks.
Superior Filtration Efficiency:
The PTFE membrane captures sub-micron particles (as small as 0.3 μm) with >99.99% efficiency, ideal for stringent emissions standards.
Chemical Inertness:
PTFE resists corrosion from aggressive gases, making it suitable for chemical, pharmaceutical, and waste incineration applications.
Low Pressure Drop:
The smooth membrane surface reduces airflow resistance, improving energy efficiency and system performance.
Anti-Adhesion Properties:
PTFE's non-stick surface minimizes dust cake buildup, easing pulse-jet cleaning and reducing maintenance.
Abrasion & Hydrolysis Resistance:
Needle-punched felt structure enhances durability, while PTFE resists moisture-induced degradation.
3. Applications
Power Generation:
Flue gas filtration in coal-fired boilers, biomass plants, and waste-to-energy incinerators.
Metallurgy:
Capture of metal oxides, fumes, and fine particulates in steel, aluminum, and copper smelting.
Cement & Lime Industry:
Filtration of hot kiln exhaust gases containing alkaline dust and high temperatures.
Chemical Processing:
Handling corrosive gases in fertilizer, petrochemical, and sulfuric acid production.
Incineration & Waste Treatment:
Dioxin and particulate control in municipal and hazardous waste incinerators.
Food & Beverage:
High-temperature drying processes (e.g., coffee roasting, snack food production) where hygiene and efficiency are critical.
4. Advantages Over Standard Filter Bags
| Feature | Standard Polyester Felt | PTFE Membrane Polyester Felt |
|---|---|---|
| Filtration Efficiency | 85–99% (5–10 μm) | >99.99% (0.3 μm) |
| Chemical Resistance | Limited to mild acids/alkalis | Excellent (all common chemicals) |
| Pressure Drop | Higher (due to dust cake) | Lower (smooth membrane surface) |
| Cleaning Frequency | More frequent | Reduced (anti-adhesion) |
| Service Life | Shorter (hydrolysis risk) | Longer (resistant to degradation) |
5. Technical Specifications
| Parameter | Details |
|---|---|
| Material | High-temp polyester felt + PTFE membrane |
| Temperature Range | Continuous: 150–180°C; Peak: 200°C |
| Membrane Thickness | 3–10 μm (customizable) |
| Air Permeability | 5–15 m³/m²/min (at 12.7 mm H₂O) |
| Tensile Strength | MD: >1000 N/5cm; CMD: >800 N/5cm |
| Weight | 850–1100 g/m² |
| Finish | Singed, calendared, or glazed |
6. Selection Considerations
Gas Composition: Ensure no exposure to molten metals or reactive gases that may damage PTFE.
Operating Conditions: Verify temperature, humidity, and chemical exposure levels match the bag's ratings.
Cleaning System: Compatible with pulse-jet, reverse-air, or shaker cleaning (pulse-jet is most common).
Regulatory Compliance: Meet local emissions standards (e.g., EPA, EU BREF, or Chinese GB standards).
7. Maintenance Tips
Pre-Coating: Use lime or talc to protect bags during startup or when handling sticky dust.
Optimize Pulse Cleaning: Adjust pressure (0.4–0.6 MPa) and frequency to prevent membrane damage.
Regular Inspection: Check for abrasion, holes, or delamination of the PTFE membrane.
Avoid Condensation: Ensure proper drying of gases to prevent hydrolysis of the polyester base.
8. Comparison with Pure PTFE Bags
Cost: PTFE membrane bags are more economical than 100% PTFE bags while offering similar performance in many applications.
Temperature Limit: Pure PTFE bags (up to 260°C) are better for extreme heat, but membrane bags suffice for most high-temperature processes below 200°C.
Flexibility: Polyester-based bags are more flexible and easier to handle than rigid PTFE alternatives.
Conclusion
The High-Temperature Resistant Needle Punched Felt PTFE Membrane Polyester Filter Bag is an ideal choice for industries seeking a balance between cost, performance, and durability in moderate-to-high-temperature environments. Its PTFE membrane ensures ultra-fine particle capture and chemical resistance, while the polyester base provides structural integrity. For applications exceeding 200°C, consider pure PTFE or hybrid (PTFE-coated fiberglass) alternatives. Always consult with manufacturers to customize specifications for your specific process conditions.
