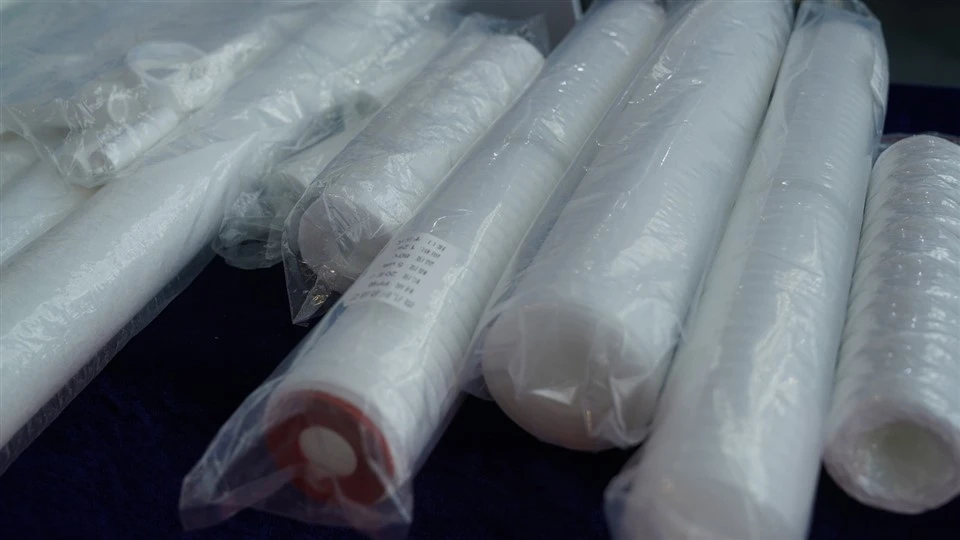

The 10"/20"/30"/40" PP (Polypropylene) Melt Blown Filter Element is a widely used filtration component in water treatment systems, designed to remove suspended solids, sediment, rust, and other particulates from water. Below is a detailed overview of its features, applications, and advantages:
1. Key Features
Material: Made from 100% pure polypropylene (PP) microfibers, ensuring chemical resistance and food-grade safety (FDA-compliant for potable water).
Structure:
Multi-layer gradient density: Tighter on the inside, looser on the outside, capturing particles of varying sizes efficiently.
High dirt-holding capacity: Longer service life due to deep filtration.
Pore Size: Typically ranges from 1–100 microns, allowing customization based on filtration needs.
Dimensions: Available in standard lengths of 10", 20", 30", and 40", with outer diameters of 2.5" or 6" (common for industrial use).
End Caps: Options include DOE (Double Open End), SOE (Single Open End with Flat/Fin), or 222/226 connectors for compatibility with various filter housings.
2. Applications
Residential Water Filtration:
Point-of-entry (POE) systems for whole-house sediment removal.
Under-sink or countertop filters for drinking water pre-treatment.
Commercial & Industrial Water Treatment:
Pre-filtration for reverse osmosis (RO), ultrafiltration (UF), or nanofiltration (NF) systems.
Protection of downstream equipment (e.g., pumps, valves, membranes) from particulate fouling.
Food and beverage production, pharmaceuticals, and electronics manufacturing (where high-purity water is required).
Municipal Water Treatment:
Raw water pre-filtration before disinfection or chemical treatment.
3. Advantages
High Efficiency: Removes >99% of particles above the rated micron size.
Chemical Resistance: Withstands acids, alkalis, and organic solvents (ideal for diverse water qualities).
No Additives: Free from binders, lubricants, or surfactants, preventing secondary contamination.
Cost-Effective: Lower initial cost compared to membrane filters, with easy replacement.
Wide Temperature/Pressure Range: Operates at 1–5 bar (14.5–72.5 psi) and temperatures up to 80°C (176°F).
4. Technical Specifications
| Parameter | Details |
|---|---|
| Filter Length | 10", 20", 30", 40" |
| Outer Diameter | 2.5" or 6" |
| Micron Rating | 1, 5, 10, 20, 50, 100 µm (customizable) |
| Max. Flow Rate | 1–50 GPM (depending on size/micron) |
| Max. Pressure | 5 bar (72.5 psi) |
| Max. Temperature | 80°C (176°F) |
| Lifespan | 3–6 months (varies with water quality) |
5. Selection Guide
For coarse filtration (e.g., well water): Use 40" or 30" filters with 20–50 µm rating.
For fine filtration (e.g., RO pre-treatment): Opt for 10" or 20" filters with 1–10 µm rating.
High-flow applications: Choose 6" diameter filters for reduced pressure drop.
6. Maintenance & Replacement
Replace when pressure drop exceeds 0.5 bar (7 psi) or as per manufacturer recommendations.
Backwashing is not recommended; replace the cartridge instead.
7. Certifications
Look for certifications like NSF/ANSI 61 (for drinking water safety), FDA (food-grade compliance), or ISO 9001 (quality management).
Conclusion
PP melt blown filter elements are a versatile and reliable choice for sediment removal in water treatment. Their gradient density structure, chemical inertness, and cost-effectiveness make them suitable for residential, commercial, and industrial applications. For optimal performance, select the right size and micron rating based on your specific water quality and flow requirements.
For further assistance, consult a water treatment specialist or filter manufacturer to ensure compatibility with your system.
