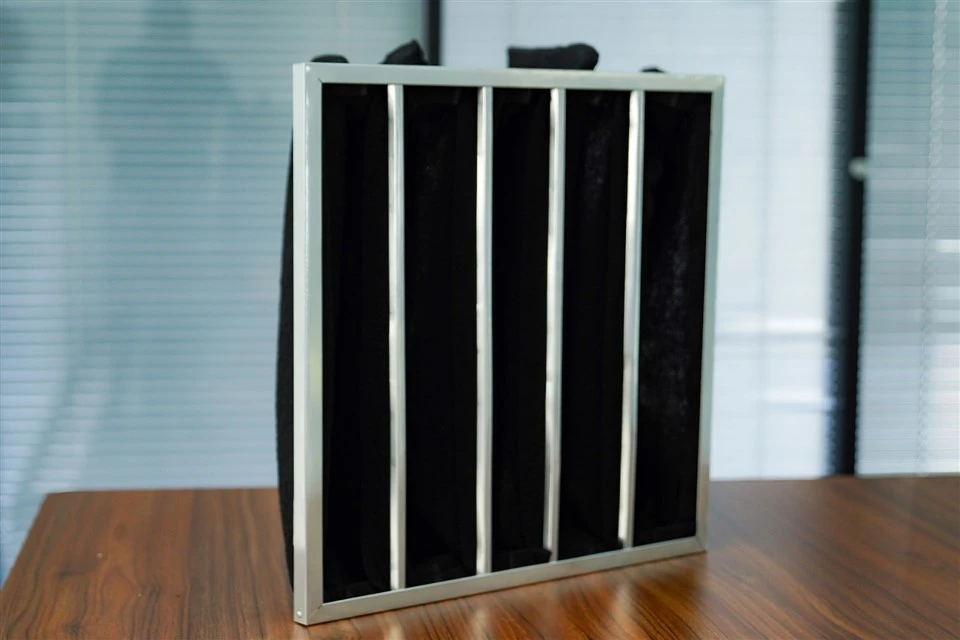

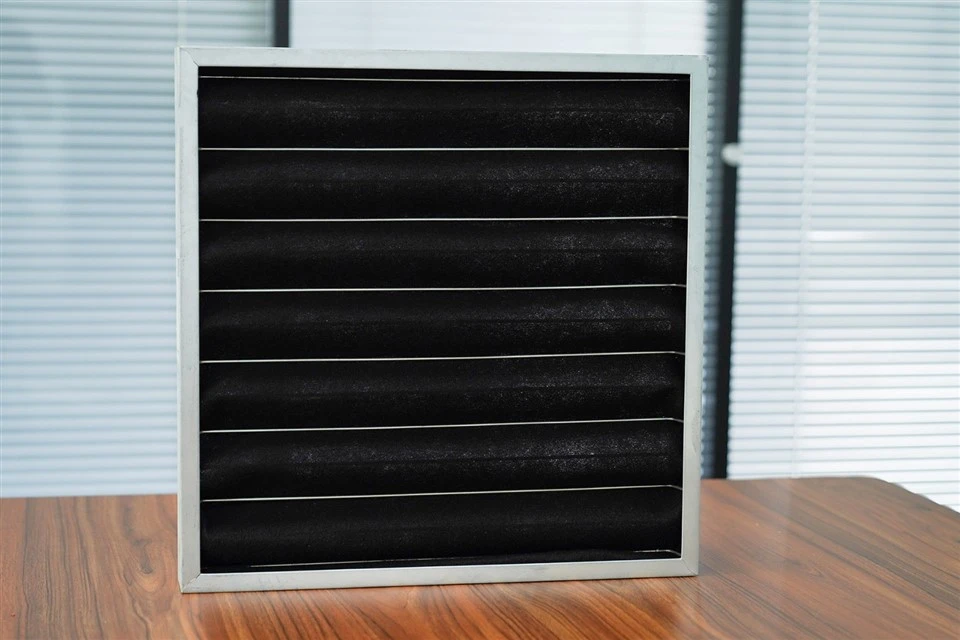

A Big Dust Holding Capacity Pocket Air Filter is a high-performance air filtration solution designed specifically for commercial buildings, where maintaining clean indoor air quality (IAQ) is critical while minimizing maintenance frequency. Below is a detailed breakdown of its features, benefits, and applications:
1. Key Features
Large Dust Holding Capacity:
Multi-Pocket Design: The filter consists of multiple deep-pleated pockets (typically 6–12) that expand to trap more dust without restricting airflow.
High Surface Area: The extended media surface area (compared to flat-panel filters) allows for longer service life and fewer replacements.
Synthetic Media: Made from durable, electrostatic-charged synthetic fibers (e.g., polyester or polypropylene) that capture particles efficiently.
Progressive Density Structure:
The media is engineered with varying fiber densities-coarser at the inlet to trap larger particles and finer at the outlet for sub-micron contaminants. This prevents premature clogging and extends filter life.
Sturdy Frame Construction:
Galvanized Steel or Aluminum Frame: Resists corrosion and ensures structural integrity in high-velocity air systems.
Hot-Melt Adhesive Seams: Prevent air bypass and ensure all air passes through the filter media.
Low Pressure Drop:
Optimized pleat spacing and media selection minimize resistance to airflow, reducing energy consumption in HVAC systems.
2. Benefits for Commercial Buildings
Reduced Maintenance Costs:
Longer filter life means fewer replacements, lowering labor and material expenses.
Ideal for facilities with limited access to HVAC systems (e.g., high-rise offices, malls).
Improved Indoor Air Quality:
Captures a wide range of particles, including dust, pollen, mold spores, and some bacteria, reducing allergy and asthma triggers.
Helps comply with ASHRAE 62.1 ventilation standards for commercial spaces.
Energy Efficiency:
Low pressure drop reduces strain on fans and blowers, cutting energy costs by up to 15–20% compared to standard filters.
Versatility:
Suitable for both new installations and retrofits in existing HVAC systems.
3. Applications
Office Buildings: Reduces dust accumulation on surfaces and improves occupant comfort.
Retail Spaces: Maintains clean air in malls, supermarkets, and showrooms to enhance customer experience.
Hotels & Hospitals: Critical for maintaining hygiene in guest rooms, lobbies, and operating theaters.
Educational Facilities: Ensures healthy air for students and staff in schools and universities.
Data Centers: Prevents dust buildup on servers and IT equipment to avoid overheating.
4. Technical Specifications (Typical)
| Parameter | Details |
|---|---|
| Efficiency | MERV 8–13 (ASHRAE) or Eurovent Class M5–F7 (EN 779) |
| Media Type | Synthetic gradient-density fibers |
| Frame Material | Galvanized steel or aluminum |
| Pocket Count | 6–12 pockets (customizable) |
| Operating Temp | Up to 180°F (82°C) |
| Humidity Resistance | Up to 95% RH |
| Lifespan | 6–12 months (depending on dust load and airflow) |
5. Comparison with Other Filters
| Filter Type | Dust Holding Capacity | Pressure Drop | Cost | Best For |
|---|---|---|---|---|
| Pocket Filter | High | Low–Medium | Moderate | Commercial buildings, long runtime |
| Flat-Panel Filter | Low | Low | Low | Residential, light-duty use |
| Rigid Cell Filter | Medium–High | Medium–High | High | Industrial, high-velocity systems |
| HEPA Filter | Very High | Very High | Very High | Cleanrooms, hospitals, critical apps |
6. Installation & Maintenance Tips
Proper Fit: Ensure the filter fits snugly in the housing to prevent air bypass.
Pre-Filtration: Use a lower-grade filter (e.g., MERV 6–8) upstream to capture large particles and extend pocket filter life.
Regular Inspection: Check for signs of clogging or damage every 3–6 months.
Replacement Schedule: Replace when pressure drop exceeds manufacturer recommendations (typically 1–2" w.g.).
Summary
A Big Dust Holding Capacity Pocket Air Filter is an ideal choice for commercial buildings seeking a balance between high filtration efficiency, long service life, and energy savings. Its multi-pocket design and gradient-density media ensure reliable performance in high-traffic environments, making it a cost-effective solution for maintaining clean and healthy indoor air. Always verify compatibility with your HVAC system and consult with a filtration expert for optimal results.
