In-Depth Analysis of Clean-Link Medium-Efficiency Washable Synthetic Fiber Industrial Dust Filter Bag/Cleanroom HVAC Filter (F7 Grade)
Product Core Positioning

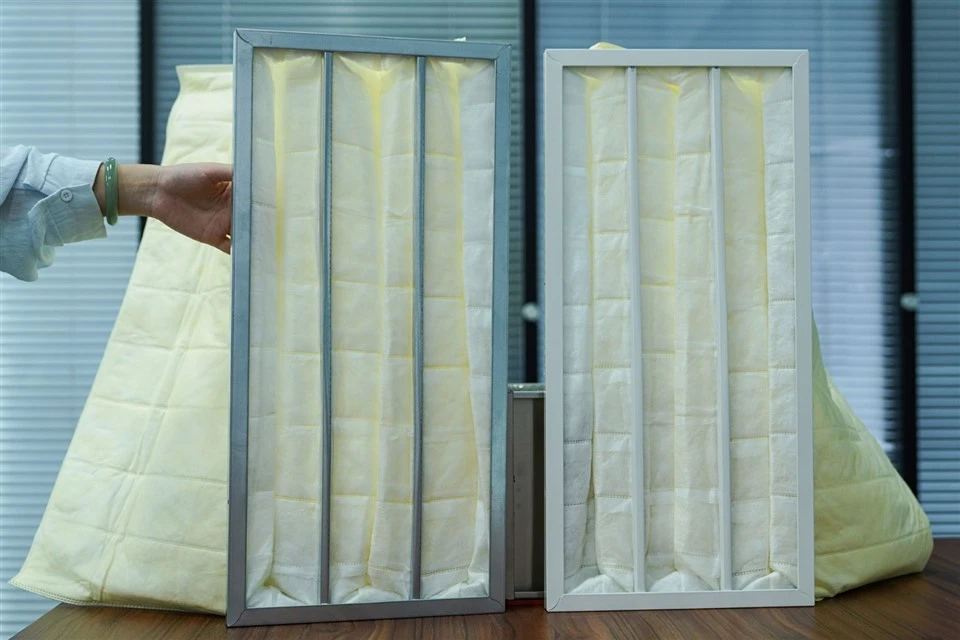

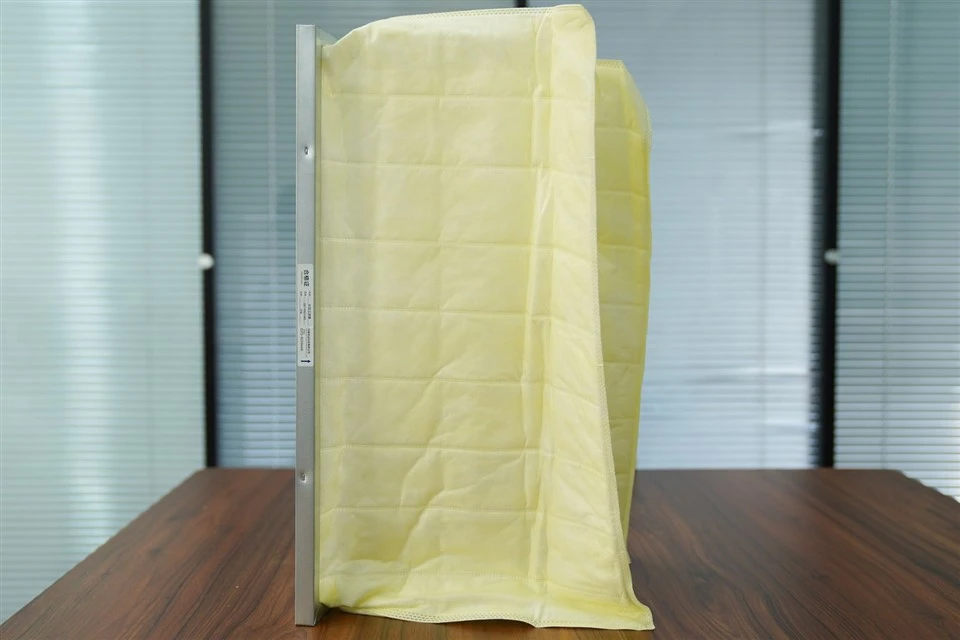

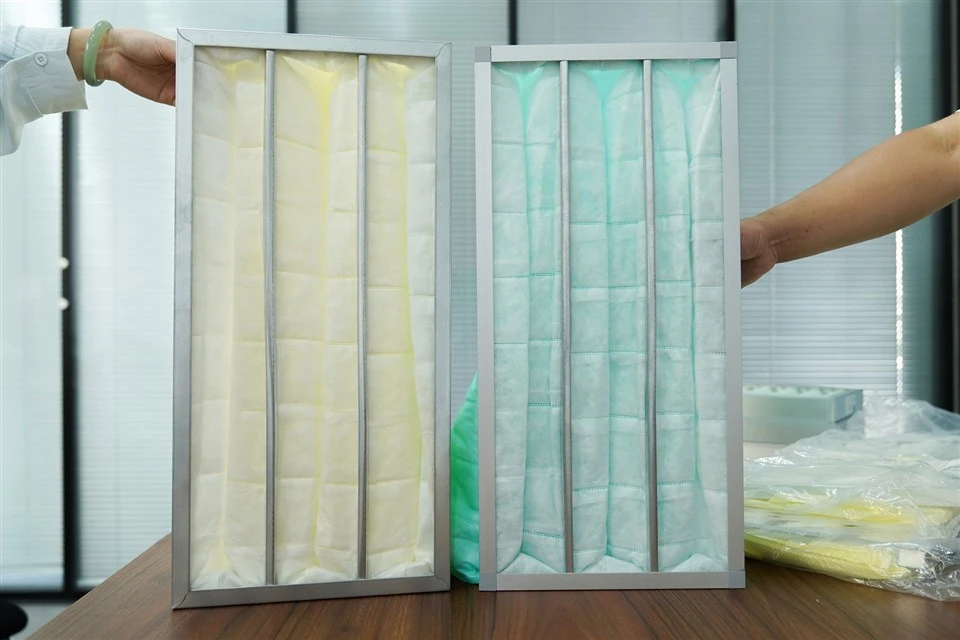

Model: Clean-Link F7 Grade Medium-Efficiency Washable Filter Bag
Applications:
Industrial Dust Collection: Pre-filtration for dust in food processing, pharmaceuticals, and electronics manufacturing (e.g., PCB workshops).
Cleanroom HVAC Systems: Secondary filtration for ventilation systems in hospital operating rooms, laboratories, and semiconductor factories.
Core Functions: Intercepts particles >5μm (efficiency ≥80%~85%), extends HEPA filter lifespan, and reduces operational costs.
Technical Parameters & Performance
| Parameter | Details | Comparison with Industry Standards |
|---|---|---|
| Filtration Efficiency (EN779:2012) | F7 Grade (80%~85% particle capture at 5μm) | Mainstream medium-efficiency grade (F5~F9) |
| Filter Media | Polyester synthetic fiber (antistatic treatment) | Compared to glass fiber: resistant to damage, washable |
| Dust Holding Capacity | 400~600g/m² (3~5 times that of primary filters) | Extends replacement cycles, reduces maintenance frequency |
| Temperature Resistance | -10°C~80°C (short-term resistance up to 100°C) | Adapts to industrial temperature/humidity fluctuations |
| Washable Cycles | 5~8 times (water washing or pulse jet cleaning) | Compared to disposable filters: saves 60%+ costs |
Advantages:
Antistatic Treatment: Prevents rapid resistance increase due to dust adhesion (especially suitable for electronics workshops).
Gradient Density Structure: Coarse outer layer filters large particles; fine inner layer filters small particles, extending lifespan.
Environmental Friendliness: Reusable, reduces waste (complies with EU RoHS directives).
Comparison with Competitors
| Comparison Dimension | Clean-Link F7 | Traditional Glass Fiber Medium-Efficiency Filter | Disposable Synthetic Fiber Filter |
|---|---|---|---|
| Initial Cost | Medium (¥150~200/piece) | Low (¥80~120/piece) | Low (¥50~80/piece) |
| Long-Term Cost | Low (40% savings over 5 years) | High (frequent replacement required) | Extremely high (monthly replacement) |
| Efficiency Stability | ≤5% decay after washing | High risk of damage, large efficiency fluctuations | Linear efficiency decline with use |
| Maintenance Complexity | Low (wash, dry, or pulse jet) | Requires professional tools for replacement | Direct disposal |
| Environmental Impact | Recyclable filter media | Glass fiber is hard to degrade | Synthetic fiber incineration produces dioxins |
Typical Application Cases
Case 1: Cleanroom in an Electronics Factory
Original: Disposable F7 filters cost ¥12,000/month for replacement.
After switching: Annual maintenance cost reduced to ¥28,000 (76% savings).
Case 2: Hospital Central HVAC System
Used with HEPA filters, extending HEPA replacement cycle from 6 months to 18 months.
Selection & Usage Recommendations
Application Suitability:
Recommended: Workplaces with dust concentration ≤5mg/m³ and humidity ≤80%.
Not Recommended: High-temperature (>80°C) or strong acid/alkaline corrosive environments (use PTFE filter media instead).
Installation Notes:
Ensure tight sealing between filter bag and frame (use silicone sealant).
Airflow direction should be perpendicular to filter bag pleats to avoid local blockage.
Washing Specifications:
Water temperature ≤40°C, neutral detergent, gentle hand washing or low-pressure water jet.
Inspect filter media for damage after drying (replace if damaged area >5%).
FAQs
Q: Can F7 filters directly replace HEPA filters?
A: No. F7 filters only intercept particles >5μm, while HEPA (H13~H14) filters ≥99.97% of 0.3μm particles. Graded filtration is required.
Q: Does efficiency decline after washing?
A: Efficiency decay ≤5% after proper washing. Using high-pressure water jets or strong acids/bases may break filter fibers, significantly reducing efficiency.
Q: How to determine replacement needs?
A: Replace when filter resistance reaches twice the initial resistance (e.g., initial resistance 120Pa, final resistance 240Pa).
Summary & Recommendations
Core Advantages: Medium-efficiency filtration, washable and reusable, environmentally friendly, and cost-effective.
Target Users:
Industrial users focusing on long-term cost control (e.g., food, pharmaceutical, electronics factories).
Cleanroom projects with high environmental requirements (e.g., hospitals, laboratories).
Risk Warnings:
Avoid use in ultra-high-temperature/strongly corrosive environments.
Regularly monitor resistance to prevent system energy consumption increases due to delayed replacement.
For specific model matching or technical parameter verification, contact Clean-Link official support and provide operating parameters (e.g., dust type, temperature/humidity, air volume) for customized solutions.
