The Dust-Free Room HEPA Pleated Filter and High-Temperature Deep Pleat Tank HEPA Filter are specialized air filtration solutions designed for critical environments requiring ultra-clean air and resistance to extreme temperatures. Below is a detailed breakdown of each:

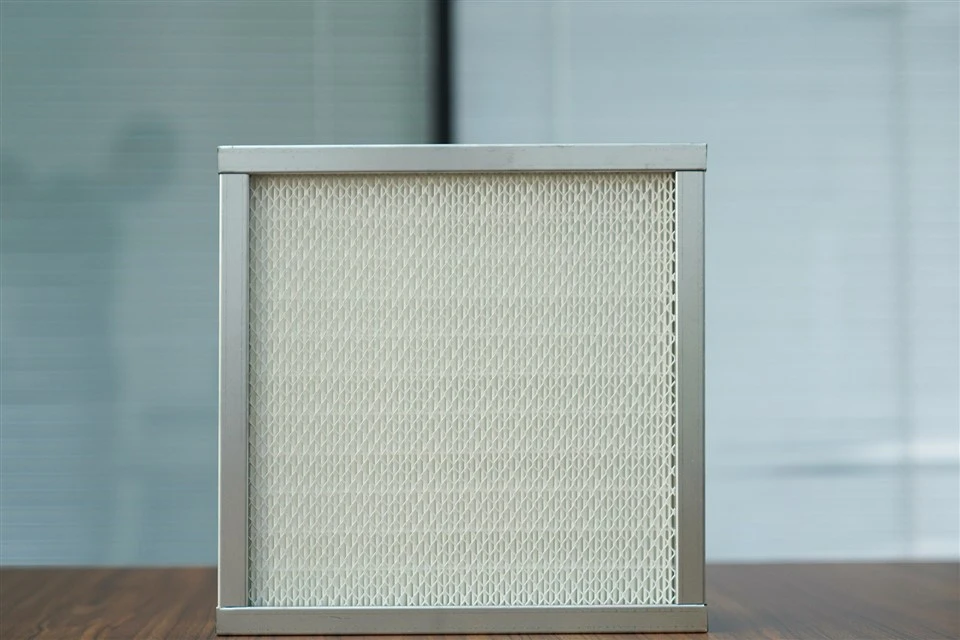

1. Dust-Free Room HEPA Pleated Filter
Purpose:
Used in cleanrooms (Class 100–100,000) to remove 99.97%–99.9995% of particles ≥0.3µm, ensuring a dust-free environment for semiconductor manufacturing, pharmaceuticals, biotechnology, and electronics assembly.
Key Features:
High-Efficiency Filtration: HEPA-grade media (glass fiber or synthetic fibers) captures sub-micron particles.
Pleated Design: Increases surface area for higher airflow and longer service life compared to flat filters.
Low Pressure Drop: Optimized pleat spacing minimizes resistance, reducing energy consumption.
Leak-Proof Construction: Sealed frames (aluminum, galvanized steel, or plastic) prevent bypass of unfiltered air.
Certifications: Meets standards like EN 1822, IEST-RP-CC001, or ISO 14644-1 for cleanroom classification.
Applications:
Cleanroom ventilation systems
Laminar flow hoods
Pharmaceutical filling lines
Hospital operating theaters

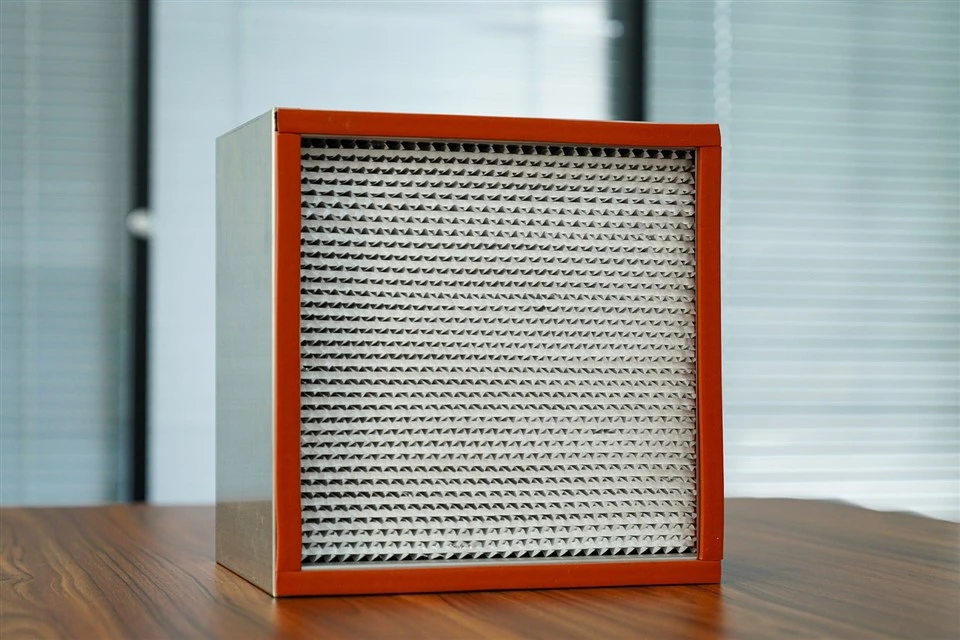

2. High-Temperature Deep Pleat Tank HEPA Filter
Purpose:
Designed for industrial processes requiring HEPA filtration at elevated temperatures (up to 400°C/752°F), such as in ovens, dryers, or exhaust systems.
Key Features:High-Temperature Resistance:
Media: Specialized fibers (e.g., ceramic, fiberglass, or metal) that retain structural integrity at high temps.
Separators: Stainless steel or aluminum foil instead of plastic to withstand heat.
Gaskets: Silicone or fluoropolymer seals to prevent leakage.
Deep Pleat Design:
Increased media depth allows for higher dust-holding capacity and longer service life in harsh conditions.
Optimized for low airflow resistance despite deep pleats.
Corrosion Resistance: Stainless steel or coated frames for durability in chemical or humid environments.
Applications:
Industrial ovens (e.g., baking, curing, drying)
Automotive paint booths
Power plant exhaust systems
Food processing (e.g., baking, roasting)
Aerospace composite curing
Comparison Table
| Feature | Dust-Free Room HEPA Filter | High-Temp Deep Pleat Tank HEPA Filter |
|---|---|---|
| Temperature Range | Ambient (up to 80°C/176°F) | Up to 400°C/752°F |
| Media Material | Glass fiber, synthetic fibers | Ceramic, fiberglass, metal fibers |
| Pleat Design | Standard depth (20–50mm) | Deep pleats (50–100mm+) |
| Frame Material | Aluminum, plastic, galvanized steel | Stainless steel, coated steel |
| Seals | Neoprene, polyurethane | Silicone, fluoropolymer |
| Primary Use | Cleanrooms, labs | High-temp industrial processes |
Selection Considerations
For Dust-Free Rooms:
Prioritize low pressure drop, high efficiency, and compatibility with cleanroom protocols (e.g., gowning, airflow patterns).
Consider ULPA filters (99.9995% efficient) for critical applications like nanotechnology.
For High-Temp Applications:
Verify maximum operating temperature and thermal cycling capabilities.
Ensure compatibility with corrosive gases or particulates (e.g., in chemical processing).
Both filters are critical for maintaining air quality in demanding environments but differ significantly in design and material selection based on temperature and application requirements.
