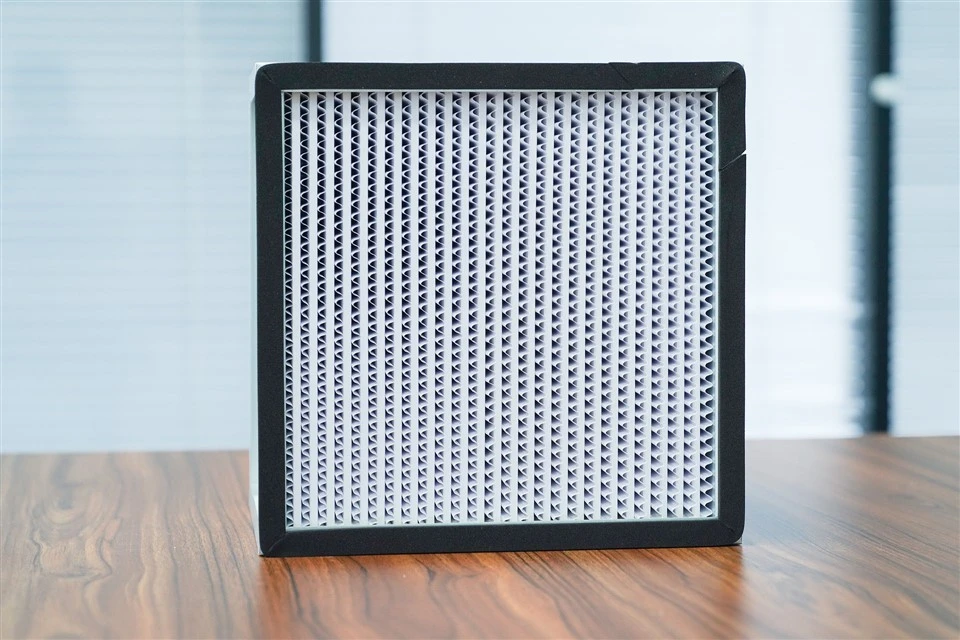

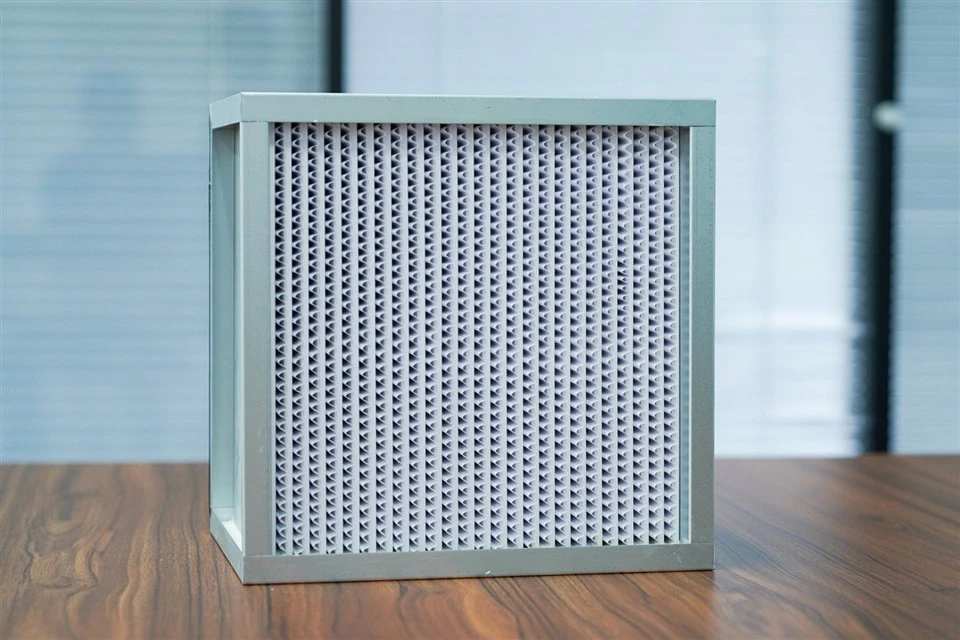

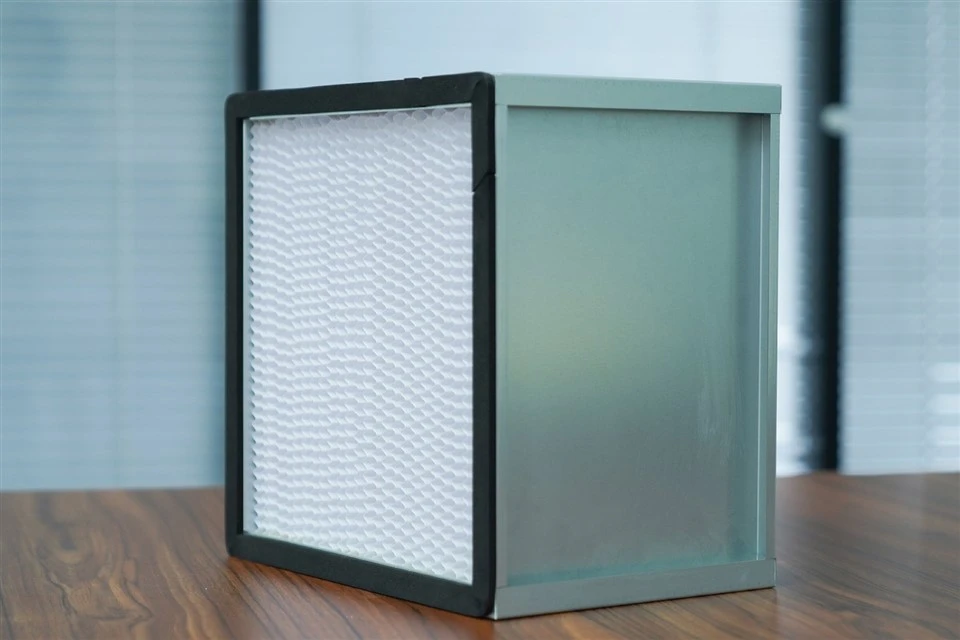

Here's a detailed breakdown of HEPA High-Efficiency Air Filters designed for clean plants (cleanrooms) with large dust-holding capacity and uniform air velocity, covering their design, benefits, applications, and key considerations:
1. What is a HEPA Filter?
Definition: HEPA (High-Efficiency Particulate Air) filters remove ≥99.97% of particles ≥0.3µm in diameter (per EN 1822 or IEST-RP-CC001 standards).
Structure:
Filter Media: Ultra-fine glass fiber paper folded into pleats.
Separators: Aluminum, plastic, or hot-melt adhesive between pleats to maintain spacing.
Frame: Anodized aluminum, stainless steel, or galvanized steel for durability.
2. Key Features for Clean Plants
A. Large Dust-Holding Capacity
Design:
Deep Pleats: Increased media surface area (e.g., 300–600 mm depth) to trap more particles before clogging.
High-Loft Media: Thicker glass fiber layers enhance dust retention.
Gradient Density: Denser at the air outlet to capture fine particles last, extending lifespan.
Benefit: Reduces filter replacement frequency, lowering operational costs.
B. Uniform Air Velocity
Design:
Optimized Pleat Geometry: Consistent spacing prevents airflow channeling.
Aerodynamic Frame: Minimizes turbulence at edges.
Downstream Flow Straighteners: Honeycomb grids or perforated plates to stabilize airflow.
Benefit: Ensures ISO Class 1–9 compliance by preventing particle re-entrainment.
3. Types of HEPA Filters for Clean Plants
| Type | Description | Best For |
|---|---|---|
| Mini-Pleat HEPA | Ultra-thin separators (hot-melt adhesive) for compact design and low pressure drop. | High-efficiency cleanrooms (ISO 5–7). |
| Partitioned HEPA | Aluminum/plastic separators for heavy-duty use and high dust capacity. | Industrial cleanrooms, pharmaceutical manufacturing. |
| V-Bank HEPA | V-shaped pleats in a rigid frame for maximum media area in limited space. | Data centers, hospitals, semiconductor labs. |
| FFU-Integrated HEPA | Pre-installed in Fan Filter Units for modular cleanroom construction. | Laminar flow hoods, clean benches. |
4. Applications in Clean Plants
Pharmaceuticals: Sterile drug manufacturing, filling lines.
Semiconductors: Wafer fabrication, photolithography.
Biotechnology: Cell culture, vaccine production.
Aerospace: Optical component assembly, satellite testing.
Food & Beverage: Aseptic packaging, dairy processing.
5. Performance Factors
A. Efficiency Classes
H13: 99.95% removal (ISO 14644-1 Class 5).
H14: 99.995% removal (ISO Class 4 or better).
ULPA (U15–U17): 99.9995%+ removal for sub-0.1µm particles (e.g., nanotechnology).
B. Airflow Resistance (Pressure Drop)
Typical Range: 100–300 Pa at rated airflow (e.g., 0.45 m/s).
Impact: Lower pressure drop reduces energy consumption by HVAC fans.
C. Lifespan
Factors:
Particle load (e.g., 5–10 years in controlled environments vs. 1–2 years in heavy dust).
Humidity (<80% RH to prevent media degradation).
Temperature (<70°C for standard HEPA; higher for specialty filters).
6. Installation & Maintenance
Leak Testing: Use DOP/PAO smoke or laser particle counters to verify integrity post-installation.
Replacement Criteria:
Pressure drop exceeds 2× initial value.
Visual damage (tears, moisture ingress).
Disposal: Follow hazardous waste protocols (HEPA filters may trap toxic particles).
7. Example Products
Camfil CamCleaner: Mini-pleat HEPA with high dust capacity for pharmaceutical cleanrooms.
AAF Flanders AstroCel I: Partitioned HEPA for industrial environments.
Trox HEPA-Cassettes: V-bank design for data centers.
Envirco MAC 10: FFU-integrated HEPA for modular cleanrooms.
Conclusion
For clean plants requiring large dust capacity and uniform air velocity, select deep-pleated, partitioned, or V-bank HEPA filters with gradient-density media. Pair with FFUs or flow straighteners to maintain laminar flow. Regular leak testing and proactive replacement ensure compliance with ISO 14644-1 and FDA/GMP standards.
For extreme conditions (e.g., high humidity or temperature), consider stainless steel frames or PTFE-coated media for durability. Consult manufacturers for custom solutions tailored to your cleanroom's criticality level.
