Here's a structured overview of a Fine Miter Dust Removal Filter Core Element for industrial applications, focusing on its design, functionality, and benefits:
Product Overview

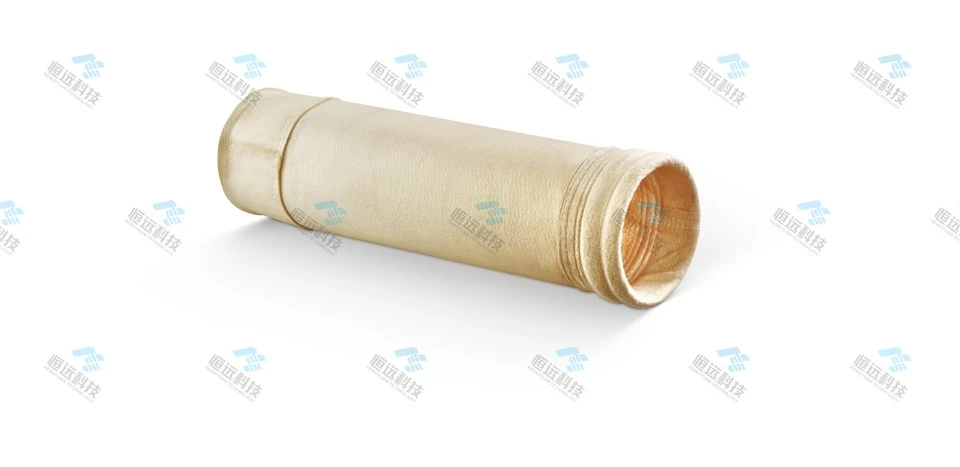

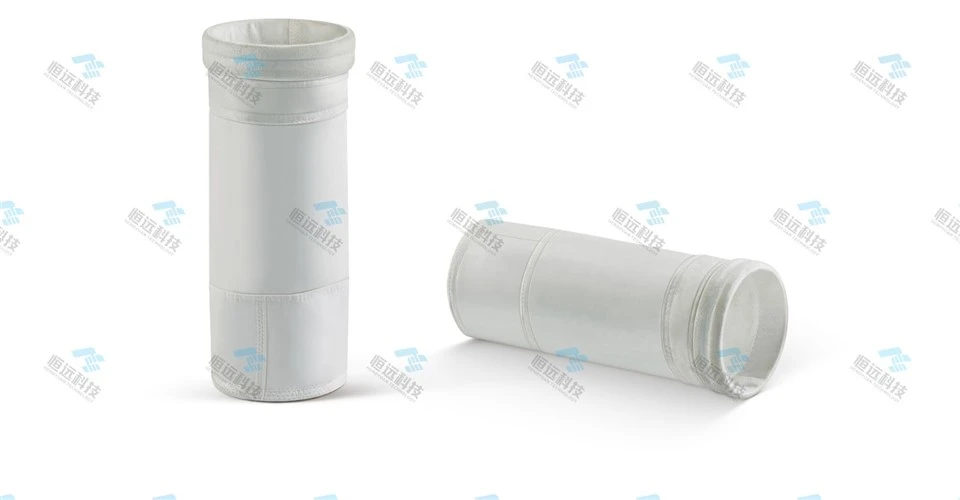

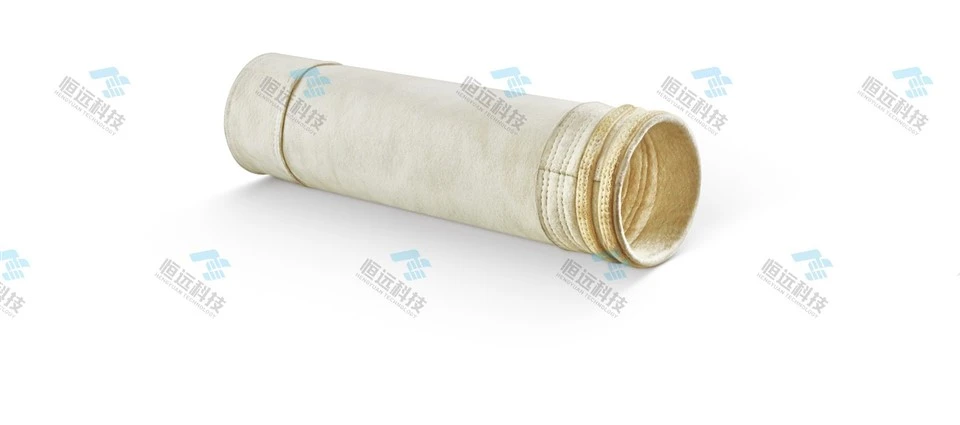

A Fine Miter Dust Removal Filter Core Element is a specialized filtration component designed for high-efficiency particle capture in industrial dust collection systems. It features a mitered (angled) pleat design to maximize filtration area and improve dust-holding capacity, making it ideal for applications like woodworking, metalworking, pharmaceuticals, and food processing.
Key Features
Mitered Pleat Design
Angled pleats create a larger effective filtration surface compared to straight pleats, enhancing dust retention and reducing pressure drop.
Improves airflow distribution and prevents clogging.
High-Efficiency Media
Made from nanofiber, polyester, or fiberglass with electrostatically charged fibers for superior capture of fine particles (≥0.3µm).
Suitable for MERV 13–16 or F7–F9 (EN779:2012) ratings.
Industrial-Grade Construction
Galvanized steel or stainless steel frame for durability in harsh environments.
Hot melt adhesive or polyurethane sealant to prevent air bypass.
High Dust Holding Capacity (DHC)
Deep-pleated design traps more particulates before replacement, extending service life.
Reduces maintenance frequency and operational costs.
Flame-Retardant Options
Available with fire-resistant media (e.g., fiberglass with silicone coating) for compliance with safety standards like NFPA 99.
Applications
Woodworking: Capturing sawdust, shavings, and fine particulates.
Metalworking: Removing welding fumes, grinding dust, and metal oxides.
Pharmaceuticals: Ensuring sterile air in cleanrooms and production areas.
Food Processing: Filtering flour, sugar, and other food-grade powders.
Chemical Industry: Handling corrosive or abrasive dust.
Technical Specifications
| Parameter | Details |
|---|---|
| Media Type | Nanofiber / Polyester / Fiberglass |
| Pleat Design | Mitered (Angled) |
| Efficiency Rating | MERV 13–16 / F7–F9 (EN779:2012) |
| Frame Material | Galvanized Steel / Stainless Steel |
| Max. Temperature | 120°C (248°F) [Standard] (Higher temps available) |
| Max. Humidity | 95% RH (Non-condensing) |
| Initial Pressure Drop | ≤50 Pa (at rated airflow) |
| Recommended Final Pressure Drop | ≤400 Pa |
| Dimensions | Customizable (e.g., 610x610x500mm) |
Advantages Over Standard Filters
Higher Efficiency: Captures finer particles (e.g., PM2.5, smoke, bacteria).
Longer Lifespan: Mitered pleats reduce clogging and extend filter life.
Energy Savings: Lower pressure drop maintains system performance.
Compliance: Meets OSHA, EPA, and ATEX standards for industrial safety.
Customization Options
Media Selection: Choose based on particle size, temperature, and chemical resistance.
Frame Coating: Powder-coated or epoxy finishes for corrosion resistance.
Gasketing: Neoprene, silicone, or closed-cell foam for airtight seals.
Special Treatments: Antistatic, hydrophobic, or antimicrobial coatings.
