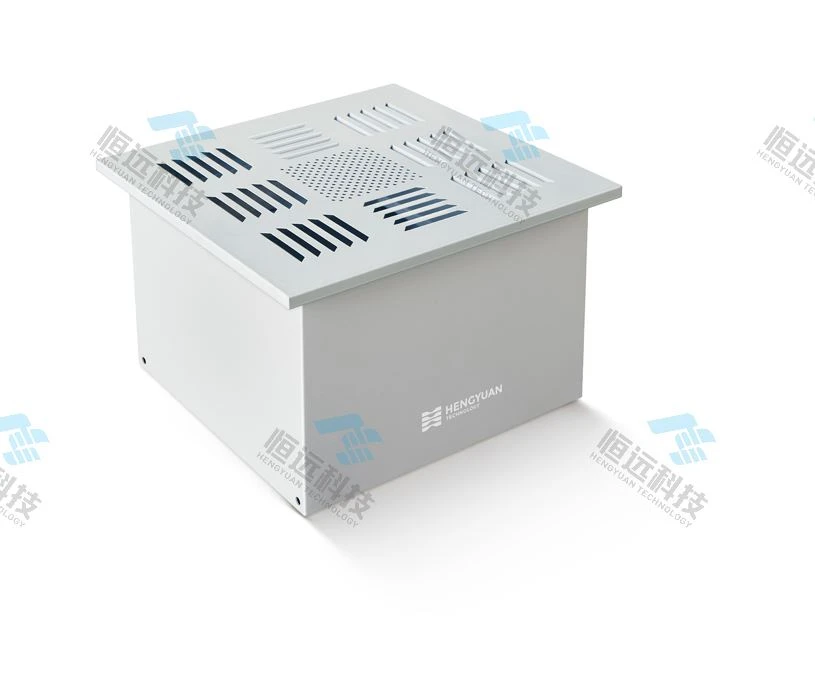

HGB/HWB Series HEPA Filter Air Outlet For Class 1000-300000 Cleanroom

1. Product Introduction

HGB/HWB series high efficiency air outlets are standard terminal filtration equipment for clean room air conditioning systems, applicable to cleanliness grades from Class 1,000 up to Class 300,000. It serves as core terminal purification equipment for both newly-built and renovated clean workshops.

Built-in Components

Complete integrated structure consisting of:

Static pressure box (plenum chamber)

Diffuser plate

High efficiency filter

Installation & Structural Advantages

Two air duct connection modes available: top inlet or side inlet

Compact overall layout, tight assembly with excellent air sealing performance to prevent unfiltered air bypass leakage

2. Application Industry & Cleanliness Class

Applicable Cleanliness Grades

Class 1,000 / Class 10,000 / Class 100,000 / Class 300,000 clean rooms

Main Industries

Pharmaceutical & healthcare manufacturing, precision electronics production, fine chemical processing, food purification workshops, laboratory clean zones and other purification air-conditioning projects.

3. Core Product Strengths

All-in-one integrated design, combining air equalization, diffusion and high-efficiency particulate filtration in one unit

Flexible piping connection design to match different on-site duct layout requirements

Superior sealing property eliminates air leakage, ensuring indoor clean class stability

Compact footprint, convenient for ceiling installation and later filter replacement maintenance
