A High Dust Holding Capacity 99.99% High-Temperature HEPA Deep-Pleat Filter is a premium filtration solution designed for extreme industrial environments requiring ultra-clean air and high-temperature resistance. Below is a detailed breakdown of its features, benefits, and applications:
Key Features
99.99% Filtration Efficiency (HEPA Grade H14)
Captures ≥99.99% of particles ≥0.3 microns, meeting EN 1822 and IEST-RP-CC001 standards.
Ideal for critical applications (e.g., cleanrooms, pharmaceuticals, nuclear facilities).
High-Temperature Resistance
Constructed with glass fiber media reinforced with silicone or PTFE (Teflon) coatings for thermal stability.
Operates continuously at 250–300°C (482–572°F) (short-term exposure up to 400°C/752°F).
Resists thermal shock and degradation under cyclic heating/cooling.

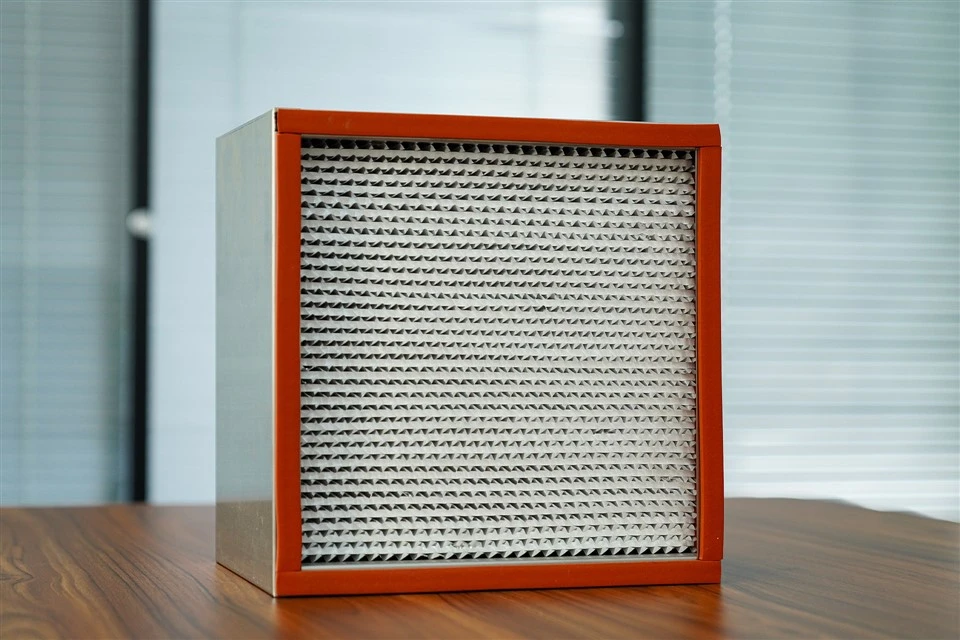

Deep-Pleat Design
Extended pleat depth (50–100mm) increases media surface area by 3–5x compared to standard filters.
Enhances dust-holding capacity, reducing pressure drop and extending service life.
Minimizes frequency of replacements, lowering long-term costs.
High Dust Holding Capacity (DHC)
Can retain 5–10 kg/m² of dust (depending on particle size and density) before requiring replacement.
Suitable for heavy-dust environments (e.g., metal smelting, cement kilns, waste incineration).
Robust Construction
Stainless steel or anodized aluminum frame for corrosion resistance.
Silicone or Viton gaskets ensure airtight seals at high temperatures.
Optional pre-filters (e.g., metal mesh or coarse fiber) to protect HEPA media from large particulates.
Applications
Pharmaceutical & Biotech – Sterile manufacturing, aseptic filling, and containment of hazardous drugs.
Aerospace & Defense – Cleanrooms for satellite assembly, missile propellant handling.
Nuclear Power – Filtration of radioactive dust in gloveboxes and hot cells.
Metal Processing – High-temperature fume extraction from foundries, forges, and welding operations.
Chemical & Petrochemical – Control of corrosive fumes in reactors and distillation columns.
Waste-to-Energy Plants – Filtration of flue gas from incinerators.
Benefits
✔ Long Service Life – Deep pleats and high DHC reduce replacements by 50–70% vs. standard HEPA filters.
✔ Energy Efficient – Low pressure drop minimizes fan energy consumption by up to 30%.
✔ Safety Compliance – Meets OSHA, EPA, and ATEX standards for workplace air quality.
✔ Customizable – Available in various sizes, pleat depths, and frame materials for OEM integration.
Comparison with Standard HEPA Filters
| Feature | High-Temp Deep-Pleat HEPA | Standard HEPA (H14) |
|---|---|---|
| Max Operating Temp | 250–300°C (482–572°F) | ≤80°C (176°F) |
| Dust Holding Capacity | 5–10 kg/m² | 1–3 kg/m² |
| Pressure Drop | Lower (due to deep pleats) | Higher |
| Cost | High (premium material) | Moderate |
Installation & Maintenance Tips
Pre-filtration: Use a high-temp bag filter or cyclone separator upstream to protect HEPA media.
Leak Testing: Perform DOP/PAO tests annually to ensure filter integrity.
Replacement: Monitor pressure drop (typically ≤ 500 Pa) and replace when efficiency drops or DHC is exhausted.
Storage: Keep in a dry, climate-controlled environment to prevent moisture absorption.
Customization Options
Frame Material: Stainless steel (304/316L), anodized aluminum, or Inconel.
Pleat Depth: 50mm, 75mm, or 100mm for varying DHC requirements.
Gasket Material: Silicone (standard), Viton (chemical resistance), or PTFE (extreme temps).
Media Coating: PTFE for hydrophobic/oleophobic properties or graphite for anti-static needs.
For high-volume or mission-critical applications, consult a filtration engineer to optimize filter selection and system design.
Would you like a quote for a specific application or quantity?
