introduction

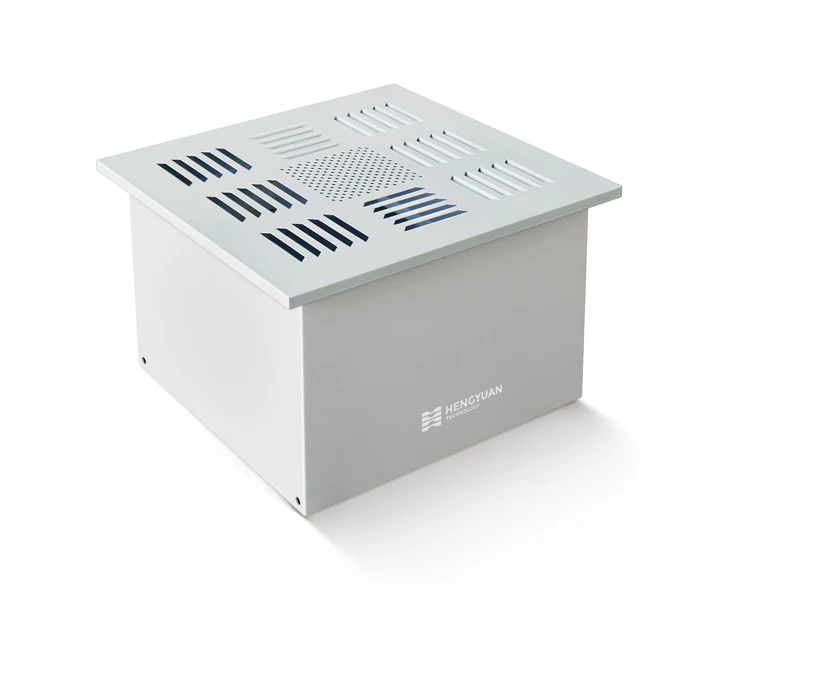

High-efficiency air supply outlets, also known as high-efficiency air filter supply outlets, are designed specifically as terminal air supply devices for cleanrooms. They effectively distribute filtered air evenly into the cleanroom, thereby maintaining the desired air cleanliness level within. These outlets are typically installed on the ceiling or walls of the cleanroom and are connected to the air supply ducts of the cleanroom system.
Performance Characteristics
- High Filtration Efficiency: Equipped with high-efficiency filters such as HEPA (High-Efficiency Particulate Air) or ULPA (Ultra-Low Particulate Air) filters, they effectively remove particulate matter, bacteria, viruses, and other harmful contaminants from the air.
- Compact Structure: The housing is constructed from high-quality cold-rolled steel plates with an electrostatic powder-coated surface, ensuring a sleek and compact design that facilitates installation and maintenance.
- Uniform Airflow: The diffuser plate is meticulously designed to ensure even air distribution, eliminating vortex formation and ensuring uniform air distribution within the cleanroom.
- Excellent Sealing: Featuring reliable sealing designs, they prevent air leakage, thereby enhancing the cleanliness level of the cleanroom.
application area
- Pharmaceutical Industry: Used in pharmaceutical manufacturing workshops, laboratories, operating rooms, and other areas requiring high cleanliness standards.
- Healthcare Sector: Found in sterile wards, ICUs (Intensive Care Units), and other critical areas of hospitals.
- Electronics Industry: Employed in dust-free workshops for semiconductor manufacturing, precision instrument production, and similar environments.
- Chemical Industry: Suitable for chemical laboratories and production workshops where air pollution control is essential.
Model, Size And Technical Parameters
|
Filter model |
Overall dimensions (mm) |
Overall dimensions (mm) |
Rated air flow (m3/h) |
Air inlet pipe size (mm) |
|
|
Side air intake |
Top air intake |
||||
|
HGB/HWB-200 |
HGB/HWB-200D |
370*370*530 |
320*320*220 |
500m3/h |
200*200 |
|
HGB/HWB-484 |
HGB/HWB-484D |
534*534*530 |
484*484*220 |
1000m3/h |
320*200 |
|
HGB/HWB-610 |
HGB/HWB-610D |
660*660*460 |
610*610*150 |
1000m3/h |
320*250 |
|
HGB/HWB-820 |
HGB/HWB-820D |
870*650*460 |
820*600*150 |
1200m7h |
320*250 |
|
HGB/HWB-630 |
HGB/HWB-630D |
680*680*530 |
630*630*220 |
1500m3/h |
320*250 |
|
HGB/HWB-726 |
HGB/HWB-726D |
776*534*530 |
726*848*220 |
1500m3/h |
400*200 |
|
HGB/HWB-915 |
HGB/HWB-915D |
965*660*460 |
915*610*150 |
1500m3/h |
500*250 |
|
HGB/HWB-968 |
HGB/HWB-968D |
1018*534*530 |
968*484*220 |
2000m7h |
500*200 |
|
HGB/HWB-1220 |
HGB/HWB-1220D |
1270*660*460 |
1220*610*150 |
2000m7h |
500*200 |
|
HGB/HWB-945 |
HGB/HWB-945D |
995*680*530 |
945*630*220 |
2200m7h |
500*250 |
|
HGB/HWB-1260 |
HGB/HWB-1260D |
1310*680*530 |
1260*630*220 |
3000m3/h |
600*250 |
Note: According to user requirements, different specifications and models of filters can be customized.
