Products description

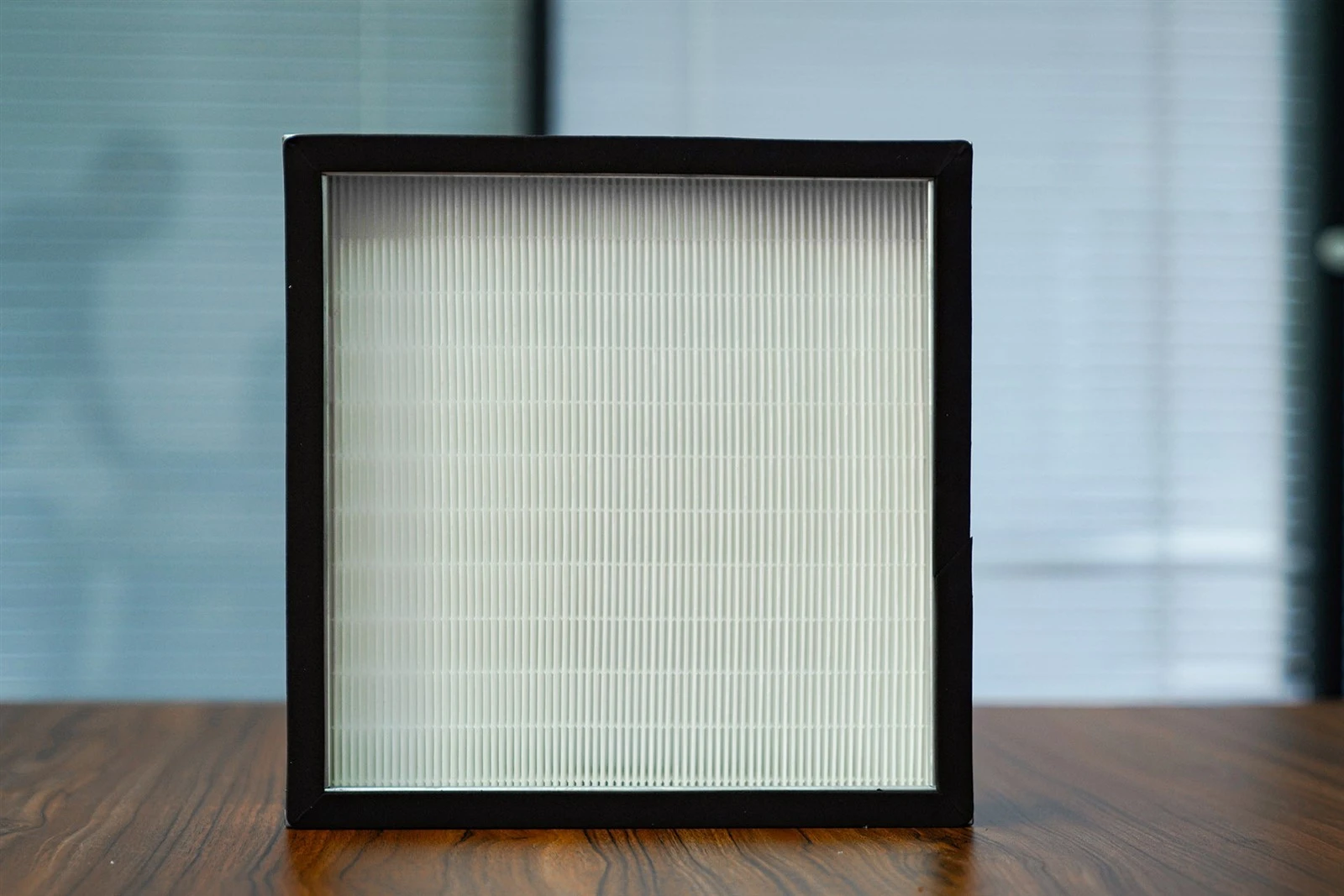

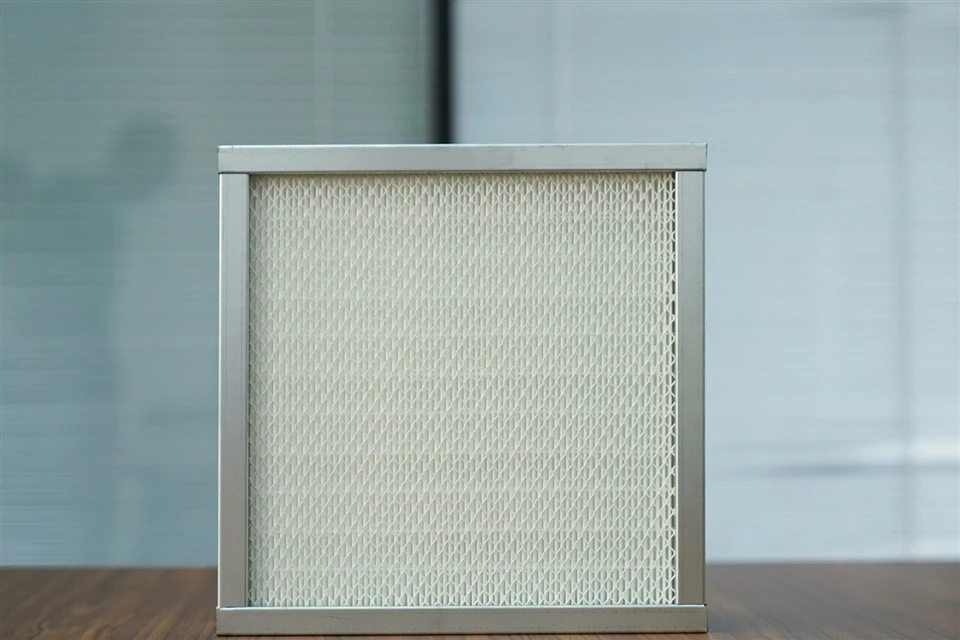

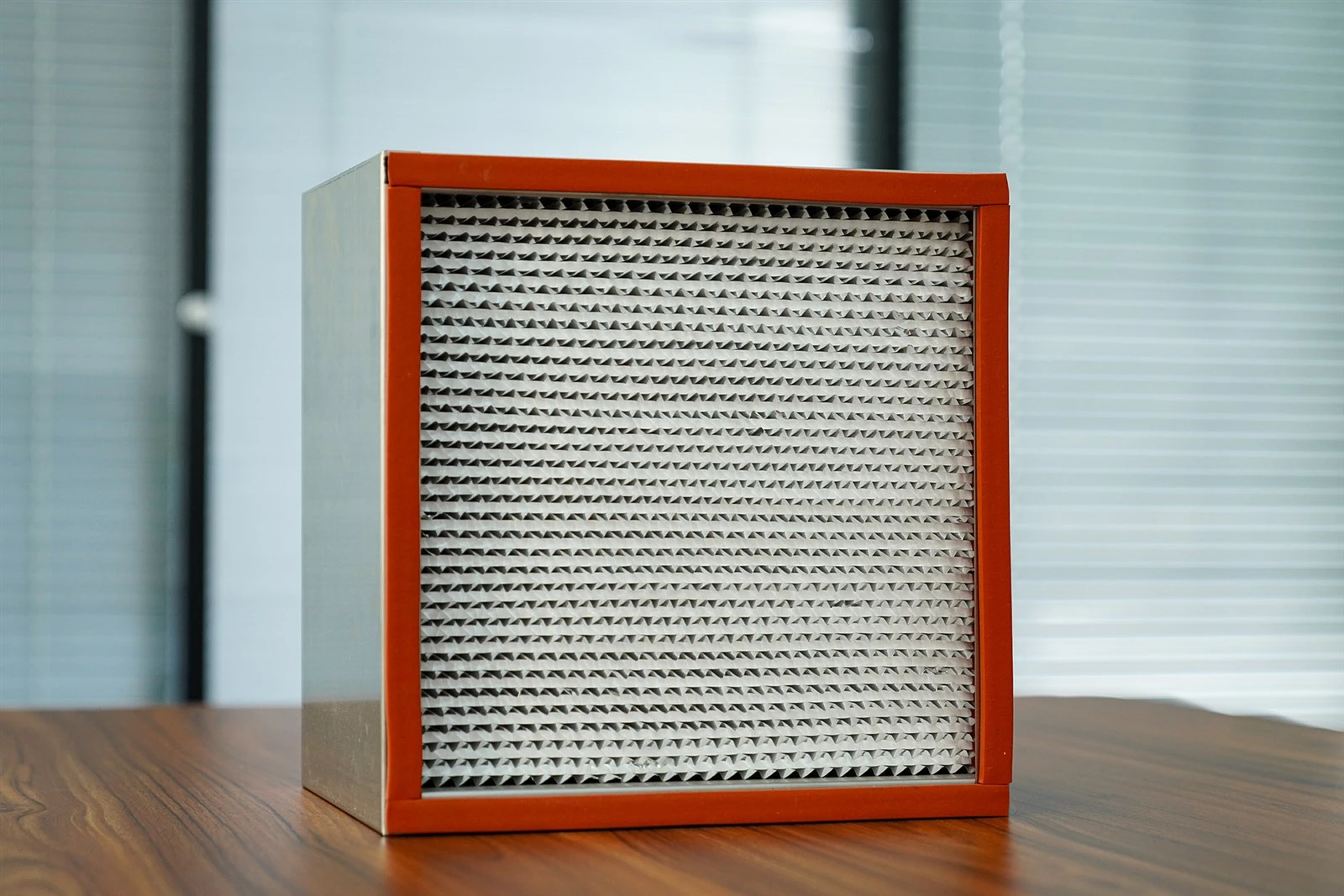

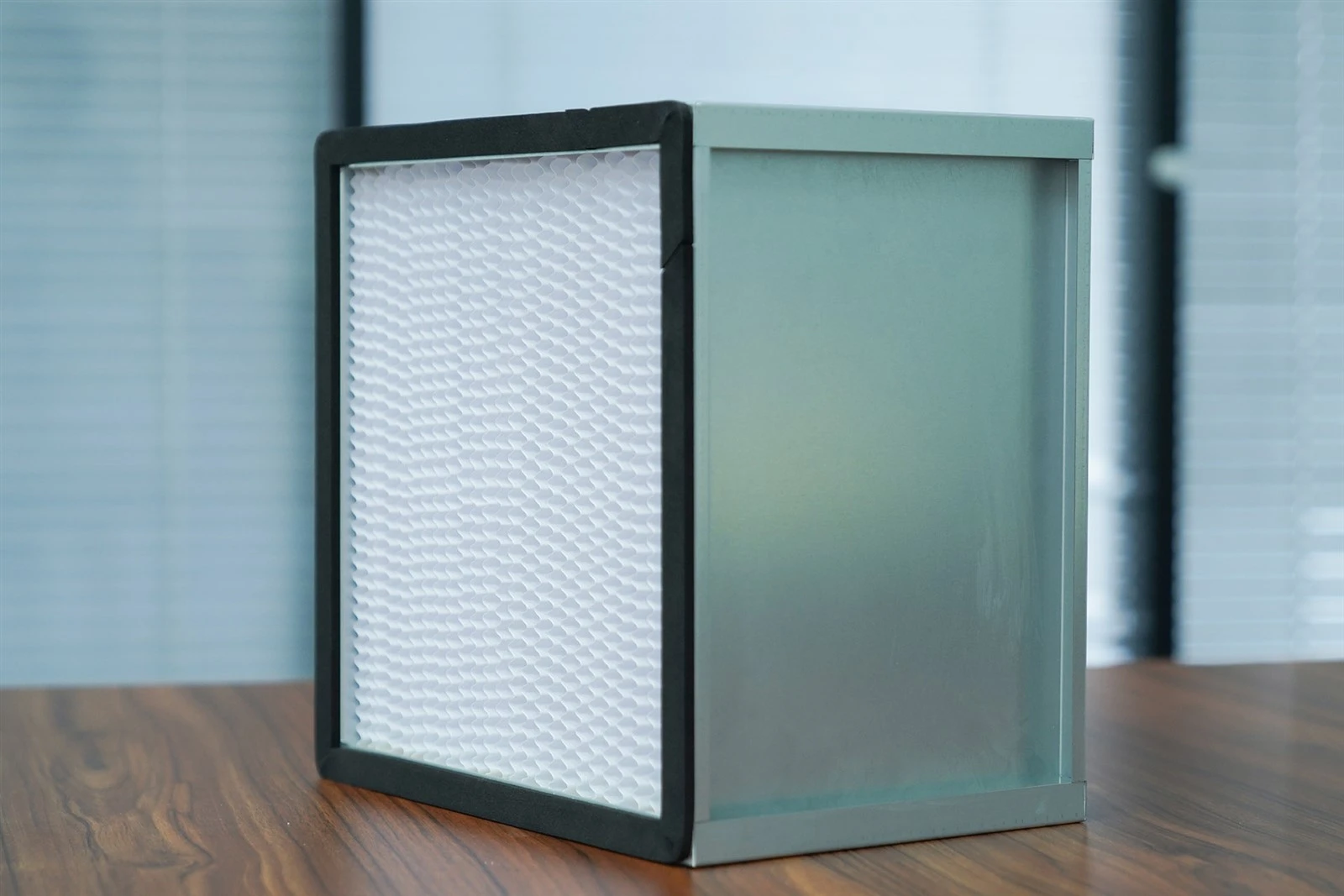

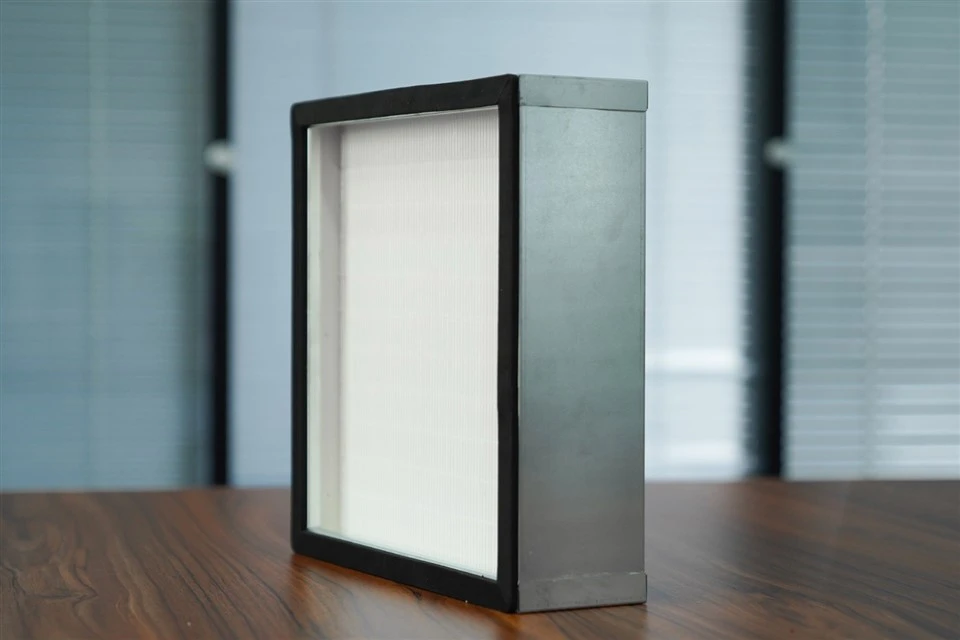

Customized High-Efficiency HVAC HEPA Panel Filters (99.99% Efficiency)
Key Features:
HEPA Efficiency (99.99%)
Meets or exceeds HEPA H13/H14 standards, ensuring filtration of ≥99.99% of particles ≥0.3µm (e.g., dust, pollen, bacteria, viruses, and PM2.5).
Ideal for critical environments like cleanrooms, hospitals, pharmaceuticals, and semiconductor manufacturing.
Custom Panel Design
Tailored dimensions (width, height, depth) to fit specific HVAC systems or air handling units (AHUs).
Options for gasketed frames, gel-sealed edges, or knife-edge designs to prevent air bypass.
Material choices: aluminum, galvanized steel, or stainless steel frames for durability.
Low Pressure Drop & High Airflow
Optimized mini-pleat or V-bank filter media reduces resistance while maintaining efficiency.
Suitable for variable air volume (VAV) systems and high-flow HVAC applications.
Long Service Life
High dust-holding capacity extends filter lifespan, reducing replacement frequency.
Recommended for 24/7 operations in clean environments.
Compliance & Certifications
Adheres to EN 1822, ISO 29463, or ASHRAE 52.2 standards.
Optional third-party testing (e.g., DOP/PAO scan test) for validation.
Applications:
Healthcare: Operating rooms, isolation wards, and sterile compounding areas.
Pharmaceuticals: Aseptic manufacturing, cleanrooms (ISO Class 5–8).
Electronics: Semiconductor fabrication, disk drive production.
Biotech: Labs, vaccine manufacturing, and BSL-3/4 facilities.
Commercial: Data centers, museums, and high-end offices.
Why Choose Custom HEPA Panel Filters?
Space Efficiency: Panel filters fit standard HVAC filter racks, unlike bulky cartridge or bag filters.
Cost-Effective: Lower upfront cost compared to ULPA filters while meeting stringent efficiency needs.
Scalability: Suitable for small HVAC units or large-scale industrial air handlers.
Technical Specifications (Example):
| Parameter | Value |
|---|---|
| Efficiency | ≥99.99% (MPPS 0.1–0.3µm) |
| Media Type | Glass fiber or PTFE membrane |
| Frame Material | Aluminum / Galvanized Steel |
| Max. Operating Temp. | Up to 80°C (176°F) |
| Initial Pressure Drop | ≤250 Pa (1.0" W.G.) |
| Certifications | EN 1822, ISO 29463, UL 900 |
Conclusion:
Custom HEPA panel filters with 99.99% efficiency are the gold standard for applications requiring ultra-clean air. Their modular design, high performance, and compliance with global standards make them ideal for industries where air quality directly impacts safety, product quality, or operational efficiency.
For tailored solutions, consult a manufacturer that offers custom sizing, testing, and certification to meet your specific needs.
