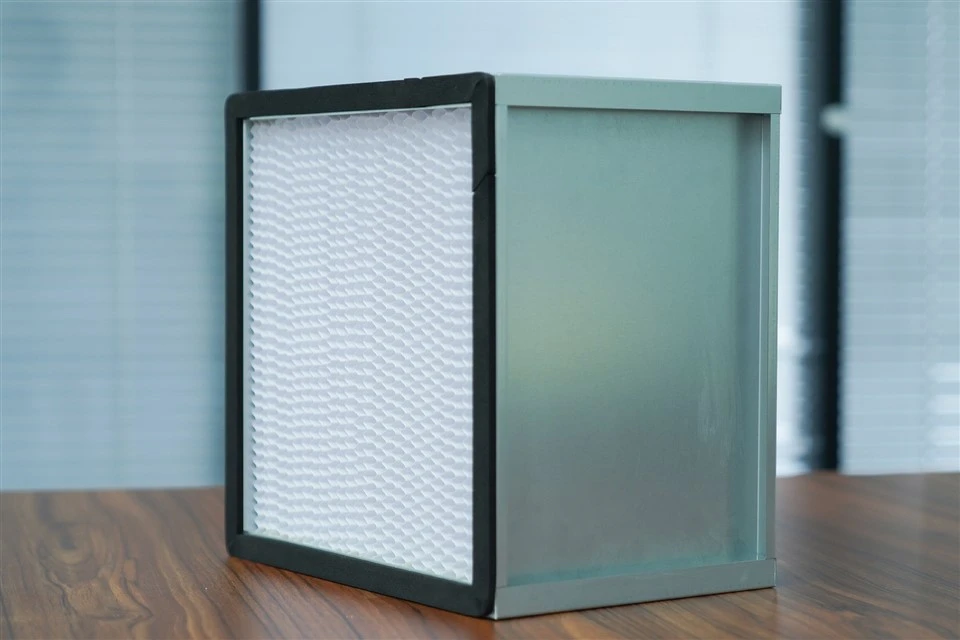

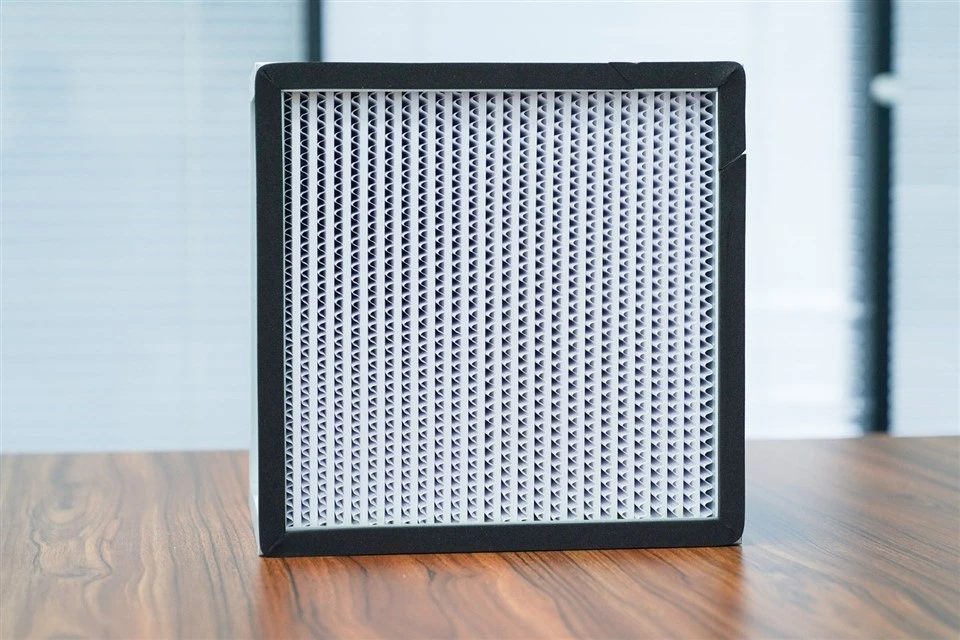

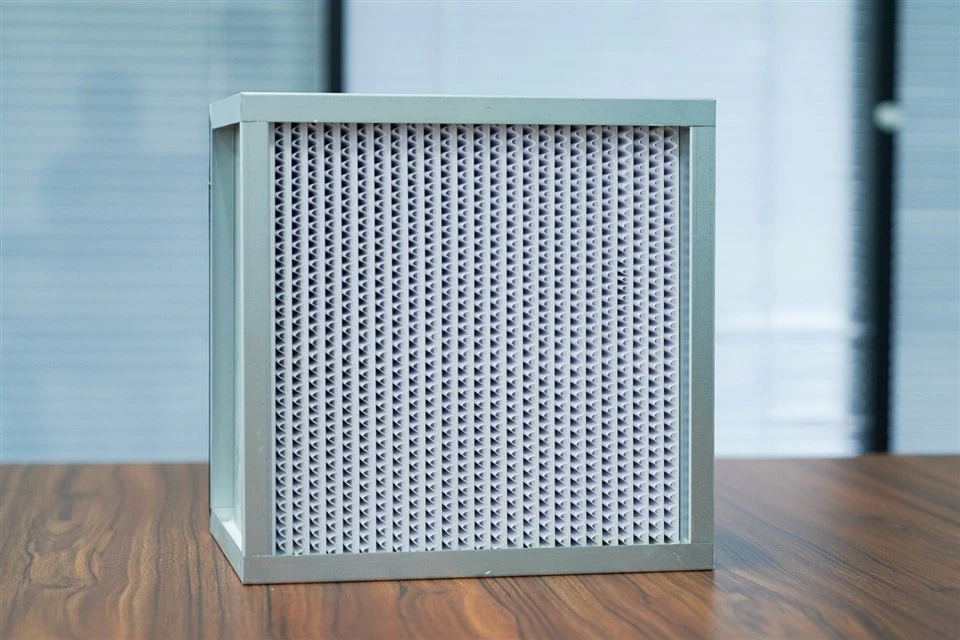

The Low Pressure Drop Deep Pleat HEPA Filter with Clapboard for Dust Collector is a specialized high-efficiency particulate air (HEPA) filter designed for industrial dust collection systems. Below is a detailed breakdown of its features, benefits, and applications:
Key Features
Deep Pleat Design
The filter media is folded into deep pleats, increasing the surface area without enlarging the filter size.
This design enhances filtration efficiency while maintaining a compact footprint.
Low Pressure Drop
Optimized airflow paths and aerodynamic pleat spacing minimize resistance, reducing energy consumption.
Lower pressure drop extends filter life and decreases operational costs.
Clapboard (Separator) Technology
Integrated clapboards (corrugated separators) between pleats prevent media collapse and ensure even airflow distribution.
This maintains structural integrity and prevents clogging, even under high dust loads.
HEPA Filtration Efficiency
Captures 99.97% of particles ≥0.3 microns, meeting HEPA standards (H13/H14 grades available).
Effective for fine dust, smoke, fumes, and other submicron contaminants.
Durable Construction
Heavy-duty frame (galvanized steel, aluminum, or plastic) resists corrosion and mechanical stress.
Moisture-resistant media options available for humid environments.
Easy Maintenance
Some models feature pull-out designs or quick-release mechanisms for hassle-free replacement.
Gasketed seals ensure airtight installation, preventing bypass leaks.
Benefits
Energy Efficiency: Low pressure drop reduces fan/motor workload, lowering electricity costs.
Long Service Life: Deep pleats and clapboards extend filter lifespan, reducing replacement frequency.
High Dust Holding Capacity: Suitable for continuous operation in heavy-duty applications.
Compliance: Meets regulatory standards for cleanroom, pharmaceutical, and food processing environments.
Versatility: Compatible with baghouse, cartridge, and downdraft dust collectors.
Applications
Industrial Manufacturing: Metalworking, welding, cement, and woodworking dust control.
Pharmaceuticals & Biotech: Sterile environments requiring HEPA-grade filtration.
Food & Beverage: Dust and particulate removal in processing facilities.
Aerospace & Automotive: Paint booth exhaust and composite material dust collection.
Power Generation: Coal-fired plant fly ash and boiler dust filtration.
Technical Specifications (Example)
| Parameter | Details |
|---|---|
| Efficiency | 99.97% @ 0.3μm (H13/H14) |
| Media | Glass fiber, synthetic blend |
| Max. Temperature | 80°C (176°F) [varies by model] |
| Max. Humidity | 90% RH (non-condensing) |
| Frame Material | Galvanized steel, aluminum, or plastic |
| Pressure Drop | ≤250 Pa (initial) at rated airflow |
| Dimensions | Customizable (standard sizes available) |
Selection Considerations
Airflow Requirements: Match filter size to dust collector CFM (cubic feet per minute).
Dust Type: Abrasive or sticky particles may require coated media or anti-static features.
Environmental Conditions: Temperature, humidity, and chemical exposure.
Certifications: Look for UL, CE, or ISO 9001 compliance for quality assurance.
Maintenance Tips
Regular Inspection: Check for damage, leaks, or excessive pressure drop.
Pulse Cleaning: For self-cleaning systems, optimize pulse duration and frequency.
Replacement Schedule: Follow manufacturer guidelines based on dust load and pressure drop.
This filter is ideal for applications demanding high efficiency, low energy use, and reliable performance in harsh industrial settings. For specific models or custom designs, consult with manufacturers like Camfil, Donaldson, or AAF International.
