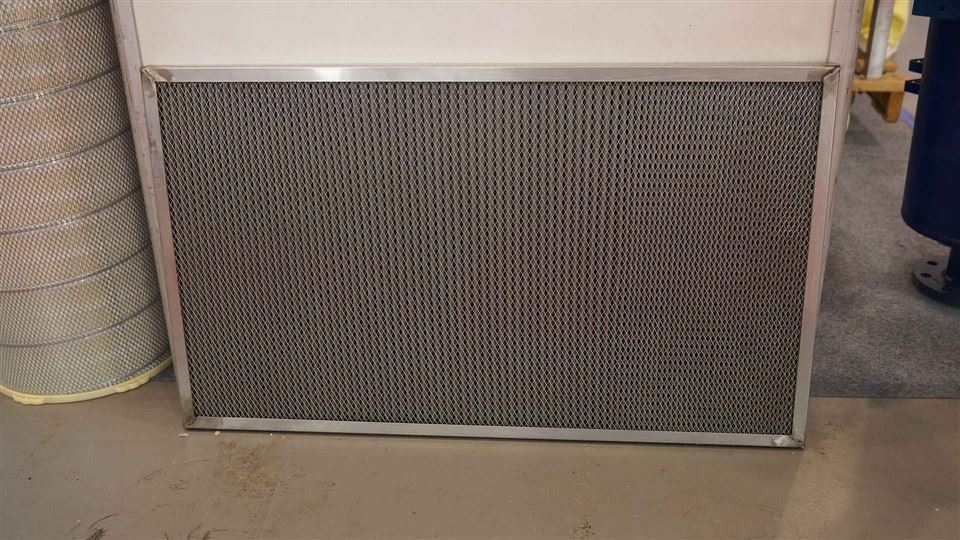

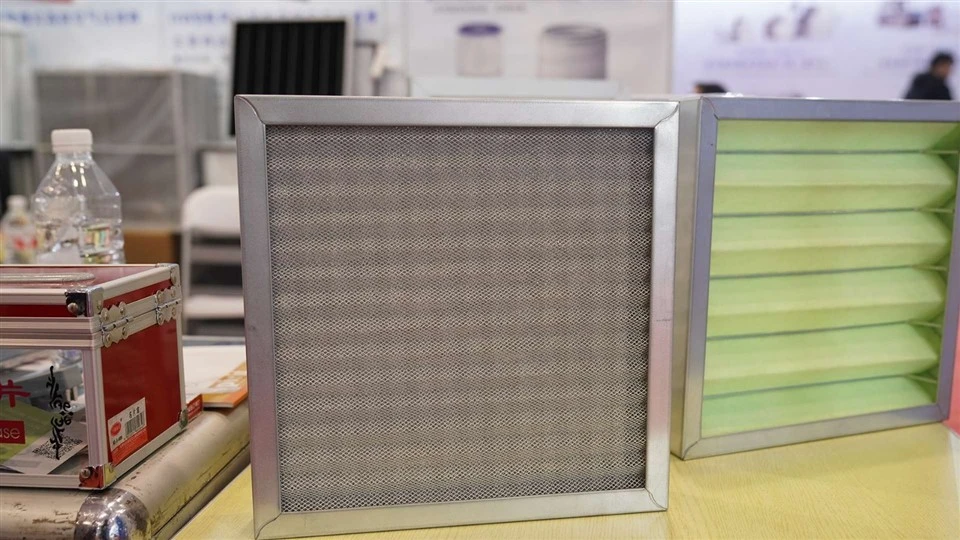

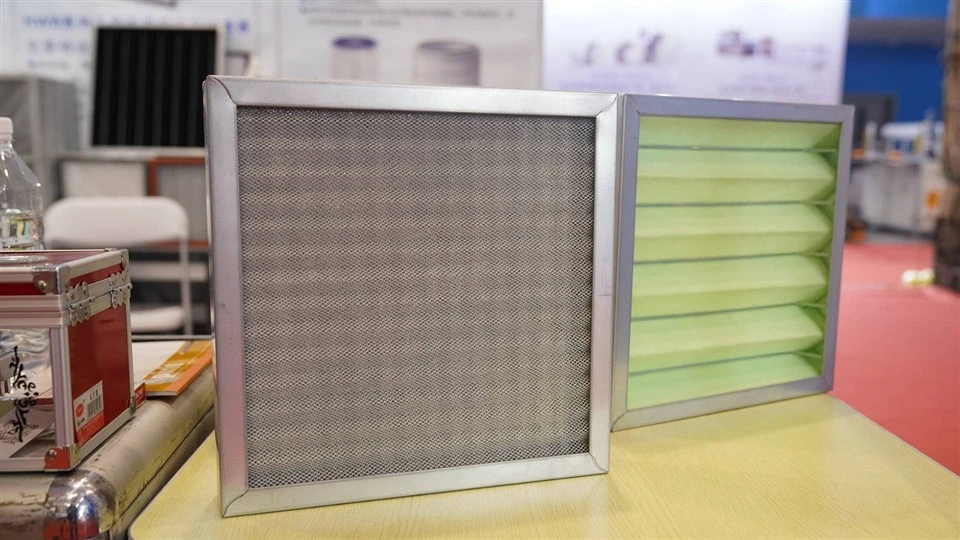

Analysis of Metal Frame Wire Mesh Washable Pre Air Filter for Industrial Dust
I. Core Structure and Material Characteristics
Frame Materials
Aluminum frame: Lightweight and corrosion-resistant, suitable for conventional industrial environments.
Stainless steel frame: High-strength and high-temperature resistant (up to 400°C), suitable for acid-alkali corrosion or extreme temperature scenarios (e.g., metallurgy, cement industry).
Galvanized frame: Cost-effective, suitable for ventilation systems with moderate humidity and no strong corrosion.
Filter Media Design
Multi-layer corrugated aluminum/stainless steel mesh: Forms a gradient pore structure through cross-layered arrangement, enabling multiple directional changes in airflow to enhance dust capture efficiency.
Washability: Smooth filter surface allows easy dust removal, supporting water or air gun cleaning for cost-effective reuse.
Temperature resistance: Aluminum mesh withstands 250°C; stainless steel mesh withstands 400°C, meeting high-temperature operational requirements.
II. Performance Parameters and Standards
Filtration Efficiency
EN779 standard: G3 (average gravimetric efficiency 65%-80%), G4 (MERV6-7, ≥90% efficiency for particles ≥5μm).
Application: Acts as primary filtration to protect downstream high-efficiency filters (e.g., HEPA) and extend their lifespan.
Resistance and Airflow
Initial pressure drop: ≤20Pa (G3 grade), low-resistance design reduces system energy consumption.
Rated airflow: Single filter handles 1,600-3,200m³/h depending on size, compatible with large air compressors and ventilation systems.
Lifespan and Maintenance
Service life: 2-4 years under dust concentration ≤50mg/m³ and temperature ≤80°C (1.5-2x longer than traditional media).
Maintenance cost: Washable design reduces replacement frequency, cutting costs by 30%-50%.
III. Application Scenarios and Industry Compatibility
Industrial Ventilation and HVAC Systems
Primary filtration: Used in HVAC systems for buildings and industrial plants to intercept coarse dust (e.g., PM10) and prevent downstream equipment blockage.
High-temperature resistance: Suitable for filtering exhaust gases at 220-280°C from cement kilns and metallurgical smelters.
Specialized Environmental Filtration
Corrosive gases: Stainless steel frame + PTFE-coated filter media resist acidic gas corrosion in chemical and electroplating industries.
Flammable/explosive dust: Flame-retardant media (e.g., Nomex) meet safety requirements for dust explosion-prone environments.
Typical Use Cases
Automotive wax spray booths: Filters wax mist particles to prevent pipeline blockage and extend equipment lifespan.
Paint spray booths: Intercept paint droplets to improve workshop air quality and reduce employee health risks.
IV. Key Selection Parameters
Flow Matching
Select filter size (e.g., 592×592×46mm) based on air compressor displacement to ensure inlet airflow matches host requirements.
Pressure Drop Control
Initial pressure drop should be ≤500Pa; replace filter if pressure exceeds 1,000Pa to avoid 5%-15% energy consumption increase.
Material Adaptation
Humid environments: Choose corrosion-resistant coated media (e.g., galvanized frame + aluminum mesh).
High-temperature environments: Opt for stainless steel frame + fiberglass media (temperature resistance up to 400°C).
High-precision requirements: Supports customization for 1-10μm accuracy to meet cleanliness standards in electronics and pharmaceuticals.
