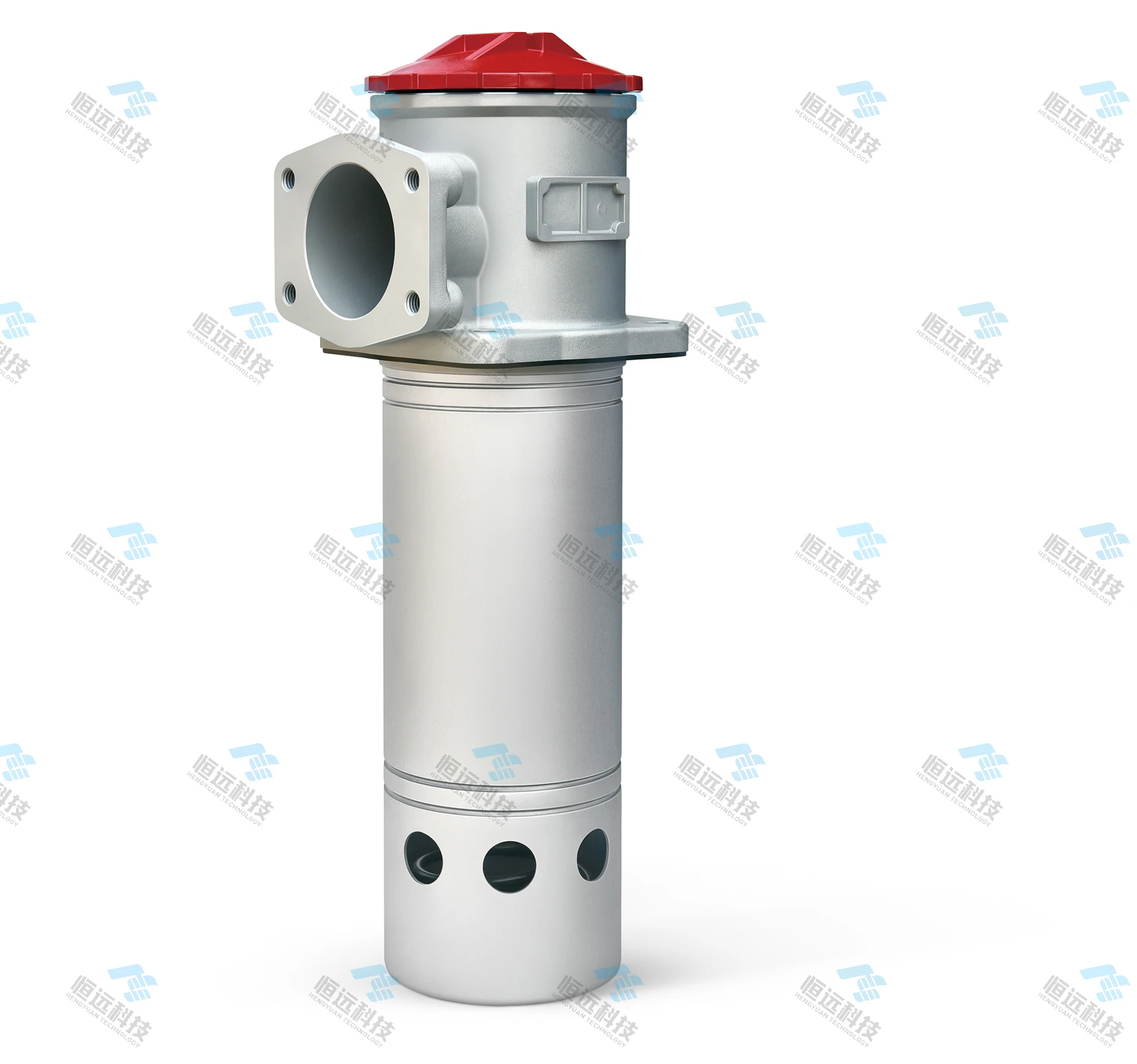

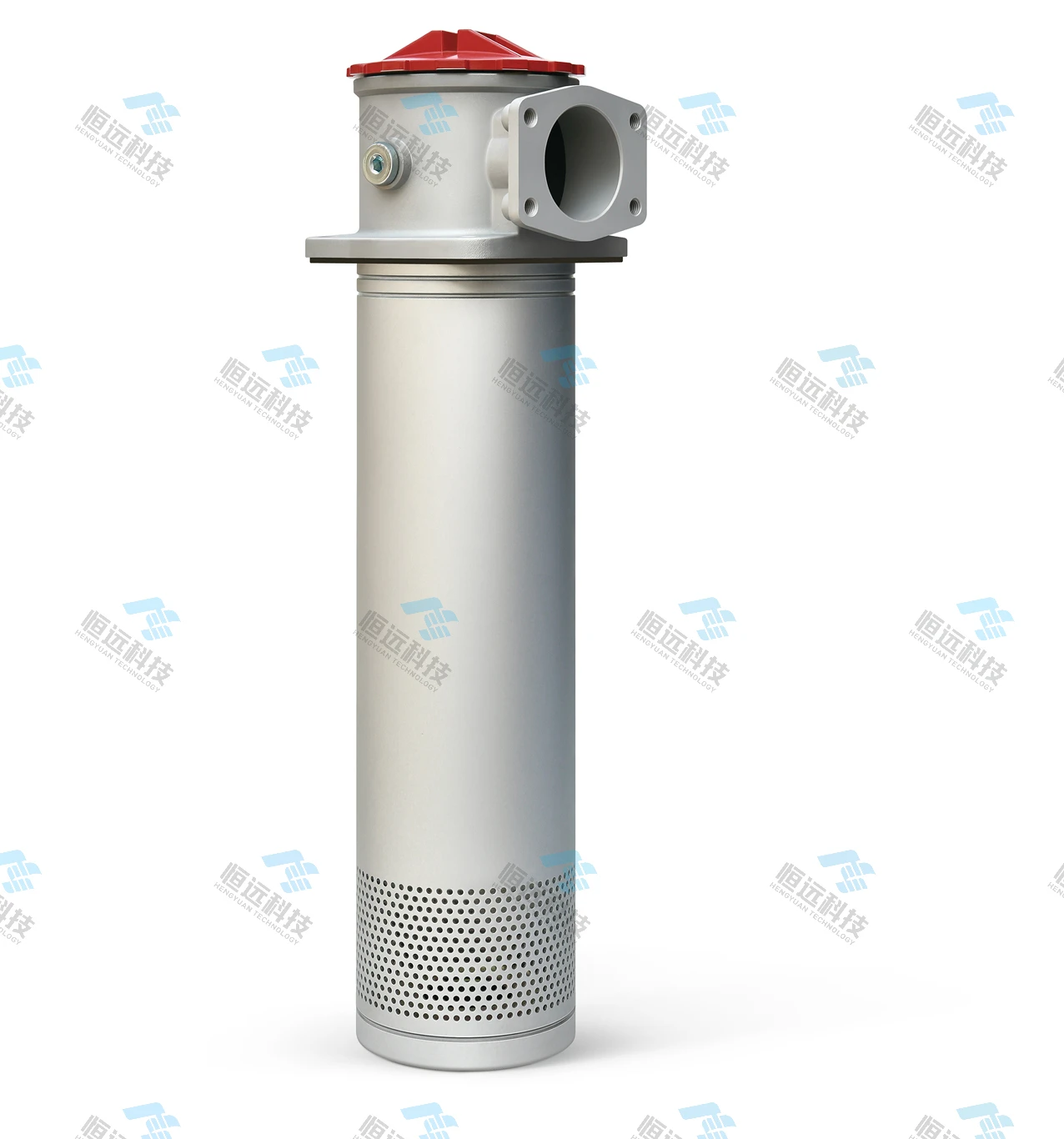

Precision Direct Back Hydraulic Return Line Oil Filter
Products Description
The RFA Series Direct Back Return Line Hydraulic Oil Filter is a high-performance filtration device tailored for Hydraulic Systems. It serves as a crucial component to maintain oil cleanliness and system stability.
Performance and characteristics:
Structural Design
As a Return Line Filter, it adopts the Direct Back Return structure, installed on the oil tank top with partial cylinder immersion. This
design ensures efficient oil flow and filtration while enabling easy maintenance.
Function and Performance
This Hydraulic Oil Filter excels in removing contaminants like metal particles and rubber impurities from hydraulic oil. Its filtration capability keeps the oil in Hydraulic Systems clean, preventing component wear and system failures.
4. Application Scenarios
Widely used in Hydraulic Systems across industries such as engineering machinery, metallurgy, and mining, the RFA Series Direct Back Return Line Hydraulic Oil Filter guarantees reliable operation by maintaining optimal oil quality.
Model, Size and Technical Parameters
| Filter model | Flow rate (L/min) | Filter (μm) | Dia (mm) | Nominal pressure (MPa) | Pressure loss (MPa) | Communication device | Weight (kg) | Filter element | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Initial | Max | V | A | |||||||
| RFA-25×L-C/Y | 25 | 15 | 0.85 | FAX-25×× | ||||||
| RFA-40×L-C/Y | 40 | 1 | 20 | 0.9 | FAX-40×× | |||||
| RFA-63×L-C/Y | 63 | 25 | 1.5 | FAX-63×× | ||||||
| RFA-100×L-C/Y | 100 | 3 | 32 | 12 | 2.5 | 1.7 | FAX-100×× | |||
| RFA-160×L-C/Y | 160 | 5 | 40 | 1.6 | ≤0.075 | 0.35 | 24 | 2 | 2.7 | FAX-160×× |
| RFA-250×F-C/Y | 250 | 10 | 50 | 36 | 1.5 | 4.35 | FAX-250×× | |||
| RFA-400×F-C/Y | 400 | 20 | 65 | 6.15 | FAX-400×× | |||||
| RFA-630×F-C/Y | 630 | 30 | 90 | 220 | 0.25 | 8.2 | FAX-630×× | |||
| RFA-800×F-C/Y | 800 | 90 | 8.9 | FAX-800×× | ||||||
| RFA-1000×F-C/Y | 1000 | 90 | 9.96 | FAX-1000×× |
Note: Different specifications and models can be customized according to user requirements.
