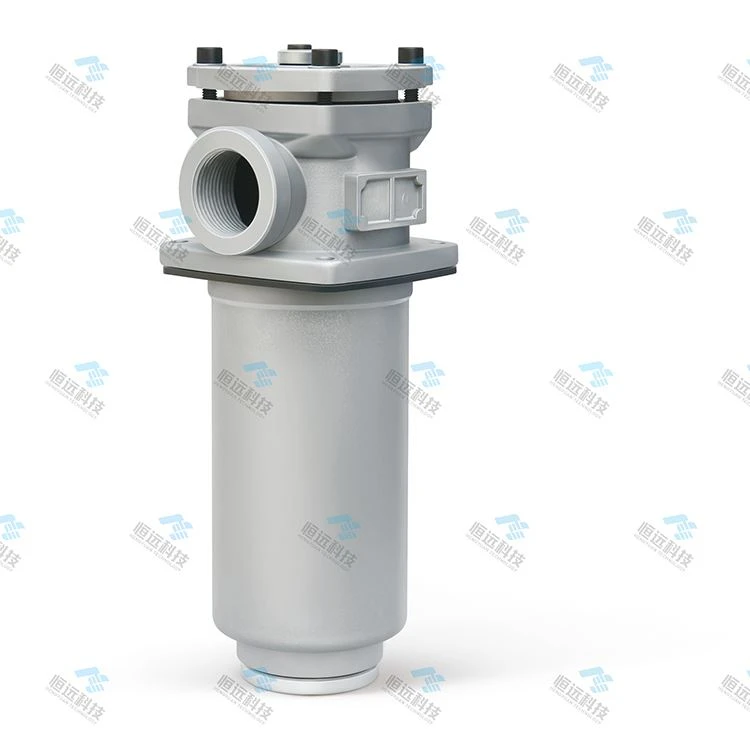

RF Series Direct Mount Tank Top Hydraulic Return Line Filter
The RF Series Direct Back Return Line Filter is a precision fine filtration component for hydraulic system return oil circuits. It removes metal abrasive particles from hydraulic components and rubber debris from sealing elements, maintaining the cleanliness of oil flowing back to the tank and extending the service life of hydraulic pumps, valves and other precision parts.
Core Features
Flexible Installation Methods Two installation options available: direct mounting on the oil tank cover plate, or pipeline connection via external pipes, adapting to various hydraulic station layout designs.
High-Performance Glass Fiber Filter Element
Raw material: glass fiber media calibrated by absolute filtration accuracy
Key strengths: high filtration precision, large oil flow capacity, low initial pressure loss, big dirt holding capacity
Standard filtration grades: β3, β5, β10, β20; filtration efficiency ≥99%, fully compliant with ISO hydraulic filter standards.
aPPLICATION
General industrial hydraulic stations, machine tool hydraulic systems
Injection molding machines, hydraulic presses, metallurgical equipment lubrication systems
Construction machinery, agricultural machinery hydraulic oil return filtration
Any hydraulic system requiring terminal return oil fine purification
