Introduction
High efficiency filter is a high efficiency air filter specially designed for high temperature environment, with excellent high temperature resistance and efficient filtration effect. In China, this kind of air filter is widely used in aerospace, military, petrochemical, nuclear industry and other high temperature and high pollution environment.

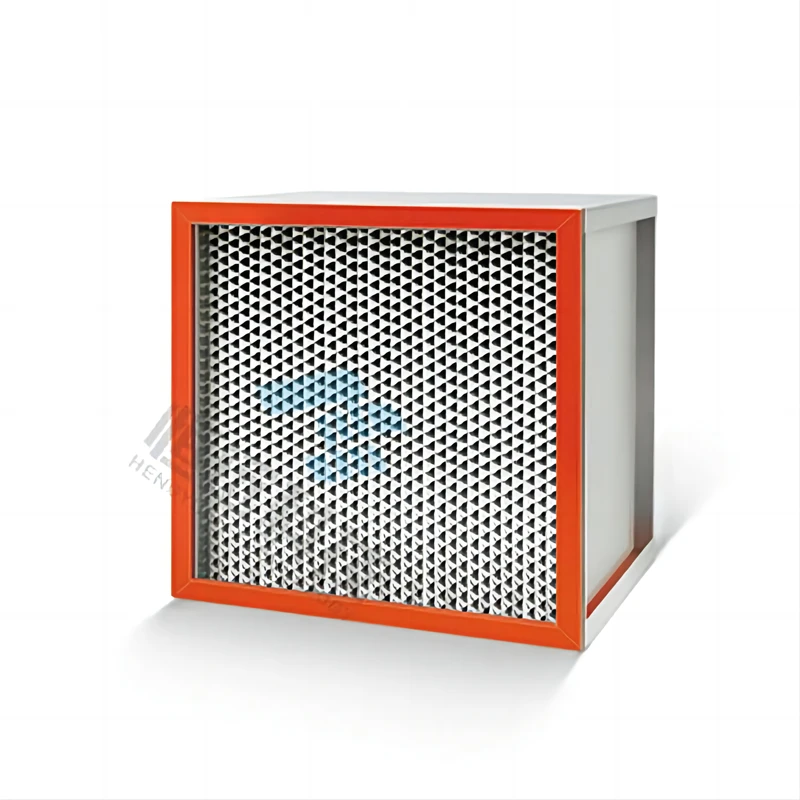

HNW series high temperature resistant high efficiency air filter adopts advanced filtration materials and technology, so that it can still maintain good filtration performance in high temperature environment. Its main features include:
1. High temperature resistant materials: HNW series air filter adopts special high temperature resistant material, which can work continuously at temperatures up to 400℃ to ensure that the filter will not deform, burn or release harmful substances in high temperature environment.
2. High efficiency: HNW series air filters adopt multi-layer filtration technology, including high efficiency glass fiber, activated carbon fiber, etc., which has a high filtration effect on particulate matter, harmful gases, microorganisms in the atmosphere, to ensure that the air quality meets the relevant national standards.
3. Corrosion resistance: HNW series air filter has good corrosion resistance, which can effectively resist the damage of acid, alkali, salt and other corrosive gases, and prolong the service life of the filter.
4. Easy to maintain: HNW series air filter adopts modular design, convenient replacement of filter element and cleaning, and reduces the use cost.
5. Intelligent control: HNW series air filter can be equipped with sensors and control system to realize automatic monitoring and adjustment of air volume, pressure and other parameters, to ensure that the filter operates in the best working state.
6. Widely used: HNW series high temperature resistant high efficiency air filter can be widely used in all kinds of high temperature, high pollution environment, such as engine compartment, turbocharger, industrial furnace, aerospace, etc.
Main Feature
●High efficiency and low resistance.
●Large dust capacity, good wind speed uniformity performance.
●Estable high-temperature resistance.
●Suitable for equipment and purification systems requiring high temperature dir purification such as ultra clean ovens.
Composition materials and operating conditions
|
Frame material |
Stainless steel |
|
Sealants |
High temperature resistant silicone |
|
Partition |
Aluminum partition |
|
Filter material |
Glass fiber filter paper |
|
Filtration efficiency |
productiveness |
Model, size and technical parameters
|
Filter model |
Overall dimensions |
Rated air flow (m3/h) |
Initial resistance (Pa) |
Filter area (m2) |
Efficiency (@ 0.3μm) |
|
HNW-10N |
484*484*220mm |
1000m3/h |
≤250Pa |
10.8m2 |
H14 |
|
HNW-4N |
320*320*220mm |
400m3/h |
4.8m2 |
||
|
HNW-15N |
630*630*220mm |
1500m3/h |
19.2m2 |
||
|
HNW-10N |
610*610*150mm |
1000m3/h |
15.3m2 |
||
|
HNW-18N |
610*610*290mm |
1800m7h |
22.5m2 |
||
|
HNW-15N |
915*610*150mm |
1500m3/h |
18.8m2 |
Note: According to user requirements, different specifications and models of filters can be customized.
