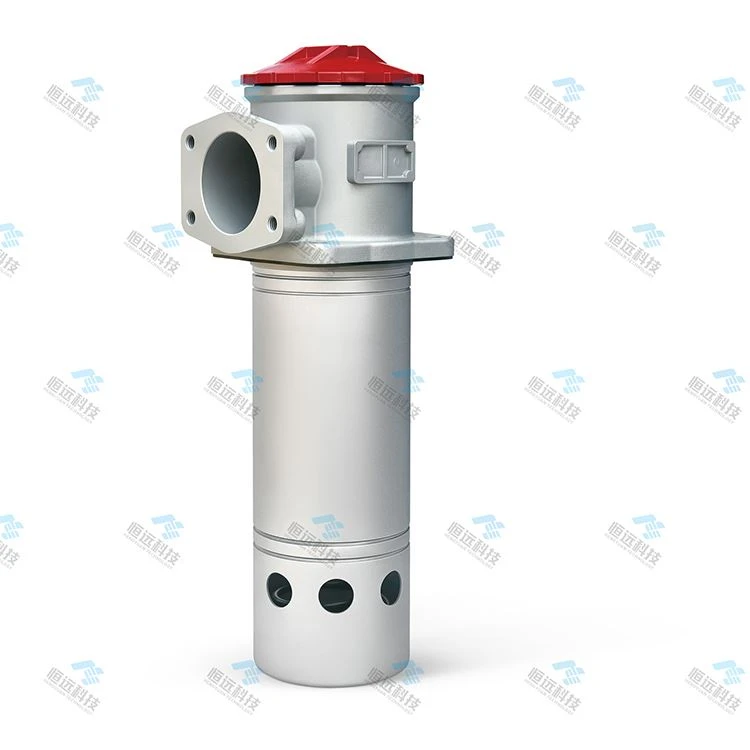

TF Series Self‑Sealing Oil Suction Filter For Hydraulic Oil Tank Side / Top / Bottom Installation

Introduction

TF series self‑sealing oil suction filter is installed at the suction port of oil pump to protect oil pumps and other hydraulic components. It prevents sucking‑in of contaminants, controls system pollution and improves hydraulic‑fluid cleanliness.

This filter can be directly mounted on the side, top or bottom of the hydraulic oil tank. The suction cylinder submerges inside the tank, while the filter head stays outside. When replacing or cleaning elements, oil inside the tank will not spill out. It features innovative structure, easy installation, high oil‑passing capacity, low resistance, and convenient element cleaning & replacement.

Main Features

External‑head self‑sealing design: Filter head sits outside tank, suction cylinder immersed in oil. No oil leakage during cartridge maintenance.

Protects oil pump from solid contaminants, improves cleanliness of hydraulic system.

Large flow capacity, low pressure loss.

Easy installation, simple cleaning and filter‑element replacement.

Multiple mounting positions: side‑mount, top‑mount or bottom‑mount on oil tank.

Application

For hydraulic stations, engineering machinery, machine tools and other hydraulic systems, fitted on pump suction line.
