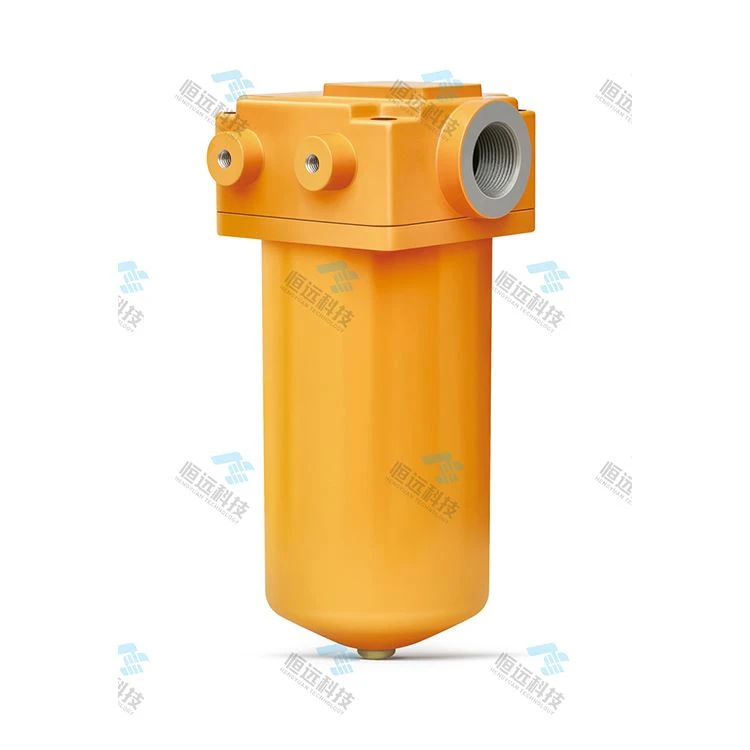

WU/XU Series Oil Suction Filter For Hydraulic Pump Inlet Coarse Filtration

Introduction

This is a coarse‑grade filter, normally mounted at the suction port of an oil pump. It protects the oil pump against large‑size mechanical contaminants. Featuring compact construction and easy installation, it delivers high oil‑flow capacity with low flow resistance. Two connection styles are available: pipe‑thread type and flange type; two element versions: split‑net type and line‑gap type.

Main Features

Installed on pump suction side for primary coarse filtration, safeguarding hydraulic oil pumps from big solid particles.

Compact housing, simple assembly & maintenance.

Large oil‑passing capacity, low resistance, less suction loss for the pump.

Multiple options: pipe / flange connection; split‑net & line‑gap filter element structures.

Application

Widely used for hydraulic stations, engineering machinery, machine‑tool hydraulic systems, for suction‑side protection of gear pumps, vane pumps and piston pumps.
