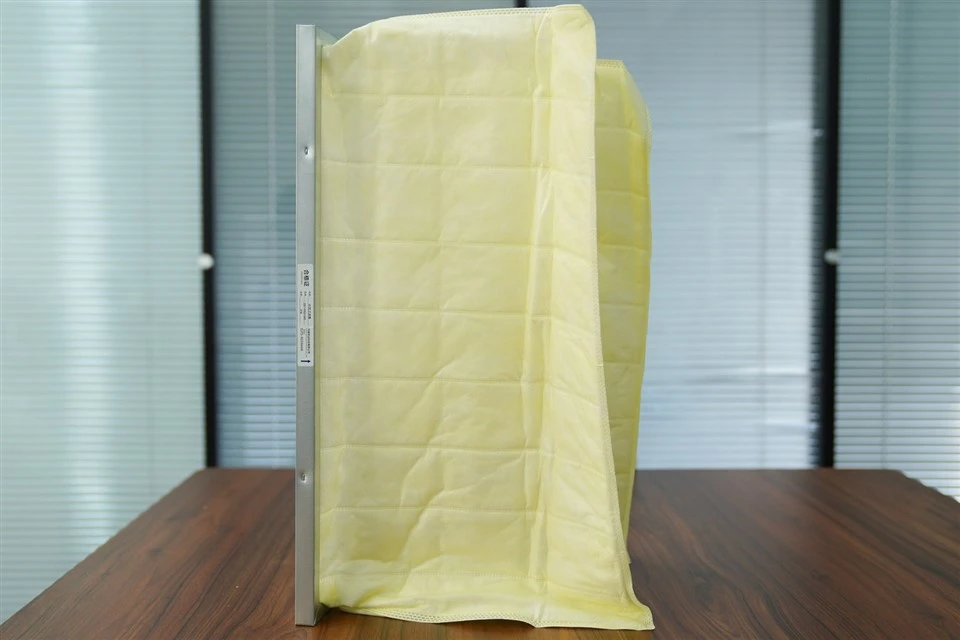

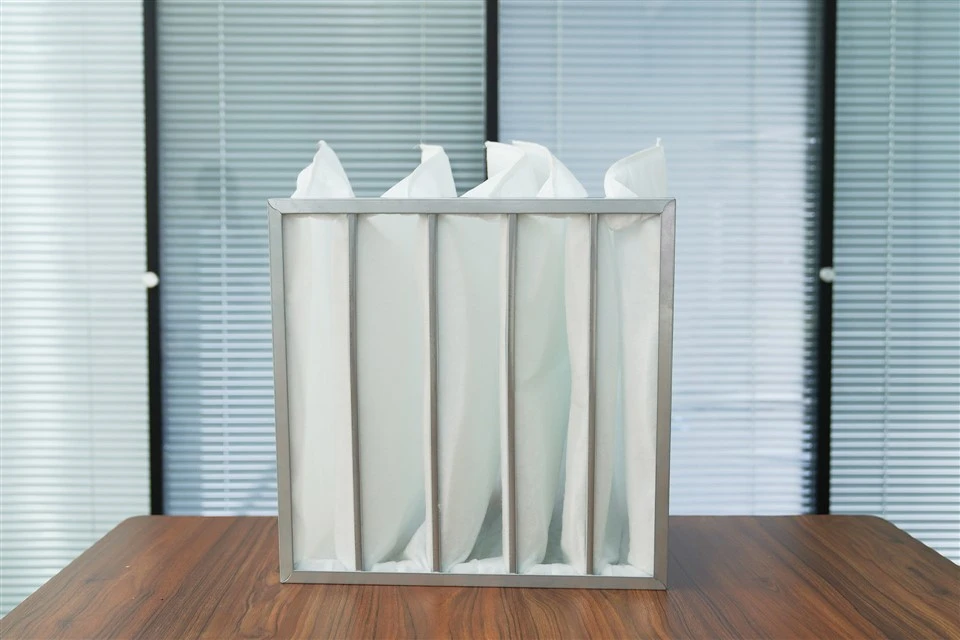

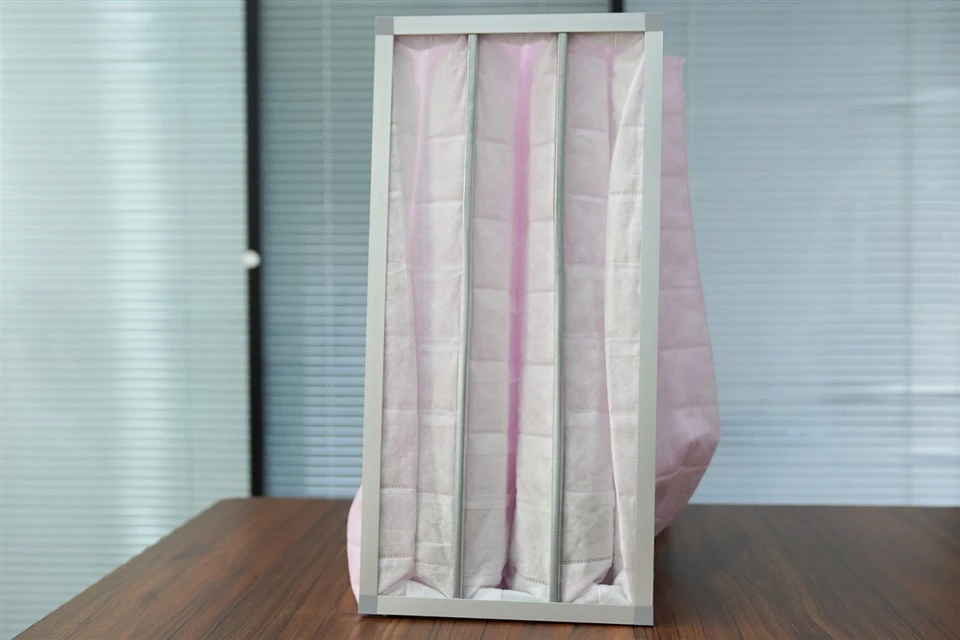

The aluminum frame synthetic fiber medium-efficiency bag air filter for purification air cabinets is a commonly used air purification device. Below is a detailed introduction to it:
I. Definition and Purpose
The aluminum frame synthetic fiber medium-efficiency bag air filter for purification air cabinets is an air filter that uses high-quality synthetic fiber as the filter medium, aluminum alloy profiles as the frame, and internally incorporates a spray-painted cold-drawn wire support frame. It is primarily used for medium-level filtration in central air conditioning and centralized air supply systems to protect the subsequent filters in the system and the system itself. Meanwhile, in places where the requirement for air purification cleanliness is not strict, air treated by the medium-efficiency filter can be directly delivered to users.
II. Features and Advantages
High-efficiency filtration: Medium-efficiency bag filters come in various efficiency specifications, including G4, F5, F6, F7, F8, and F9, capable of meeting filtration needs in different scenarios. Among them, F7-grade filters can remove 85% of particulate matter in the air.
Large dust capacity: Bag filters have a large effective filtration area and dust capacity, allowing them to maintain filtration effectiveness for an extended period and reducing the frequency of replacements.
Low resistance: The filters have low resistance and high ventilation capacity, ensuring smooth airflow and reduced energy consumption.
Easy replacement: Both the frame and support frame can be reused. When replacing the filter, only the filter bag needs to be changed, which is convenient and fast, reducing operational costs.
High safety: The use of synthetic fiber filter media avoids potential hazards to humans posed by older glass fiber materials.
III. Application Fields
Aluminum frame synthetic fiber medium-efficiency bag air filters for purification air cabinets are widely used in filtration systems in industries such as electronics, pharmaceuticals, healthcare, and food processing, as well as air conditioning systems in public places such as commercial buildings, theaters, stations, and airports.
IV. Maintenance and Care
Regularly check the filter's inlet surface for blockage by debris and the filter material surface for damage. If debris blocks the surface, it should be cleared; if the filter material surface is severely damaged, a new filter material or a new filter must be replaced and reinstalled.
During installation, ensure good sealing between the filter and the frame's crimping edge to prevent air leakage.
Do not strike the filter's surface with heavy objects or pull the filter material surface with force.
During installation, ensure that the length of the filter bag opening is perpendicular to the ground to ensure effective filtration of the airflow and increase service life.
Under rated airflow conditions, the filter needs to be replaced every 3 to 4 months; or, when the filter's resistance reaches above 400Pa, the filter must be replaced. If the filter uses washable filter material, the replaced filter material can be rinsed with water or a solution containing a neutral detergent, dried, and then reinstalled, but it can only be washed a maximum of two times before a new filter must be replaced.
In summary, aluminum frame synthetic fiber medium-efficiency bag air filters for purification air cabinets are indispensable equipment in air purification systems due to their high-efficiency filtration, large dust capacity, low resistance, ease of replacement, and high safety.
