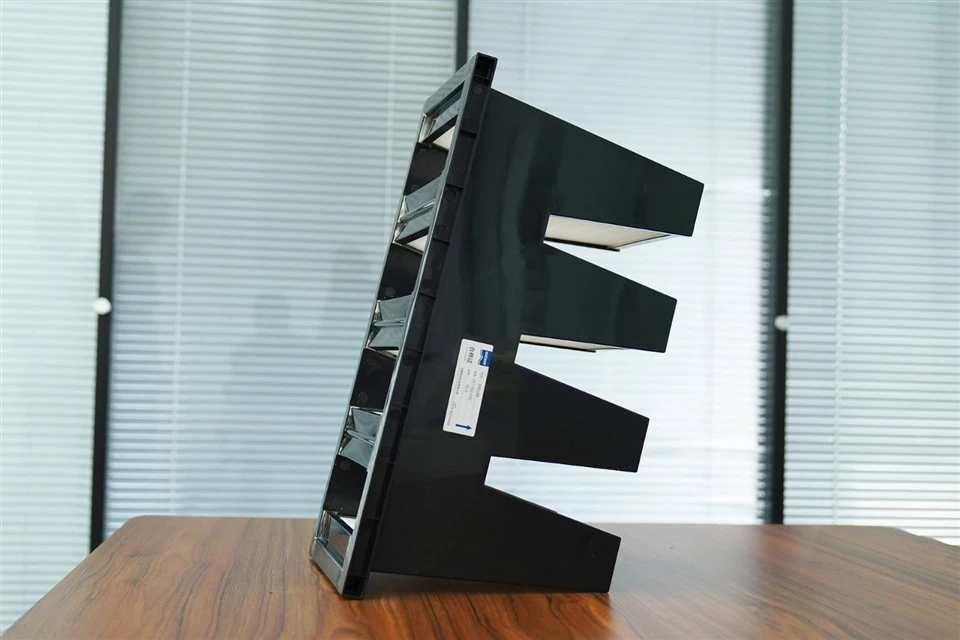

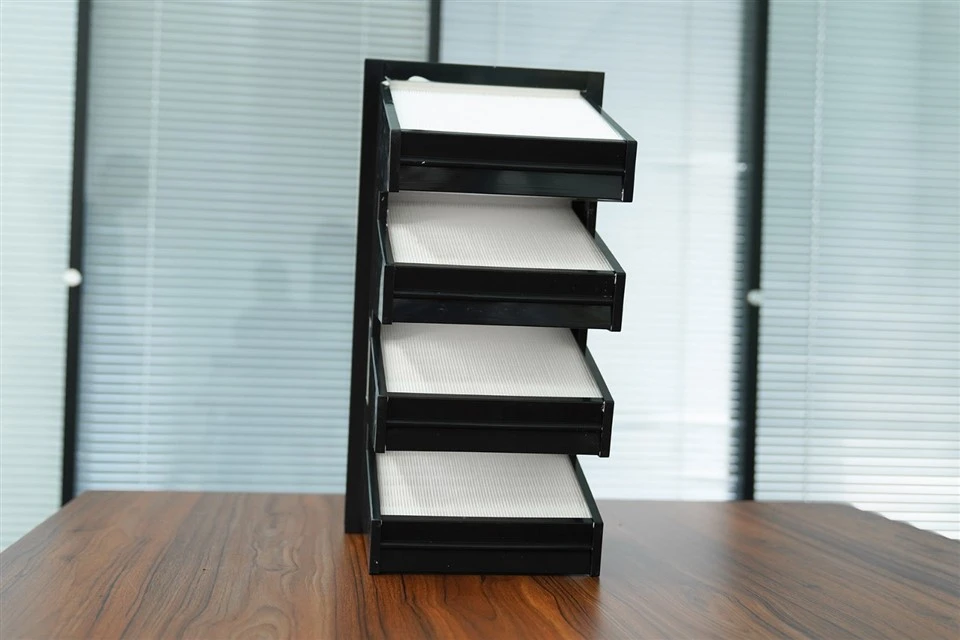

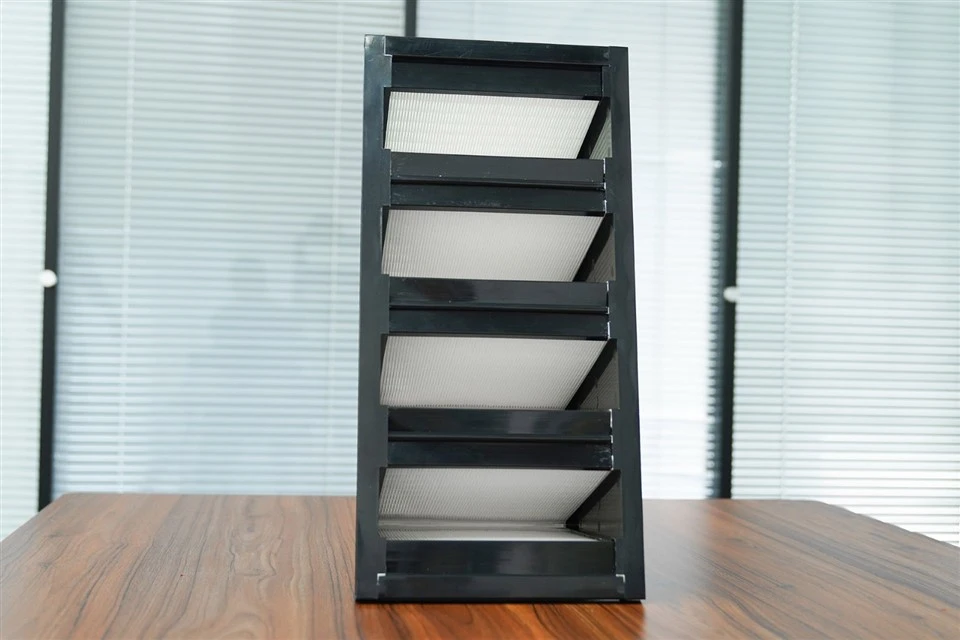

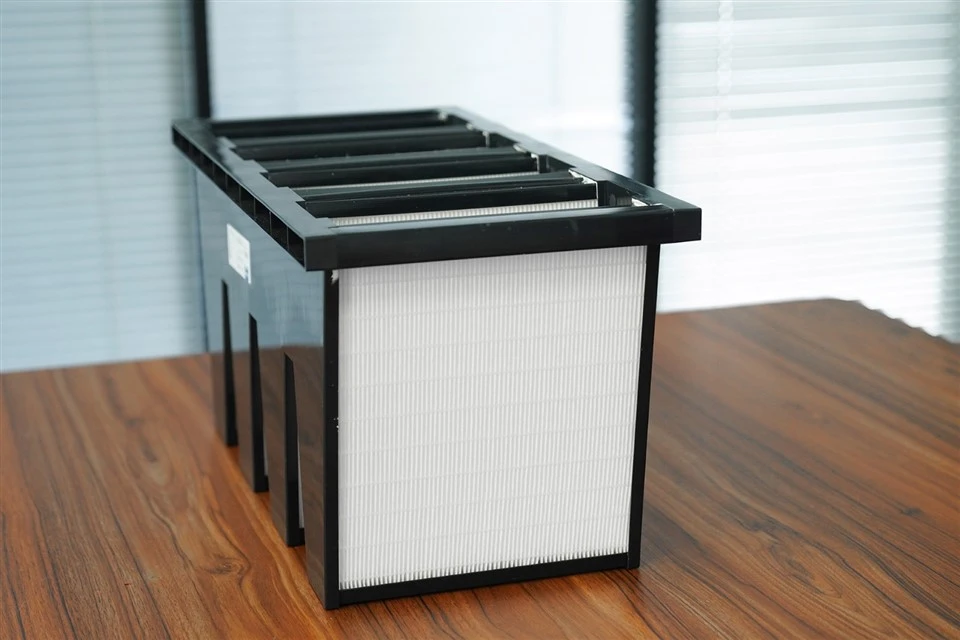

Here's a detailed breakdown of a Compact High-Capacity Dust V-Shaped Air Filter with a Plastic Frame and Dense Pleated Fiberglass Paper, designed for industrial livestock environments or similar high-dust applications:
1. Key Features & Benefits
V-Shaped Design:
Increased Surface Area: The V-pleats maximize filtration media exposure, boosting dust-holding capacity by 30–50% compared to flat-panel filters.
Low Pressure Drop: The angled pleats maintain airflow efficiency even as dust accumulates, reducing energy consumption.
Dense Pleated Fiberglass Paper:
High Efficiency: Captures 90–95% of particles ≥5 microns (MERV 8–10 rating), ideal for livestock dust (feed, dander, bedding).
Moisture Resistance: Fiberglass is less prone to mold growth than cellulose media in humid environments.
Plastic Frame:
Corrosion Resistance: Withstands ammonia and other gases common in livestock facilities.
Lightweight & Durable: Easy to handle and install; won't warp like cardboard frames.
Compact Size:
Fits tight spaces (e.g., retrofitting into existing ventilation systems).
Stackable design for modular installation in high-capacity systems.
2. Technical Specifications
| Parameter | Details |
|---|---|
| Media | Dense pleated fiberglass paper (electrostatically charged for enhanced capture). |
| Frame Material | High-impact plastic (e.g., ABS or polypropylene). |
| Pleat Design | V-shaped, 12–18 pleats per foot (depth: 2–4 inches). |
| Efficiency | MERV 8–10 (ASHRAE 52.2) or Eurovent Class M5–F6. |
| Dust Holding Capacity | 10–15 grams per m² (dependent on pleat density). |
| Max Temperature | 180°F (82°C) continuous operation. |
| Humidity Resistance | Up to 95% RH (non-condensing). |
| Dimensions | Customizable (standard sizes: 20"x20"x4", 24"x24"x6", etc.). |
3. Performance Advantages
Long Service Life: The V-pleats prevent premature clogging, extending filter life to 3–6 months in moderate-dust environments.
Energy Efficiency: Low pressure drop (≤0.5" w.g. at rated flow) reduces fan energy costs by 15–20% versus flat filters.
High Dust Capture: Fiberglass media resists shedding, ensuring trapped particles stay contained.
Easy Maintenance: Plastic frame is washable (gentle pressure spray) for reuse in some cases.
4. Applications
Livestock Facilities:
Poultry barns (reduces airborne feathers/dander).
Swine/cattle operations (controls feed dust and manure particles).
Industrial Settings:
Woodworking shops, grain processing, metalworking (captures coarse to medium dust).
Commercial HVAC:
Pre-filtration for rooftop units or air handlers in dusty regions.
5. Installation & Maintenance
Installation:
Seal gaps with gasket tape or foam strips to prevent bypass.
Install upstream of finer filters (e.g., HEPA) to protect them from large particles.
Maintenance:
Inspection: Check monthly for dust buildup or damage.
Replacement: Replace when pressure drop exceeds 1" w.g. (use a manometer to monitor).
Disposal: Fiberglass filters are non-biodegradable; recycle plastic frames if possible.
6. Cost-Benefit Analysis
Initial Cost: 15–40 per filter (depends on size/rating), similar to premium flat-panel fiberglass filters.
ROI:
Energy Savings: Lower pressure drop reduces electricity costs.
Extended Equipment Life: Protects fans and ductwork from abrasive dust.
Health Benefits: Reduces respiratory issues in livestock and workers.
7. Comparison with Alternatives
| Filter Type | Pros | Cons |
|---|---|---|
| V-Shaped Fiberglass | High capacity, low pressure drop | Higher cost than basic panel filters |
| Flat Panel Fiberglass | Cheap, widely available | Prone to clogging, shorter lifespan |
| Washable Foam | Reusable, low cost | Low efficiency (MERV 1–4) |
| Metal Mesh | Durable, washable | Poor filtration for fine particles |
8. Recommended Brands
Camfil: Durafil® V-Bank series (MERV 10–15 options).
AAF Flanders: AstroCel® I V-Bank filters.
Nordon Filters: Custom V-pleated fiberglass solutions.
Conclusion
This compact V-shaped fiberglass filter is ideal for industrial livestock facilities needing a balance of high dust capacity, energy efficiency, and durability. Its plastic frame ensures longevity in corrosive environments, while the dense pleats optimize performance without frequent replacements. For optimal results, pair with a pre-filter (e.g., cyclone separator) and monitor pressure drop regularly.
For custom sizing or bulk orders, contact manufacturers directly to discuss your facility's specific airflow and dust-load requirements.
