High Dust Holding Capacity HVAC Filtration V Bank HEPA Filter

The High Dust Holding Capacity V-Bank HEPA Filter is a premium, high-efficiency air filtration solution engineered exclusively for heating, ventilation, and air conditioning (HVAC) systems-designed to deliver ultra-clean air while addressing the key challenge of short service life in traditional HEPA filters. By integrating a space-optimized V-bank pleat structure with high-capacity filter media, this filter achieves HEPA-grade particle capture (H13/H14 per EN 1822:2019) and exceptional dust holding capacity, making it ideal for commercial, industrial, and healthcare HVAC systems where frequent filter replacements are costly or disruptive. It excels in environments with moderate to high dust loads (e.g., hospitals, data centers, pharmaceutical facilities, and light manufacturing plants), protecting both indoor air quality (IAQ) and critical HVAC components while minimizing maintenance downtime.

I. Core Filtration Performance: HEPA-Grade Precision

EN 1822-Certified HEPA EfficiencyAs a true HEPA filter, it meets the rigorous standards of EN 1822:2019, available in two core grades to suit diverse HVAC needs:

H13 Grade: Delivers a minimum filtration efficiency of 99.95% for particles ≥0.3μm, capturing fine dust, mold spores, bacteria, virus-carrying aerosols, and pollen-critical for healthcare facilities (e.g., hospital ICUs) and pharmaceutical cleanrooms.

H14 Grade: Achieves 99.995% efficiency for particles ≥0.3μm, providing near-absolute filtration for ultra-sensitive environments like semiconductor manufacturing cleanrooms or biotech labs integrated with HVAC systems.Both grades exceed ASHRAE 52.2 "True HEPA" requirements, ensuring that even sub-micron contaminants are removed from the HVAC airflow, preventing their circulation into occupied spaces or sensitive processes.

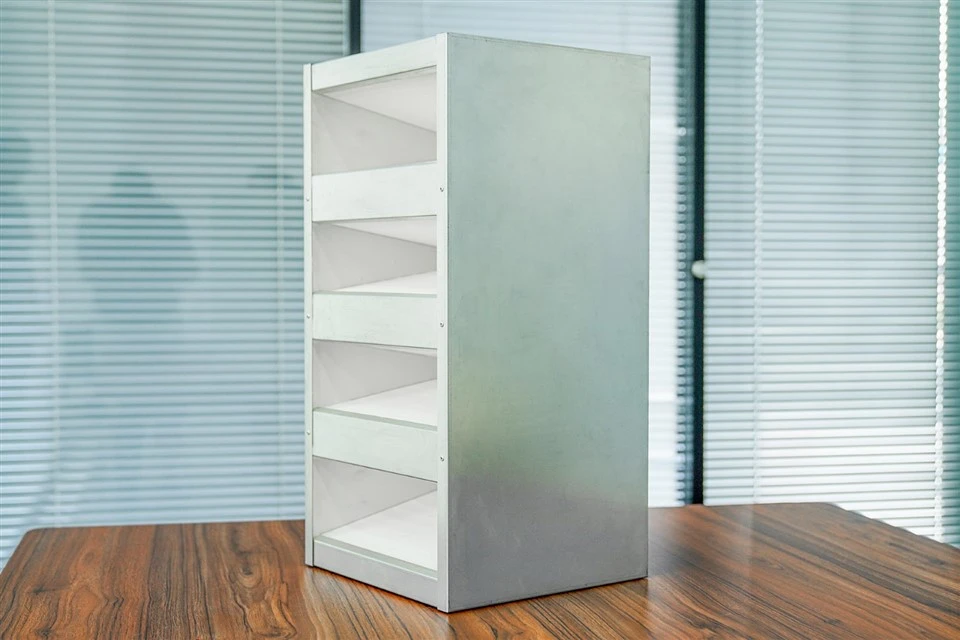

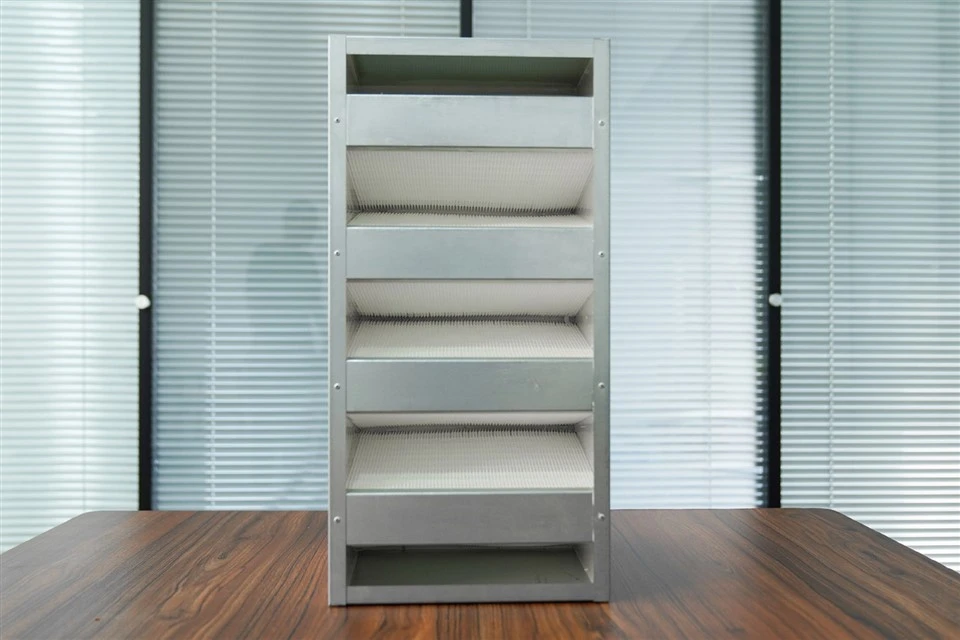

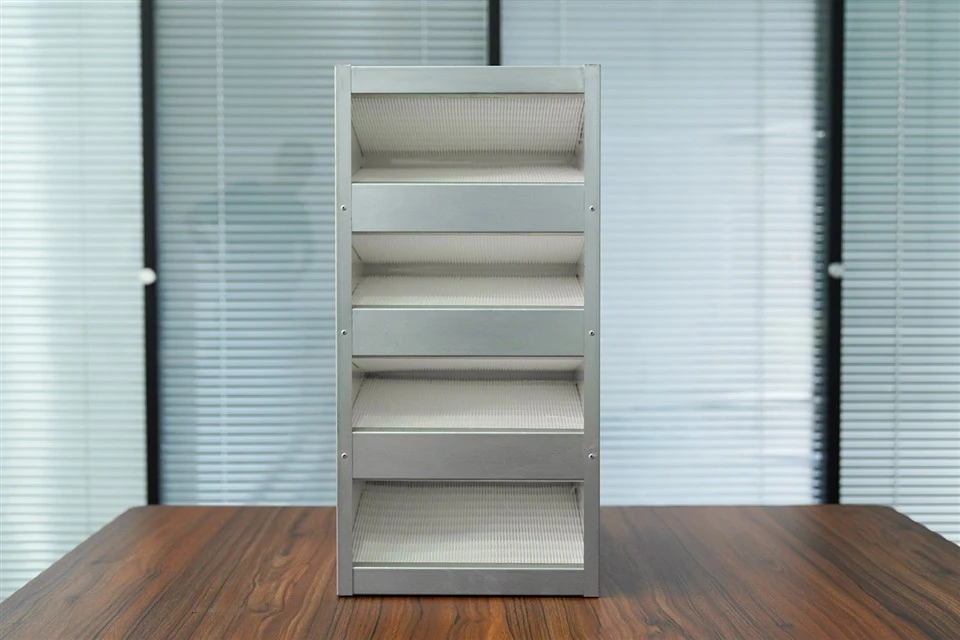

V-Bank Structure: The Key to High Dust Holding CapacityUnlike flat-panel or standard pleated HEPA filters, this product features a V-bank (or "wedge-bank") design-multiple rows of deep, evenly spaced V-shaped pleats arranged in a modular panel. This design delivers two transformative benefits:

Maximized Effective Filtration Area: The V-bank structure expands the filter's usable media area by 5–8x compared to flat HEPA filters of the same footprint. For example, a 610x610mm V-bank filter offers the equivalent filtration area of a 3,050x610mm flat filter, creating far more space to trap dust and debris.

Exceptional Dust Holding Capacity: With expanded media area, the filter achieves a dust holding capacity of ≥600g/㎡-2–3x higher than conventional HEPA filters (typically 200–300g/㎡). This means it can operate longer between replacements (8–12 months in moderate-dust HVAC systems, vs. 3–6 months for standard HEPA filters), drastically reducing maintenance frequency and costs.

II. HVAC-Optimized Design: Airflow Efficiency & Durability

Low Airflow Resistance for HVAC CompatibilityHVAC systems require filters that balance high efficiency with minimal airflow restriction-and the V-bank design delivers exactly that. By distributing airflow evenly across the expanded media area, the filter maintains a low initial pressure drop:

H13 Grade: ≤220 Pa at rated airflow (1,200 m³/h / 706 CFM)

H14 Grade: ≤250 Pa at rated airflow (1,200 m³/h / 706 CFM)This low resistance ensures HVAC fans do not work harder than necessary, avoiding energy waste (typically 5–10% lower fan energy use vs. high-resistance HEPA filters) and preventing strain on system components like blowers or coils. The filter also handles high HVAC airflow rates (up to 1,800 m³/h / 1,049 CFM), making it compatible with large commercial or industrial HVAC air handlers.

Durable Construction for Long-Term HVAC OperationBuilt to withstand the rigors of continuous HVAC use (24/7 operation, airflow turbulence, and temperature fluctuations), the filter features robust materials:

Filter Media: High-density borosilicate glass fiber (or synthetic fiber for moisture-sensitive environments) bonded with a hydrophobic resin. This media resists tearing, moisture absorption (preventing mold growth), and chemical degradation (e.g., mild cleaning agents or HVAC coil treatments), ensuring consistent efficiency over time.

Pleat Support: Rigid plastic or aluminum pleat separators (spaced every 12–15mm) maintain the V-bank shape, preventing pleat collapse under high airflow pressure. This preserves filtration area and avoids "channeling" (unfiltered air bypassing clogged pleats)-a common failure mode in unsupported HEPA filters.

Frame & Sealing: The outer frame is constructed from 1.0mm-thick galvanized steel (for industrial/HVAC durability) or moisture-proof ABS plastic (for humid environments like indoor pools). A full-perimeter EPDM rubber gasket (4mm thick) creates an airtight seal with HVAC filter housings, eliminating bypass air and ensuring 100% of airflow passes through the HEPA media.

III. Key Benefits for HVAC Systems & Operations

Protects Critical HVAC ComponentsBy capturing fine dust and debris that would otherwise circulate through the HVAC system, the filter safeguards expensive components:

Prevents dust buildup on heat exchangers/coils (maintaining thermal efficiency and reducing HVAC energy bills by 8–12%).

Stops particles from accumulating on fan blades (avoiding fan imbalance, noise, and premature motor failure).

Extends the lifespan of downstream components (e.g., humidifiers, UV air purifiers) by reducing their exposure to contaminants.

Reduces Maintenance Costs & DowntimeThe high dust holding capacity cuts filter replacement frequency by 50% or more, translating to:

Lower labor costs (fewer service calls for filter changes).

Reduced downtime for HVAC systems (critical for 24/7 facilities like hospitals or data centers).

Less waste (fewer discarded filters, aligning with sustainability goals).

Elevates Indoor Air Quality (IAQ)For occupied spaces (e.g., offices, schools, hospitals), the HEPA-grade filtration eliminates airborne allergens, bacteria, and fine dust-reducing allergy symptoms, respiratory issues, and sick days. In industrial settings, it prevents process-generated dust (e.g., metal shavings, pharmaceutical powders) from escaping into employee work areas, supporting occupational health compliance.

IV. Compatibility & Application Scenarios

The High Dust Holding Capacity V-Bank HEPA Filter redefines HEPA filtration for HVAC systems by merging ultra-high efficiency with long service life. It is an essential investment for facility managers seeking to balance air quality, energy efficiency, and operational cost-delivering reliable performance in the most demanding commercial, industrial, and healthcare HVAC applications.
