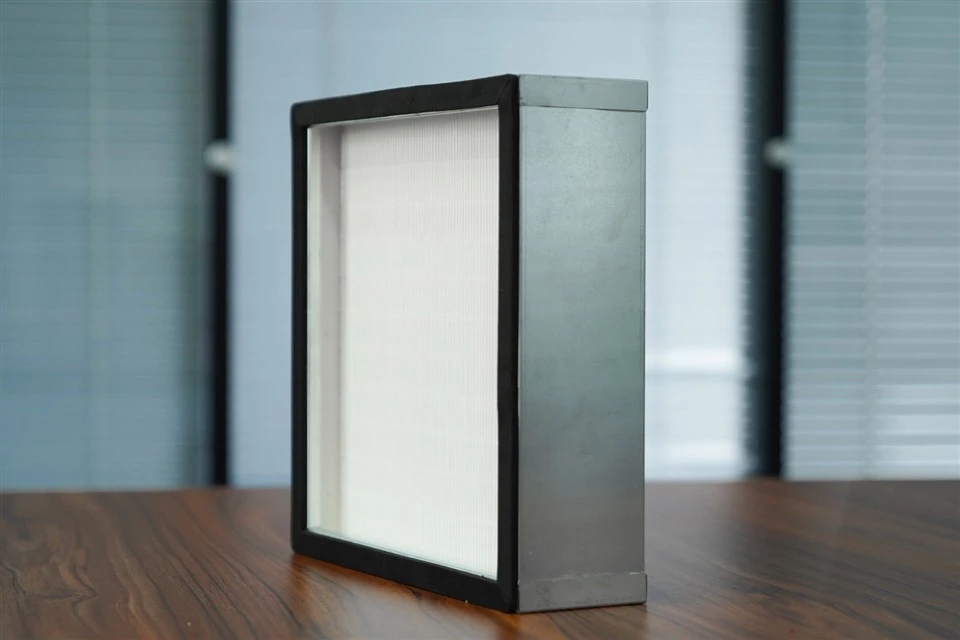

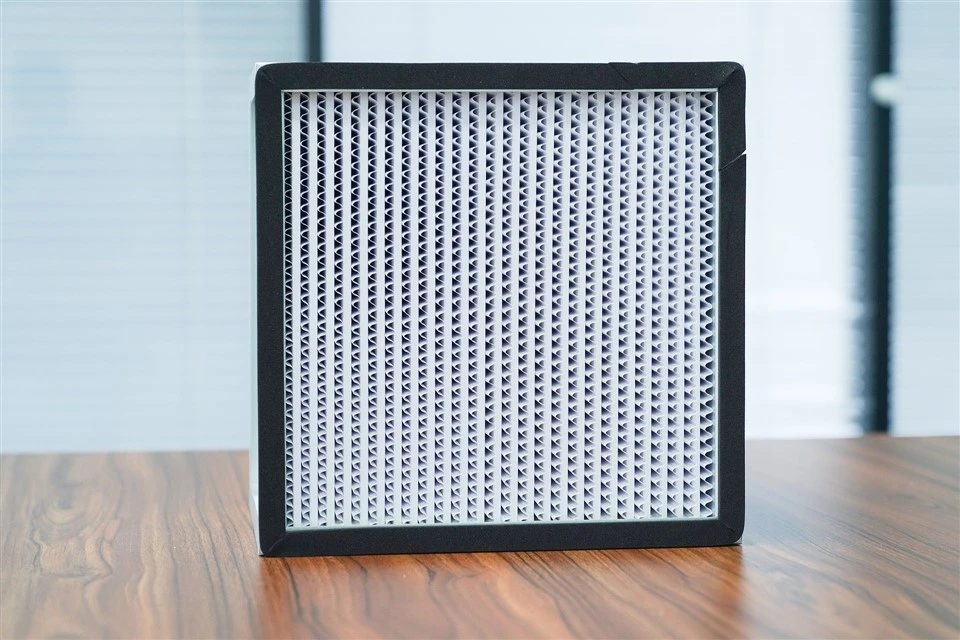

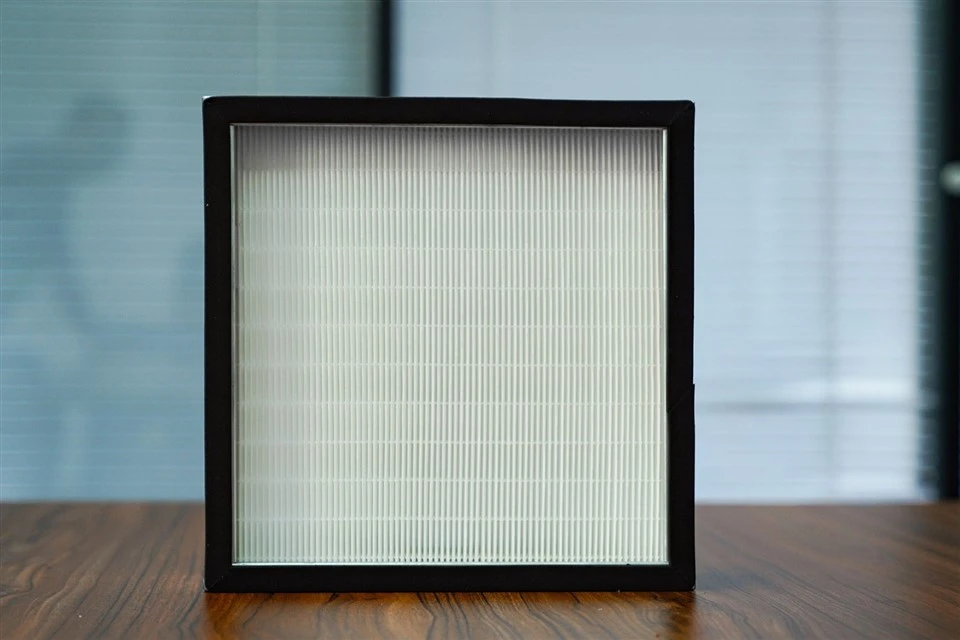

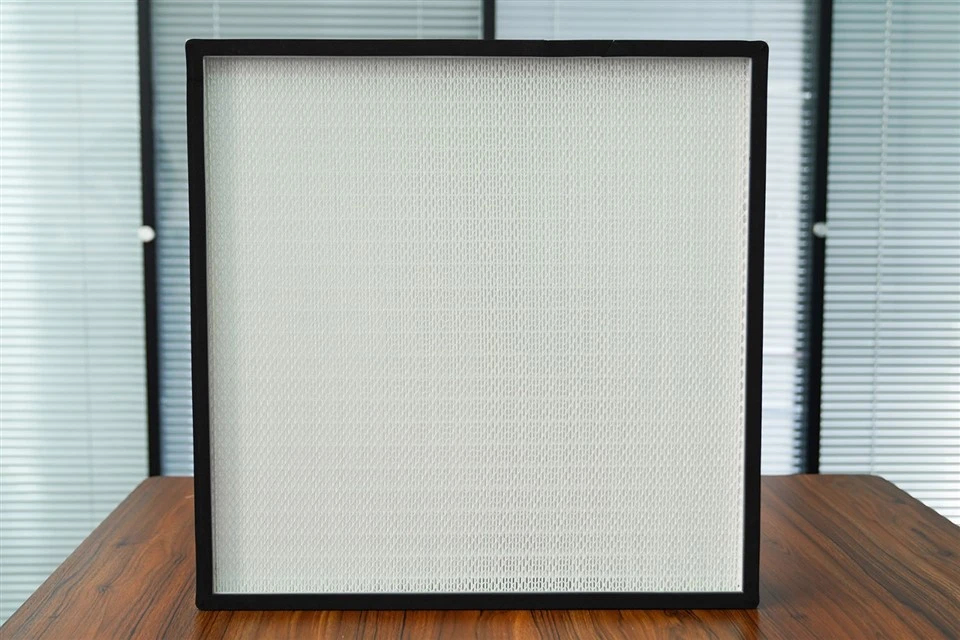

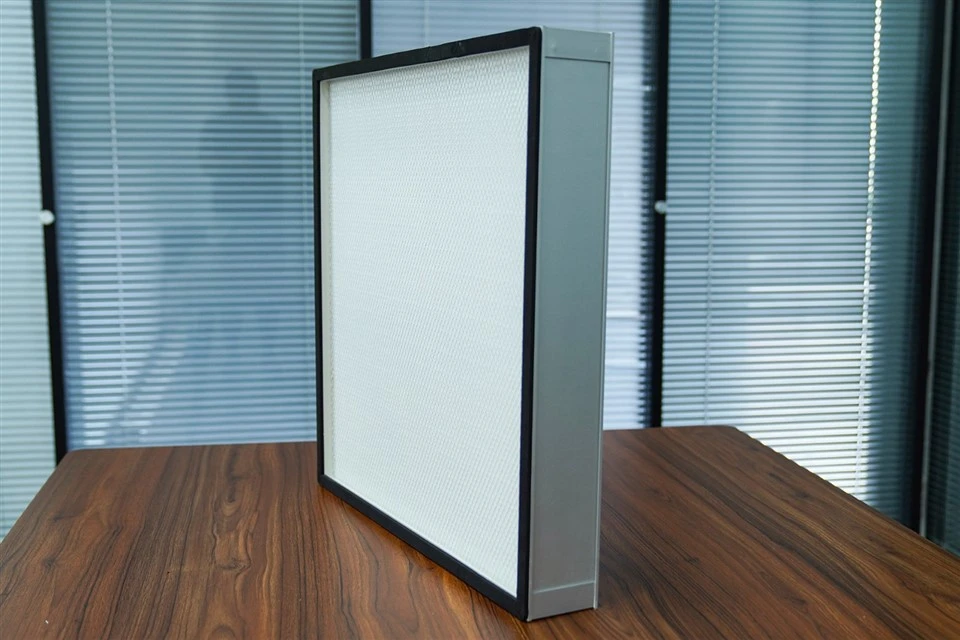

Low Pressure Drop Deep Pleat HEPA Filter with Clapboard for Dust Collector: Overview and Benefits
1. Product Overview
The Low Pressure Drop Deep Pleat HEPA Filter with Clapboard is a high-efficiency air filtration solution designed for dust collectors and industrial ventilation systems. It combines HEPA-level filtration efficiency (≥99.97% for 0.3μm particles) with a deep-pleated design and clapboard separators to minimize pressure drop while maximizing dust-holding capacity. This makes it ideal for applications where clean air quality and energy efficiency are critical.
2. Key Features & Benefits
| Feature | Description & Benefits |
|---|---|
| HEPA Filtration Efficiency | - Removes ≥99.97% of 0.3μm particles (including dust, pollen, mold, bacteria, and some viruses). - Meets EN1822, IEST-RP-CC001, or ASHRAE 52.2 standards. |
| Deep Pleat Design | - Increases filter media area by 2–3x compared to flat filters. - Allows for longer service life and higher dust-holding capacity. - Reduces frequency of filter replacements. |
| Low Pressure Drop | - Clapboard separators maintain pleat spacing, preventing media collapse and ensuring consistent airflow. - Lower resistance (typically <250 Pa at rated flow) reduces energy consumption in dust collectors. |
| Clapboard Separators | - Prevents pleat contact, ensuring even airflow distribution. - Extends filter lifespan by reducing clogging and uneven wear. |
| High Dust-Holding Capacity | - Deep pleats and optimized media retain more dust before reaching capacity. - Reduces maintenance downtime and operational costs. |
| Compact & Modular Design | - Fits into standard HEPA filter boxes or custom dust collector housings. - Easy to install and replace. |
3. Applications
This filter is ideal for:
Dust collectors in manufacturing (woodworking, metalworking, ceramics).
Pharmaceutical & cleanroom environments requiring sterile air.
Food processing plants (to prevent contamination).
HVAC systems in hospitals, laboratories, and electronics manufacturing.
Any application where fine dust or particulates must be removed efficiently.
4. Why Choose a Deep Pleat HEPA Filter with Clapboard?
Energy Efficiency: Lower pressure drop reduces fan energy use by up to 30% compared to standard filters.
Longer Lifespan: Deep pleats and clapboards extend filter life by 2–3x, reducing replacement costs.
Consistent Performance: Clapboards prevent pleat collapse, ensuring steady filtration efficiency over time.
Cost Savings: Lower energy use + fewer replacements = lower total cost of ownership (TCO).
5. Comparison with Other Filters
| Filter Type | Efficiency (0.3μm) | Pressure Drop | Dust-Holding Capacity | Cost |
|---|---|---|---|---|
| Standard Panel Filter | 80–90% | Medium-High | Low | Low |
| HEPA Flat Filter | ≥99.97% | High | Medium | Medium |
| Deep Pleat HEPA with Clapboard | ≥99.97% | Low | High | Medium-High (but lower TCO) |
Conclusion: While the initial cost may be higher, the deep pleat HEPA filter with clapboard offers superior long-term value due to energy savings and reduced maintenance.
6. Recommendations
For high-dust environments, opt for a filter with higher pleat density and synthetic media (e.g., PTFE-coated glass fiber).
For critical applications (e.g., cleanrooms), choose a filter with individual pleat testing and leak-proof gaskets.
Regularly monitor pressure drop to determine optimal replacement timing.
Final Thoughts
The Low Pressure Drop Deep Pleat HEPA Filter with Clapboard is an excellent choice for dust collectors and industrial systems requiring high efficiency, low energy use, and long service life. Its design ensures consistent performance while minimizing operational costs, making it a cost-effective and reliable solution for air filtration needs.
Would you like recommendations for specific brands or additional technical specifications?
