High-Efficiency Air Outlet– Compact for 1000–300000 Grade Clean Zones
What is a bag type air filter (pocket filter)?

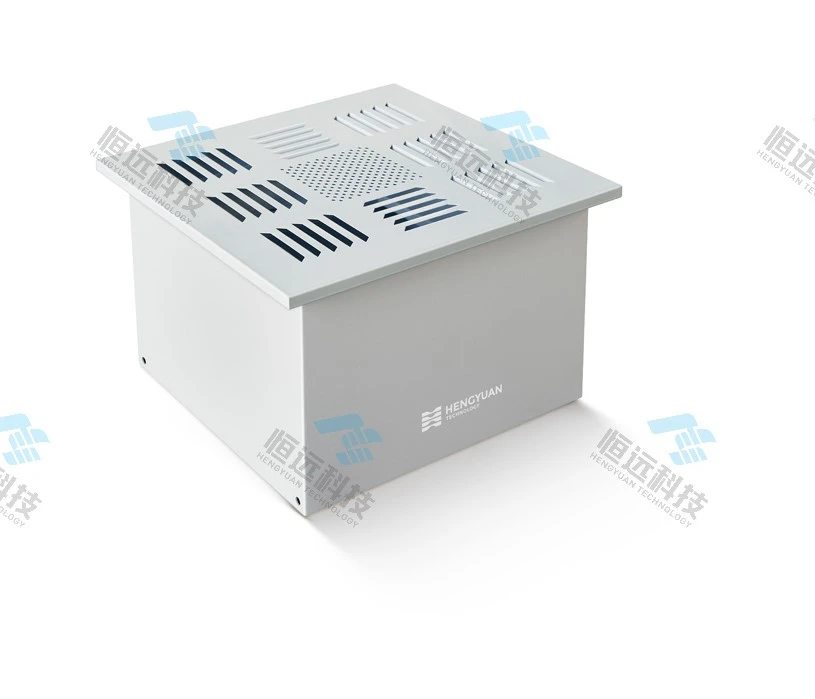

A: The HGB/HWB Series High Efficiency Air Outlet is an integrated terminal filtration device for 1000–300000 class clean air conditioning systems. It combines a static pressure box, diffuser plate, and high-efficiency filter, serving as a core component to meet purification standards in renovated or new clean rooms.
Performance and Characteristics
Core Advantages
Targeted for Clean Systems: Ideal for 1000–300000 class purification air conditioning systems, widely used in pharmaceuticals, health, electronics, and chemical industries to ensure strict air cleanliness.
Integrated Structure: Includes a static pressure box (stabilizes airflow), diffuser plate (uniformly distributes wind), and high-efficiency filter. The compact design ensures excellent sealing performance.
Flexible Installation: Duct interfaces support top or side connection, adapting to diverse layout needs of clean room ventilation systems.
Function & Application
It acts as a terminal filtration device for:
Renovation and construction of 1000–300000 class clean rooms.
Purification air conditioning systems in pharmaceuticals, health, electronics, and chemical industries.
Model, Size and Technical Parameters
F5/F6 Series Technical Parameters
| Filter model | Overall dimensions (mm) | Rated air flow (m³/h) | Initial resistance (Pa) | Efficiency (class) (MPPS) | Bag Quantity |
|---|---|---|---|---|---|
| HDC/5-13 | 490×287×600 | 1300 | 50-70Pa | F5/F6 | 5 |
| HDC/5-22 | 490×490×600 | 2200 | 50-70Pa | F5/F6 | 5 |
| HDC/6-16 | 592×287×600 | 1600 | 50-70Pa | F5/F6 | 6 |
| HDC/6-27 | 592×490×600 | 2700 | 50-70Pa | F5/F6 | 6 |
| HDC/6-32 | 592×592×600 | 3200 | 50-70Pa | F5/F6 | 8 |
F7/F8 Series Technical Parameters
| Filter model | Overall dimensions (mm) | Rated air flow (m³/h) | Initial resistance (Pa) | Efficiency (class) (MPPS) | Bag Quantity |
|---|---|---|---|---|---|
| HDC/5-13 | 490×287×600 | 1300 | 90-130Pa | F7/F8 | 5 |
| HDC/5-22 | 490×490×600 | 2200 | 90-130Pa | F7/F8 | 5 |
| HDC/6-16 | 592×287×600 | 1600 | 90-130Pa | F7/F8 | 6 |
| HDC/6-27 | 592×490×600 | 2700 | 90-130Pa | F7/F8 | 6 |
| HDC/8-32 | 592×592×600 | 3200 | 90-130Pa | F7/F8 | 8 |
Customized product display
OEM, OEM Production services. Independent R&D team, one-stop solution for cleanroom projects.
