Liquid Tank Type HEPA Filter (High-Seal, Low-Resistance & Cost-Saving for Clean Room Terminal & Purification Equipment Matching)

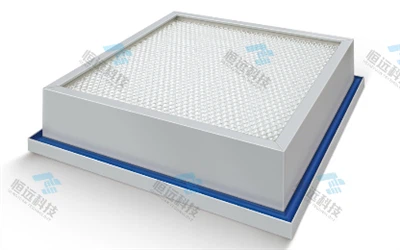

What Is A Liquid Tank Type High Efficiency Air Filter?
A: A liquid tank type high efficiency air filter is a specialized purification device designed for high-cleanliness environments. It features a liquid-tight sealing structure, enabling exceptional filtration efficiency, low airflow resistance, and reliable airtightness. This series is tailored for terminal filtration in industrial and biological clean rooms, as well as large-scale laminar flow systems.
Performance and Characteristics
Core Advantages
High Efficiency & Low Resistance: Delivers superior particle capture efficiency with initial resistance ≤250Pa, ensuring effective air purification while minimizing energy consumption.
Convenient Installation & Excellent Sealing: Designed for easy setup, with a liquid tank sealing mechanism that guarantees airtight performance, preventing unfiltered air leakage.
Low Operating Costs: The robust design and efficient filtration reduce maintenance frequency and energy use, lowering long-term operational expenses.
Function & Application
It is widely used in high-requirement clean rooms, large-area vertical laminar flow systems, and 100-level laminar flow hoods. It serves as an ideal terminal filter for industrial and biological clean rooms, ensuring strict air cleanliness standards in applications like pharmaceutical production, electronics manufacturing, and laboratory research.
Model, Size and Technical Parameters
Liquid Tank Type High Efficiency Air Filter Technical Parameters
| Filter model | Overall dimensions (mm) | Rated air flow (m³/h) | Initial resistance (Pa) | Filter area (m²) |
|---|---|---|---|---|
| HYW-5Y | 343×343×90 | 500 | ≤250Pa | 4.1 |
| HYW-10Y | 500×500×90 | 1000 | ≤250Pa | 9.2 |
| HYW-15Y | 650×650×90 | 1500 | ≤250Pa | 7.99 |
| HYW-20Y | 980×500×90 | 2000 | ≤250Pa | 18.6 |
Customized product display
OEM, OEM Production services. Independent R&D team, one-stop solution for cleanroom projects.
