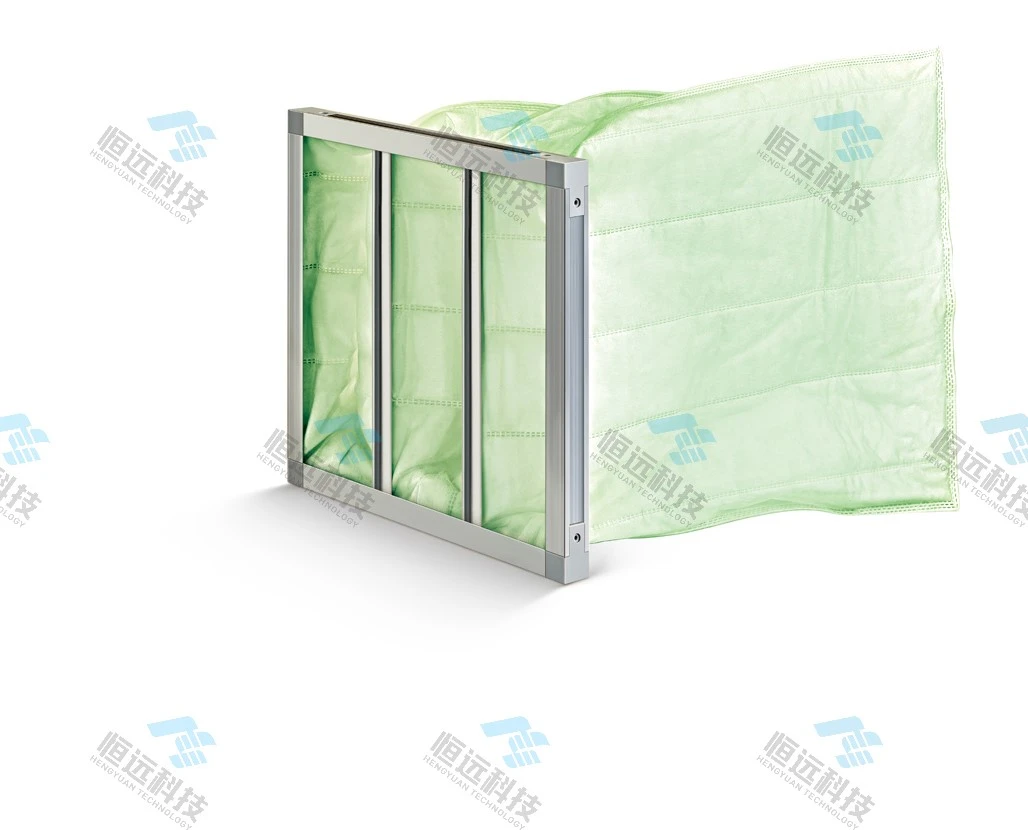

Reusable Bag-Type Medium Efficiency Air Filter (Class F5-F8, Low Resistance & High Air Volume, Suitable for HVAC Systems/Industrial Purification Scenarios)
What Is A Bag Type Air Filter?
The Bag Type Air Filter is a medium-efficiency, reusable filtration device with low resistance and large air volume capacity. It achieves 64% (F5) and 70% (F6) efficiency via the colorimetric method, making it ideal for intermediate filtration in air conditioning systems across commercial and industrial buildings.
Performance and Characteristics
Core Advantages
Reusable & Long Service Life: Can be reused multiple times, significantly extending its service life and reducing replacement costs.
Low Resistance & Large Air Volume: Ensures minimal airflow restriction (50-70Pa) while handling large air volumes, optimizing the efficiency of air conditioning systems.
Medium Efficiency Filtration: Filter media achieves average efficiencies of 64% (F5) and 70% (F6) via the colorimetric method, meeting intermediate air purification requirements.
Function & Application
It is widely used for intermediate filtration in air conditioning systems across commercial and industrial buildings. It effectively filters moderate particles, maintaining air quality and protecting downstream high-efficiency filters or equipment, ensuring stable operation of the entire air conditioning system.
Model, Size and Technical Parameters
Bag Type Air Filter Technical Parameters
| Filter model | Overall dimensions (mm) | Rated air flow (m³/h) | Initial resistance (Pa) | Efficiency (class) (MPPS) | Bag Quantity |
|---|---|---|---|---|---|
| HDC/5-13 | 490×287×600 | 1300 | 50-70Pa | F5/F6 | 5 |
| HDC/5-22 | 490×490×600 | 2200 | 50-70Pa | F5/F6 | 5 |
| HDC/6-16 | 592×287×600 | 1600 | 50-70Pa | F5/F6 | 6 |
| HDC/6-27 | 592×490×600 | 2700 | 50-70Pa | F5/F6 | 6 |
| HDC/6-32 | 592×592×600 | 3200 | 50-70Pa | F5/F6 | 8 |
F7/F8 Series Technical Parameters
| Filter model | Overall dimensions (mm) | Rated air flow (m³/h) | Initial resistance (Pa) | Efficiency (class) (MPPS) | Bag Quantity |
|---|---|---|---|---|---|
| HDC/5-13 | 490×287×600 | 1300 | 90-130Pa | F7/F8 | 5 |
| HDC/5-22 | 490×490×600 | 2200 | 90-130Pa | F7/F8 | 5 |
| HDC/6-16 | 592×287×600 | 1600 | 90-130Pa | F7/F8 | 6 |
| HDC/6-27 | 592×490×600 | 2700 | 90-130Pa | F7/F8 | 6 |
| HDC/8-32 | 592×592×600 | 3200 | 90-130Pa | F7/F8 | 8 |
Customized product display
OEM, OEM Production services. Independent R&D team, one-stop solution for cleanroom projects.
