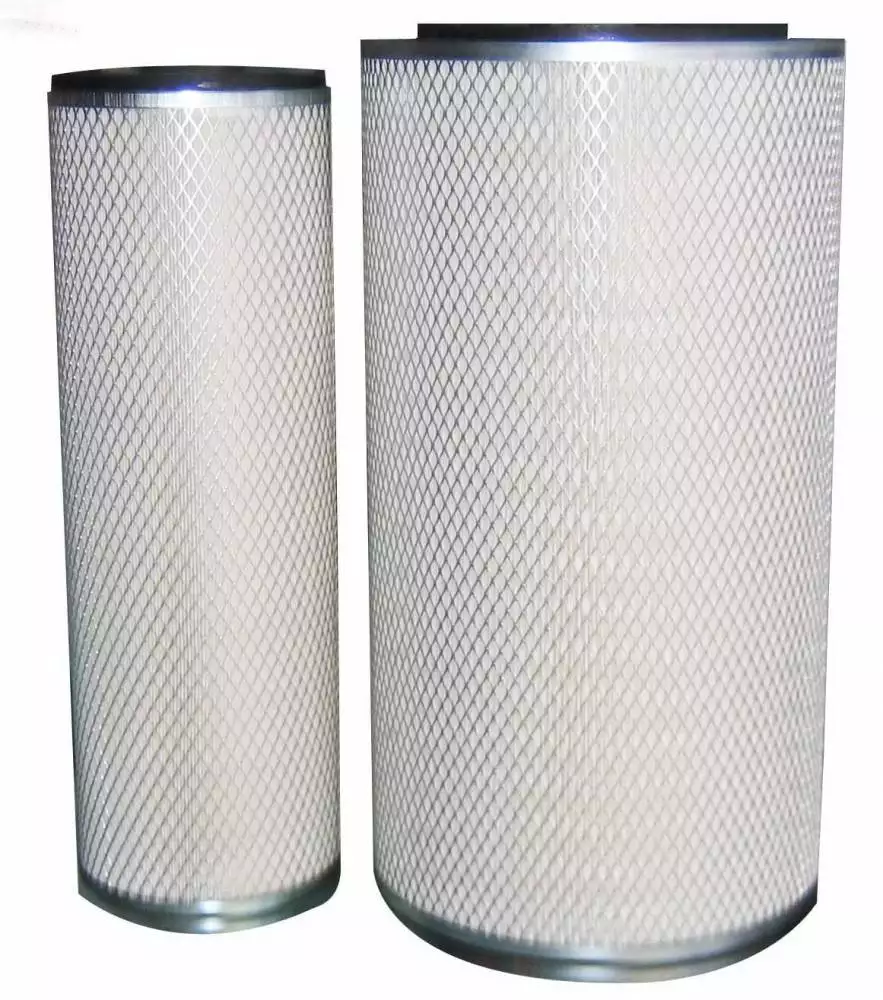

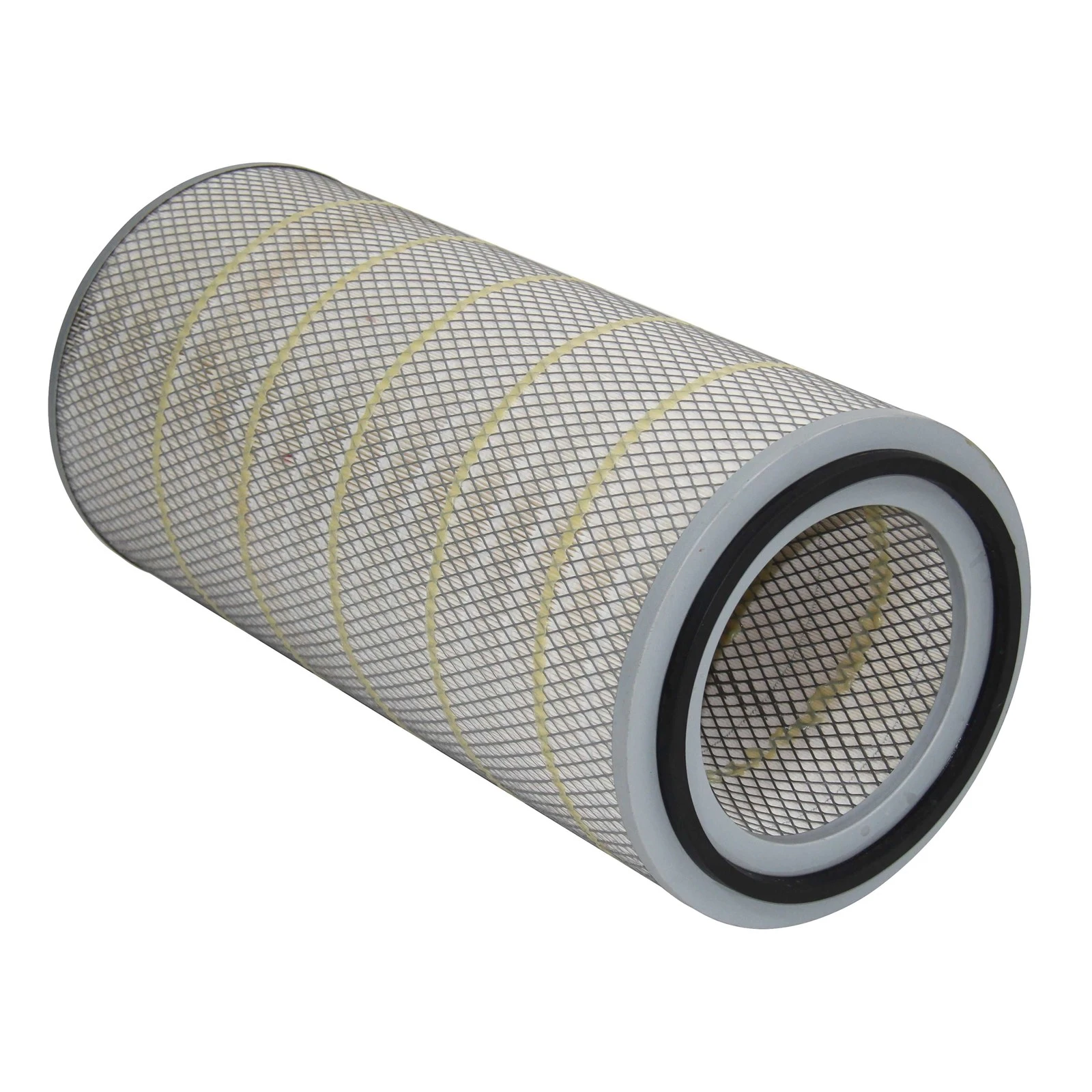

Air Purification Air Compressor Air Filter









The working principle of the air compressor's air filter primarily relies on physical methods, utilizing multi-layered filter materials to intercept and filter particles such as dust, moisture, and impurities from the air, resulting in purer compressed air. Its operational mechanism can be broken down into the following aspects:

I. Role of Filter Materials

Multi-layered Filter Materials: The interior of the filter employs multiple layers of filter materials, including metal mesh, glass fiber, polyester fiber, etc. These materials exhibit high filtration efficiency and long service life.

Fine Fiber Density: The denser the fine fibers of the filter material, the higher the filtration efficiency. These fine fibers create numerous barriers for particles, effectively intercepting tiny particles in the air.

II. Particle Separation Methods

Inertial Impaction: Larger particles, due to their inertia, fail to navigate around the filter material promptly in the airflow, colliding directly with it and being intercepted. This mechanism is particularly effective for larger particles and faster airflow speeds.

Interception: When particles flow with the mainstream, if their diameter exceeds the distance between the mainstream and the fiber perimeter, they are intercepted by the fibers and adhere to the filter material. The interception effect is closely related to particle size, fiber thickness, and density.

Diffusion Deposition: Extremely small particles (e.g., less than 1μm) do not follow the mainstream but instead traverse the fluid randomly based on Brownian motion. These particles, influenced by thermal motion, diffuse along concentration gradients, ultimately depositing on the filter material's surface.

III. Electrostatic Effects

Filter fibers and airborne dust particles may acquire static electricity due to various reasons, attracting dust particles to the fibers, thereby enhancing filtration efficiency. However, it's crucial to note that as more dust is captured, the filter layer's filtration efficiency gradually decreases, and resistance increases. Consequently, regular filter replacement is necessary to maintain high cleanliness standards.

IV. Overall Workflow

The air compressor's air filter comprises an air filter assembly and a filter element, externally connected to the compressor's intake valve via fittings and threaded pipes. When air enters the filter, it first passes through a coarse filter layer to remove larger particles and impurities. It then proceeds to a fine filter layer for deep filtration, further eliminating tiny particles and dust. Finally, the clean air is delivered to the compressor for pressure boosting.

In conclusion, the air compressor's air filter effectively intercepts and filters particles from the air through a combination of multi-layered filter materials, various separation methods, and electrostatic effects, ensuring the quality and stability of compressed air. In practical applications, selecting the appropriate filter model and specifications based on specific requirements, along with regular maintenance and replacement, is essential for ensuring its proper functioning.
