The structure of the air compressor oil-water separator primarily consists of several key components that work together to achieve the goal of oil-water separation:
Outer Shell: The outer shell of the oil-water separator is typically constructed from robust and durable materials such as stainless steel or fiberglass reinforced plastic (FRP), capable of enduring internal pressures and external environmental influences. The shell not only provides protection but also defines the shape and size of the entire separator.

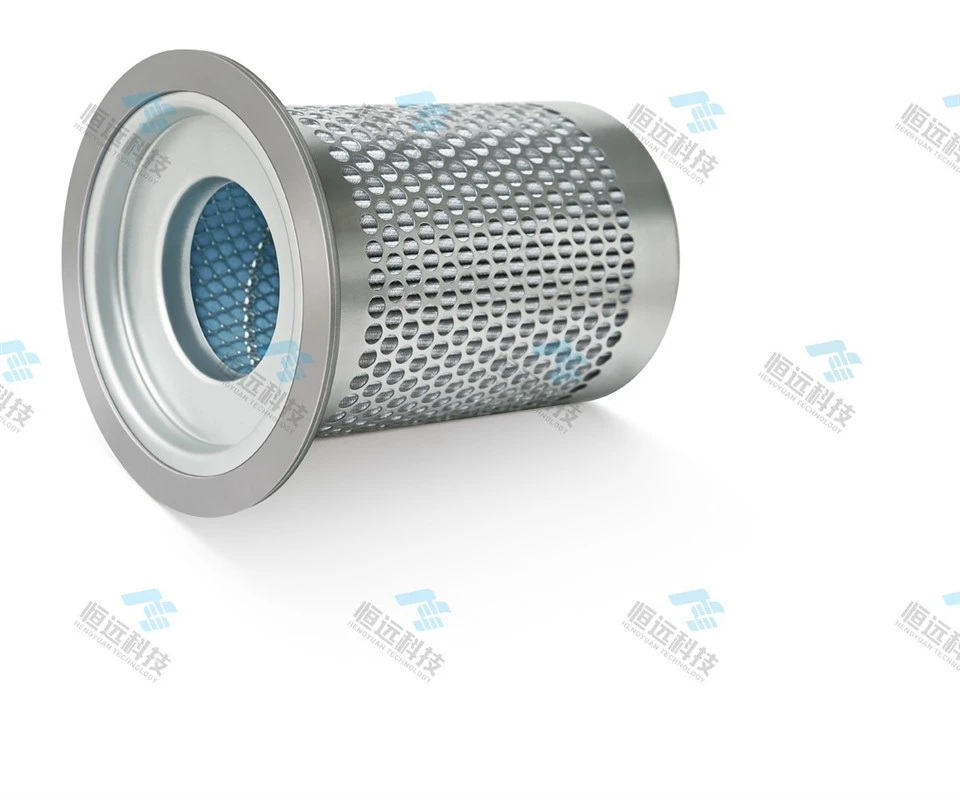

Filter Element/Media: The filter element is the core component of the air compressor oil-water separator, and its material and structure play a decisive role in separation efficiency. Commonly, the filter element employs a stainless steel mesh structure or is constructed by layering multiple layers of fiber media (e.g., coarse, fine, and ultra-fine fibers) to efficiently remove oil droplets, water droplets, and solid impurities from compressed air. The filtration efficiency of the filter element is usually very high, exceeding 99.9%.
Pressure Release Chamber: Within the oil-water separator, the pressure release chamber serves as a vital component for releasing the pressure of the compressed air entering the separator. By releasing pressure, it facilitates better separation of the oil-water mixture within the separator.
Pre-Filter: Located at the front end of the oil-water separator, the pre-filter serves as the initial barrier to remove large particle impurities from the compressed air, protecting the subsequent filter element and separator from potential damage.
Activated Carbon Filter (In Some Models): High-end air compressor oil-water separators may also incorporate an activated carbon filter. This filter further adsorbs and removes oil mist, odors, and other harmful substances from the compressed air, enhancing its purity.
Oil Storage Tank: The oil storage tank collects the oil separated from the compressed air. Once the oil droplets are filtered and accumulate to a certain level, they flow into the tank for storage and disposal.
Drainage Components: Drainage components, including drain valves and pipes, facilitate the periodic removal of oil-water mixtures and solid impurities from the bottom of the separator. These components are designed to ensure a smooth and easy drainage process.
Other Auxiliary Components: Depending on specific models and design requirements, air compressor oil-water separators may also be equipped with additional auxiliary components such as pressure gauges, thermometers, safety valves, etc., to monitor and protect the separator's operational status.
In summary, the structure of an air compressor oil-water separator represents a complex system where each component interacts and collaborates to achieve the purpose of oil-water separation. Regular maintenance and servicing are essential during operation to ensure proper functioning and extend the separator's lifespan.
