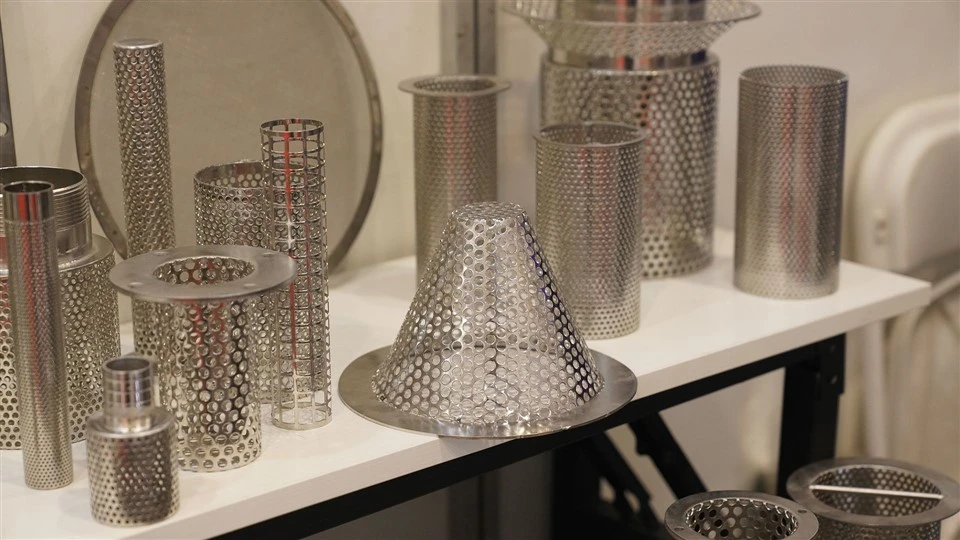

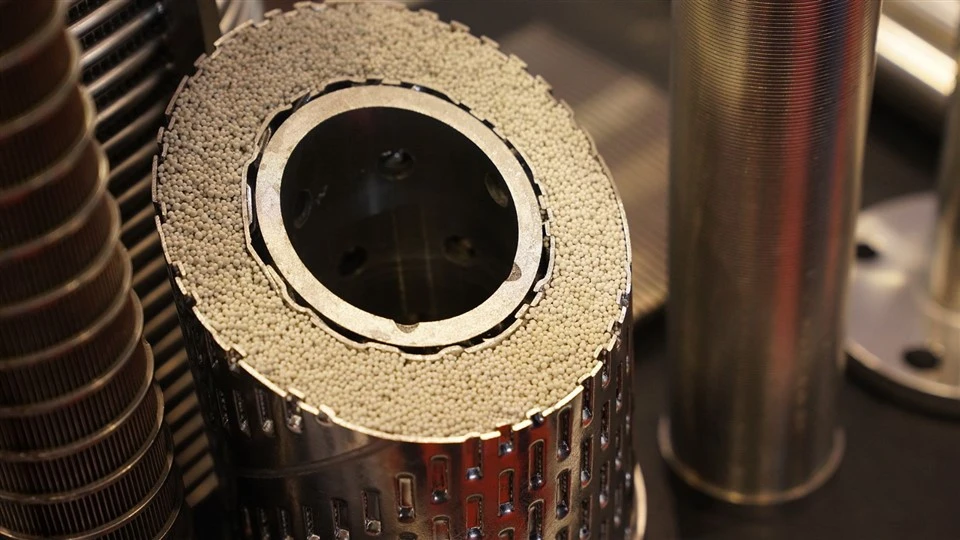

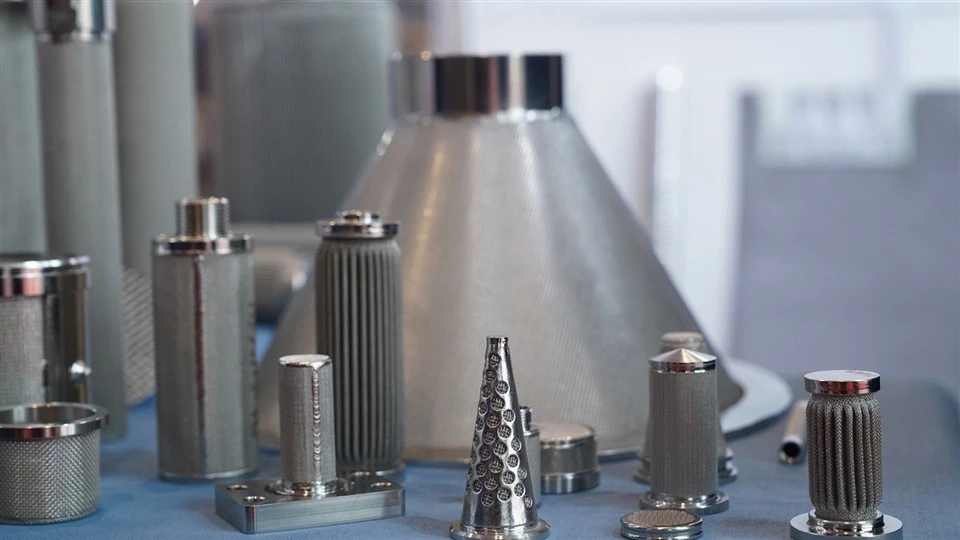

The stainless steel punched flange filter cartridge, particularly those designed for compressed air filtration in the food industry featuring internal and external threads and a multilayer structure, is an efficient and versatile filtration equipment. Below is a detailed analysis of this type of filter cartridge:
I. Structural Characteristics
Material:
Primarily made of stainless steel grades such as SUS304, 304L, 316, and 316L, these materials offer excellent corrosion resistance, high temperature tolerance, and mechanical strength.
Punched Design:
The filter mesh section is crafted through a punching process, creating uniformly distributed holes that help increase the filtration area and efficiency.
Flange Connection:
Equipped with stainless steel flanges, it facilitates easy connection with pipelines or other filtration equipment, ensuring sealability and stability.
Internal and External Threads:
The filter cartridge features internal and external threads at both ends, facilitating installation and removal while also enhancing the sealability of the connection points.
Multilayer Design:
The interior of the filter cartridge adopts a multilayer structure, effectively removing dust, oil mist, and other impurities from compressed air, enhancing filtration precision and efficiency.
II. Functions and Applications
Functions:
Primarily used to filter dust, oil mist, moisture, and other impurities from compressed air, improving air quality and purity.
It can also be utilized in the food industry to filter impurities in liquids or gases, ensuring product hygiene and safety.
Application Fields:
Compressed air systems: such as pneumatic tools, spray equipment, pneumatic control systems, etc.
Food industry: such as beverage production, dairy processing, beer brewing, etc.
Other fields: such as pharmaceuticals, chemicals, electronics, and other situations requiring high-quality air.
III. Performance Parameters
Filtration Precision:
Adjustable within a certain range according to specific requirements and application scenarios.
Working Pressure:
The working pressure of the filter cartridge needs to be determined based on actual application conditions, generally meeting the needs of most industrial applications.
Working Temperature:
Due to the high temperature tolerance of stainless steel, the filter cartridge can operate normally within a certain temperature range.
Service Life:
The service life depends on factors such as the working environment, the nature of the filtered medium, and the filtration volume.
IV. Maintenance and Care
Regular Inspection:
Regularly inspect the filtration effect and working state of the filter cartridge to ensure filtration precision and efficiency.
Cleaning and Replacement:
Based on usage, regularly clean or replace the filter cartridge to maintain its good filtration performance.
Storage and Preservation:
When not in use, the filter cartridge should be stored in a dry, well-ventilated environment to avoid moisture and corrosion.
In conclusion, the stainless steel punched flange filter cartridge with internal and external threads and a multilayer structure for compressed air and food industry filtration offers numerous advantages and a wide range of applications. When selecting and using it, comprehensive consideration and selection should be made based on specific requirements and working environments.
