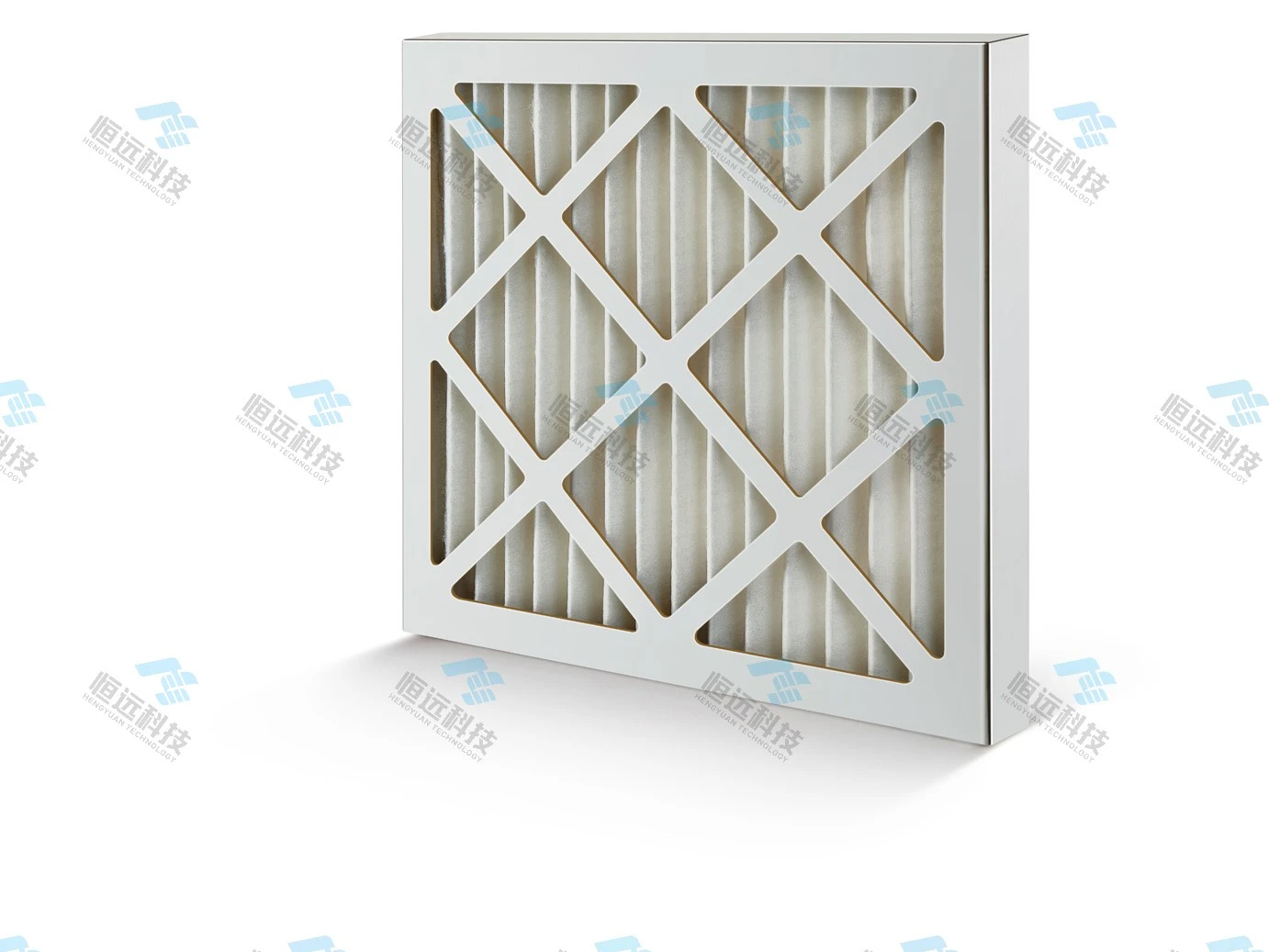

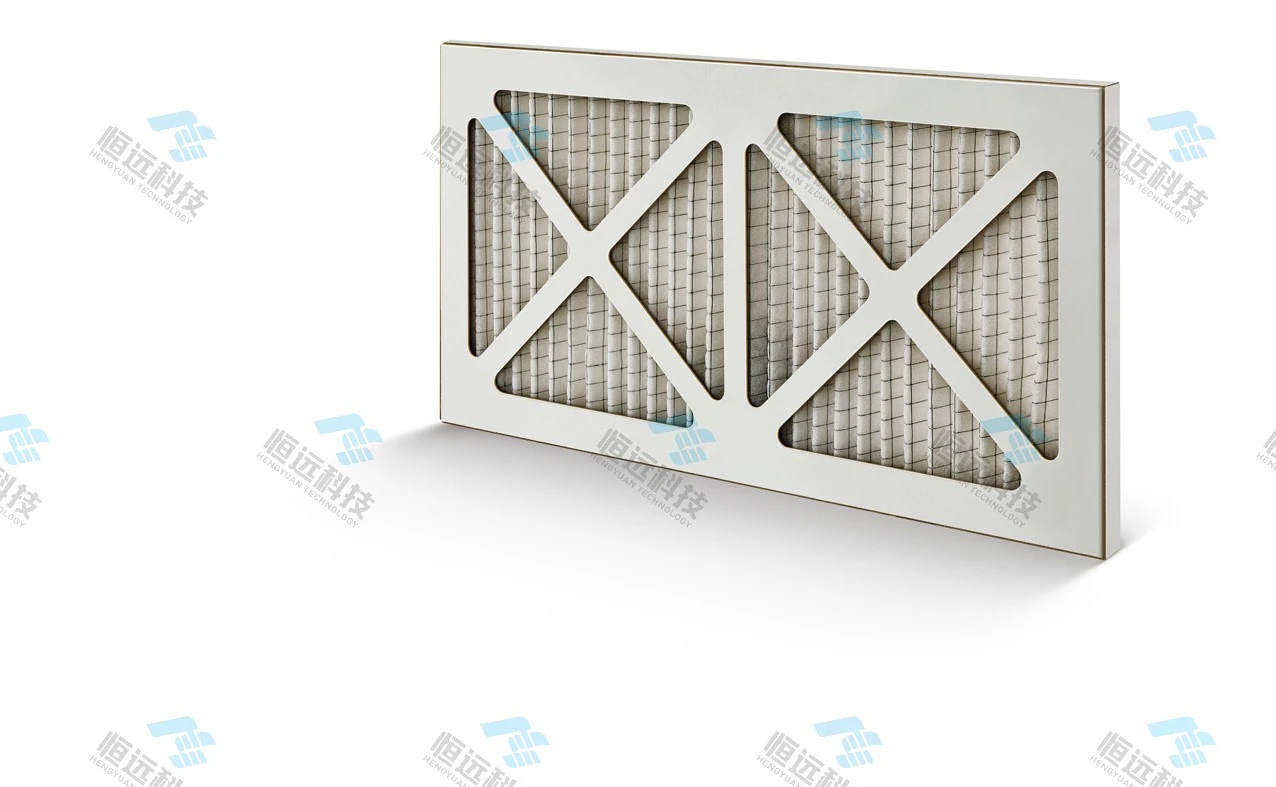

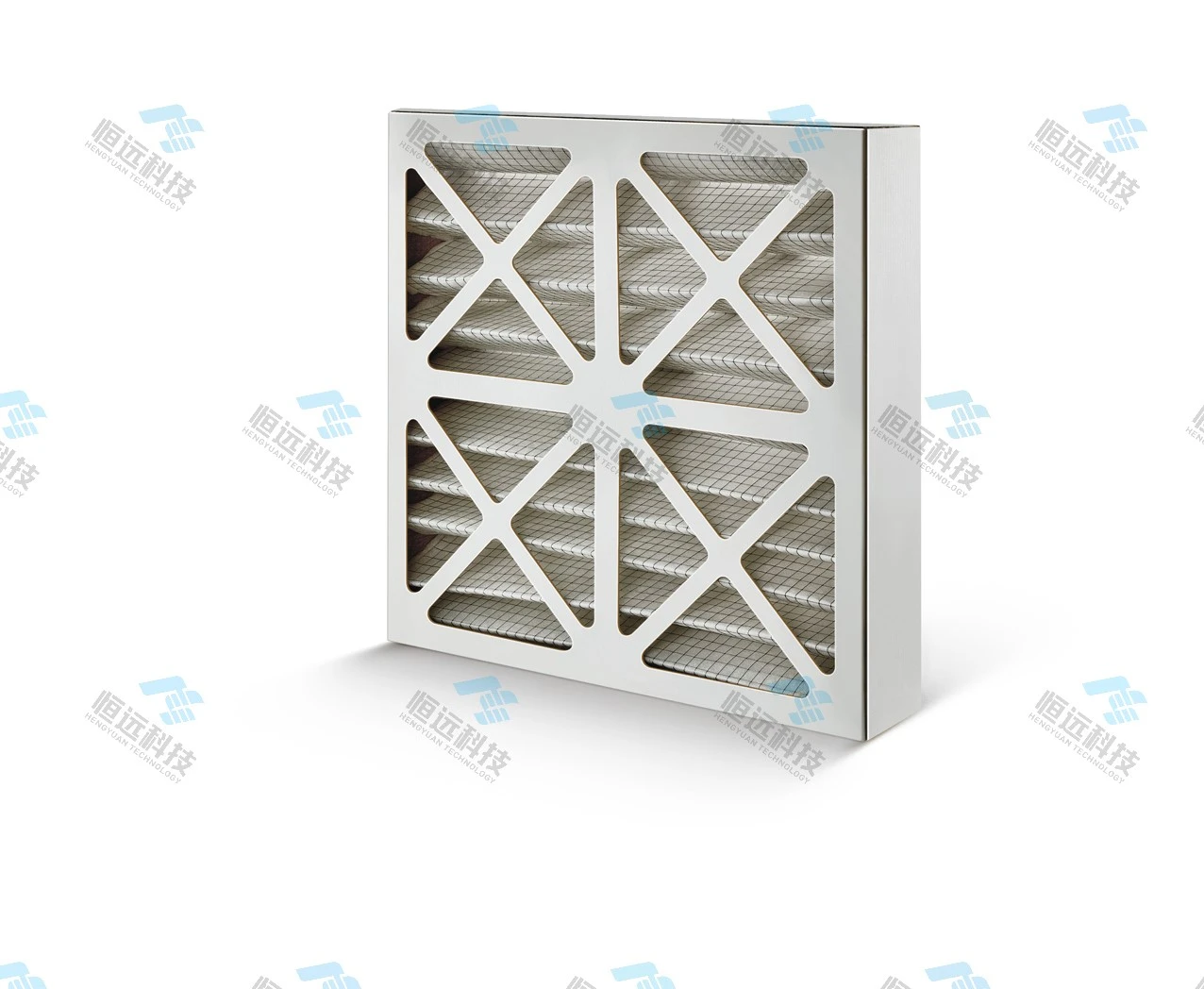

G3 G4 Pleated Panel Air Furnace Ac Filter Cardboard Paper Frame Primary Air Filter



Our Products

G3/G4 grade corrugated Panel Air Furnace AC Filter with Cardboard Paper Frame is a basic filtration device widely used in ventilation and air conditioning systems (HVAC), air handling units (AHU), and industrial purification scenarios. The following is an analysis from aspects such as structural characteristics, performance parameters, application scenarios, and advantages and disadvantages:

I. Structure and Material Properties
Filter material
By using synthetic fibers (such as polyester fibers) or glass fiber composite materials and forming a three-dimensional filtration structure through corrugated folding process, the effective filtration area is significantly increased (usually reaching 3 to 5 times that of flat filter materials).
The weighing efficiency of G3 grade filter media for particles ≥5μm is 80%-90%, while that of G4 grade is increased to over 90%. It is suitable for intercepting large particles of dust, pollen, hair and other contaminants.
Framework
The outer Frame is made of high-strength waterproof Cardboard (Cardboard Paper Frame), formed through die-cutting and bonding processes, and has the advantages of lightweight and low cost.
Some high-end models will add metal reinforcing strips along the edges of the paper frame to enhance moisture resistance and structural stability, and adapt to working conditions with humidity ≤80%.
Ii. Performance Parameters and Applicability
Core parameters
Efficiency grade: G3/G4 complies with EN779:2012 or ASHRAE 52.2 standards and falls within the category of primary filtration. It mainly protects medium and high-efficiency filters from contamination by large particles.
Wind resistance characteristics: The initial pressure drop is usually 20-50Pa (G3) and 25-60Pa (G4), which increases linearly with the increase of dust holding capacity. It is recommended to replace when the final resistance value is 200-250Pa.
Dust holding capacity: Due to the higher density of the filter material, the dust holding capacity of G4 grade is approximately 30% higher than that of G3 grade, making it suitable for industrial environments with higher dust concentration.
Environmental adaptability
Temperature resistance range: -10℃ to 80℃ (short-term tolerance to 100℃), suitable for conventional air conditioning systems and pre-filtration in industrial ovens.
Moisture resistance: The structure of the paper frame remains stable when the humidity is ≤80%, but long-term high-humidity environments may lead to mold. Direct contact with condensate water should be avoided.
Iii. Typical Application Scenarios
Commercial building
As the first-stage filter of the central air conditioning system, it intercepts large particles in the outdoor fresh air and extends the service life of the medium-efficiency filter.
It is suitable for places such as shopping malls, office buildings and hotels that are sensitive to initial investment and have high requirements for maintenance convenience.
"工业领域" 可 以 翻 译 为 "industrial field"
Pre-filtration in the spray painting workshop and clean room of the electronics factory intercepts metal debris, fibers, etc., protecting precision equipment.
When used in conjunction with bag filters or FFUs, a multi-stage filtration system is formed to reduce the frequency of HEPA filter element replacement.
Household scene
The wall-mounted air conditioner and the pre-filter of the fresh air system intercept pet hair, willow catkins, etc., reducing the dust accumulation pressure on the evaporator.
The filter screen should be inspected and replaced regularly (every 1 to 3 months) to prevent secondary pollution.
Iv. Analysis of Advantages and Disadvantages
Advantage
High cost-effectiveness: The unit price is usually less than $5, making it suitable for large-scale deployment.
Easy maintenance: The lightweight design makes manual replacement convenient without the need for professional tools.
Environmental friendliness: Paper frames can be recycled or incinerated, meeting the requirements of green buildings.
Limitations
Efficiency limitation: It cannot filter PM2.5, bacteria and other fine particles and needs to be used in combination with medium and high-efficiency filters.
Insufficient durability: Paper frames are prone to deformation in damp or extreme temperatures, and their lifespan is typically 3 to 6 months (depending on the working conditions).
Poor fire resistance: Paper frames are flammable materials and should be kept away from open flames or high-temperature heat sources.
V. Selection and Usage Suggestions
Select the type according to the working conditions
For high dust concentration (such as in cement plants and mines), G4 grade is preferred. A regular office environment at level G3 is sufficient to meet the requirements.
In scenarios where the humidity is over 80% (such as swimming pools and textile factories), it is recommended to switch to galvanized steel frame or aluminum alloy frame filters.
Installation and maintenance
When installing, ensure that the filter screen is tightly attached to the frame to avoid bypass air leakage.
Establish a regular inspection system, monitor the final resistance value through a differential pressure gauge, and replace the filter screen in a timely manner to maintain the system air volume.
Alternative solution
For scenarios with high durability requirements, ABS plastic frame or aluminum alloy frame primary filters can be selected, but the cost will increase by 30% to 50%.
When it is necessary to filter out cooking fumes or chemical gases, activated carbon composite filter screens or dedicated chemical filters should be used instead.
