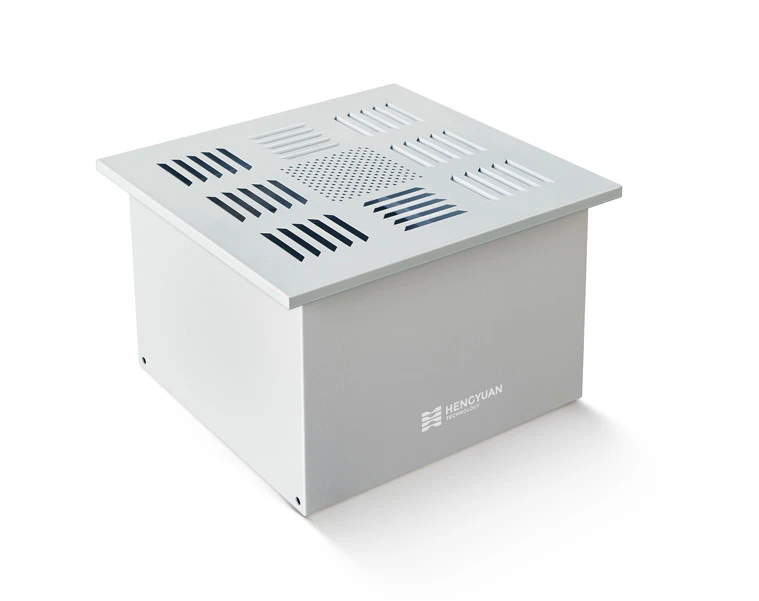

Introduction
This series of products is an ideal terminal filtration device for 1000, 10000, and 100000 level purification air conditioning systems, and is widely used in purification air conditioning systems in pharmaceutical, health, electronics, chemical, and other industries. As a terminal filtration device for the renovation and construction of 1000-3000 level clean rooms, it is a key equipment to meet the purification requirements. This product includes a static pressure box, a diffuser, and a high-efficiency filter. The interface with the air duct can be top or side connected, with a compact structure and good sealing performance.
Model, size and technical parameters
|
Filter model |
Overall dimensions (mm) |
Overall dimensions (mm) |
Rated air flow (m3/h) |
Air inlet pipe size (mm) |
|
|
Side air intake |
Top air intake |
||||
|
HGB/HWB-200 |
HGB/HWB-200D |
370*370*530 |
320*320*220 |
500m3/h |
200*200 |
|
HGB/HWB-484 |
HGB/HWB-484D |
534*534*530 |
484*484*220 |
1000m3/h |
320*200 |
|
HGB/HWB-610 |
HGB/HWB-610D |
660*660*460 |
610*610*150 |
1000m3/h |
320*250 |
|
HGB/HWB-820 |
HGB/HWB-820D |
870*650*460 |
820*600*150 |
1200m7h |
320*250 |
|
HGB/HWB-630 |
HGB/HWB-630D |
680*680*530 |
630*630*220 |
1500m3/h |
320*250 |
|
HGB/HWB-726 |
HGB/HWB-726D |
776*534*530 |
726*848*220 |
1500m3/h |
400*200 |
|
HGB/HWB-915 |
HGB/HWB-915D |
965*660*460 |
915*610*150 |
1500m3/h |
500*250 |
|
HGB/HWB-968 |
HGB/HWB-968D |
1018*534*530 |
968*484*220 |
2000m7h |
500*200 |
|
HGB/HWB-1220 |
HGB/HWB-1220D |
1270*660*460 |
1220*610*150 |
2000m7h |
500*200 |
|
HGB/HWB-945 |
HGB/HWB-945D |
995*680*530 |
945*630*220 |
2200m7h |
500*250 |
|
HGB/HWB-1260 |
HGB/HWB-1260D |
1310*680*530 |
1260*630*220 |
3000m3/h |
600*250 |
Note: High Efficiency Air Supply Outlet According to user requirements, different specifications and models of filters can be customized.
Company profile:
Henan Hengyuan Technology Co.,Ltd is located in Nanpu Juren road, Changyuan City, Henan Province, with convenient transportation and beautiful environment. It is adjacent to Daguang Expressway in the west and Yellow River Tourism ecological Park in the east. The company has modern technical equipment and strong economic strength. Specializing in the R&D,manufacturing and sales of various specifications of primary, intermediate, sub high efficiency and high efficiency air filters, precision equipment dust screens, fresh air filters, return air screens, activated carbon filters, dust removal series, liquid filters and other purification equipment and laminar flow purification room products.
•The products are widely used in electronics industry, photovoltaic industry, healthcare, electronic technology, biopharmaceuticals, food and beverage, chemical coating, automotive manufacturing, rail transit, communication equipment, shopping malls, hotels, power plants, steel mills, cement plants, refineries, wind power and other fields.
•Henan Hengyuan Technology Co., Ltd always provides our customers with quality services based on the enterprise philosophy of quality first, honesty, win-win cooperation and excellence. We are willing to work hard for a living environment with clear water and blue sky!
Product Display
