The High-Efficiency HEPA Fiberglass Paper F7/F8/F9 V-Bank Filters are advanced air filtration solutions designed for Air Handling Units (AHUs) in agricultural and farm settings. These filters combine high dust-holding capacity, low pressure drop, and compact V-bank design to ensure clean air while optimizing energy efficiency. Below is a detailed breakdown of their features, benefits, and applications in farming environments:
Key Features
HEPA-Grade Fiberglass Media
Made from fine fiberglass paper with a gradient density structure for efficient particle capture.
Available in F7 (80–85%), F8 (85–90%), F9 (90–95%) efficiency (EN 779 standard) or E10–E12 (MPPS 85–99.5%) (ISO 16890).
Optional HEPA (H13–H14) upgrades for sub-micron particle removal (≥99.97% for 0.3µm particles).

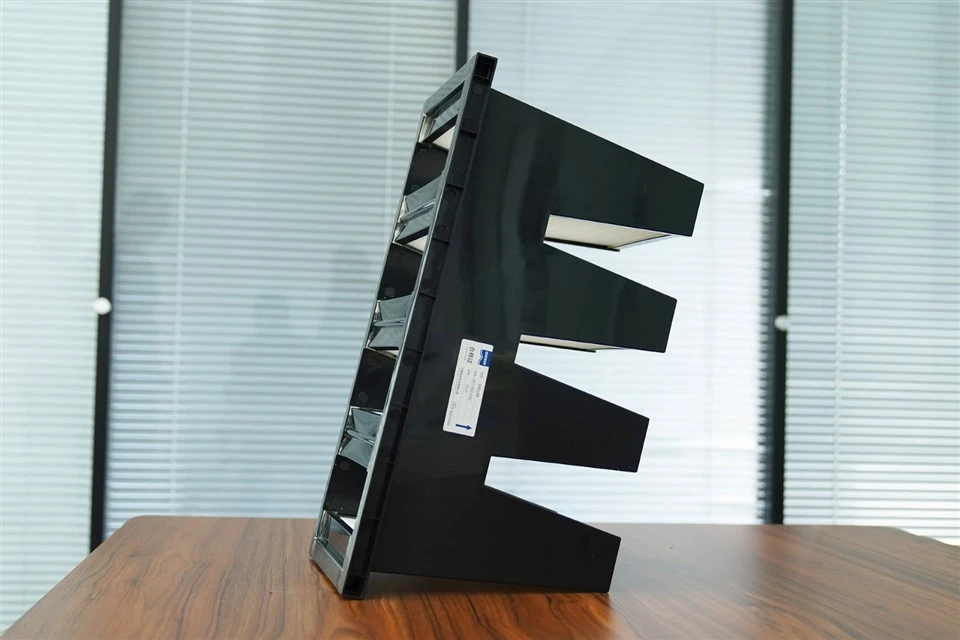

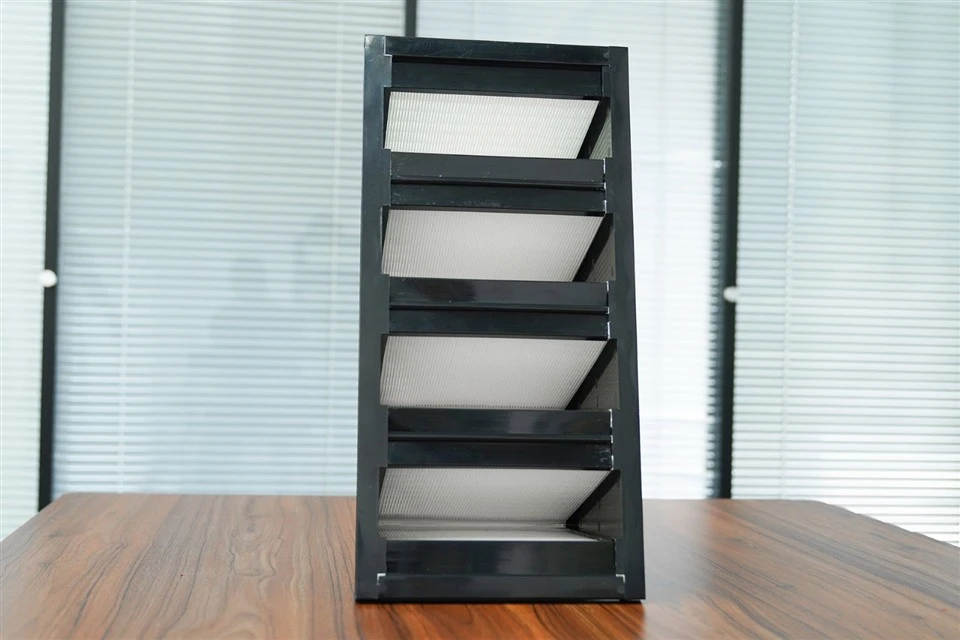

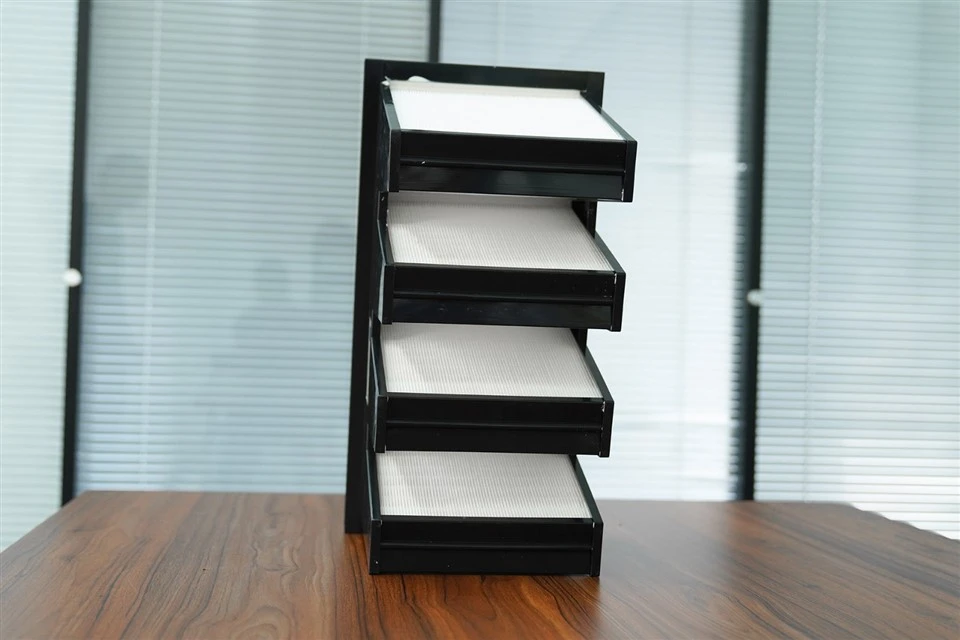

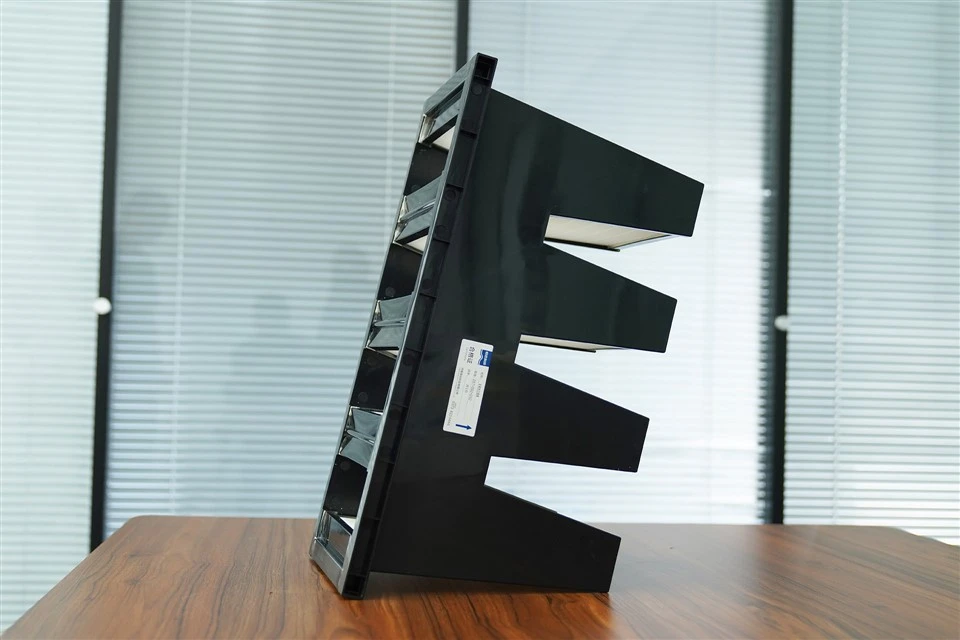

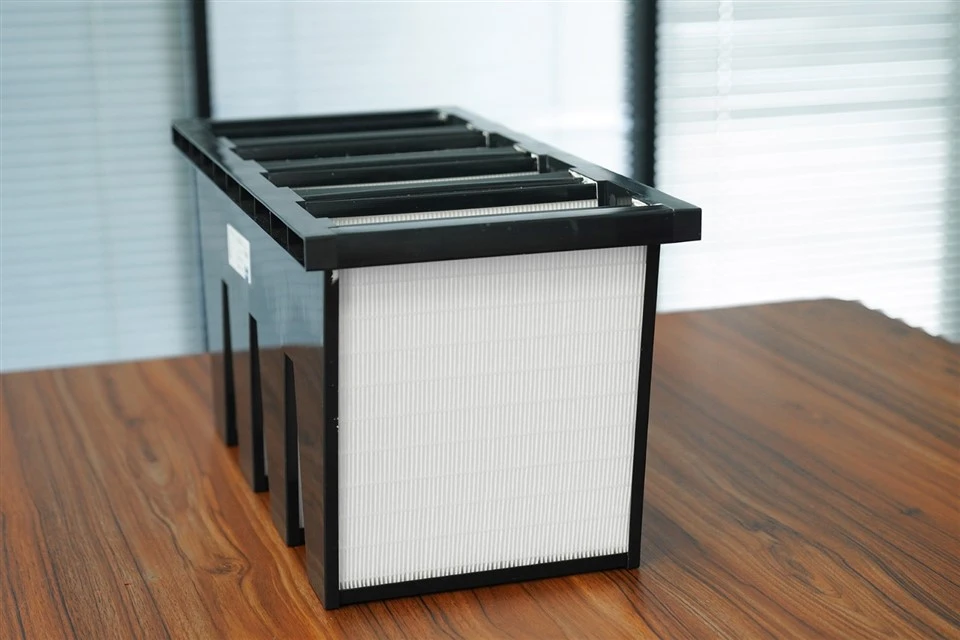

V-Bank Design
Corrugated aluminum separator between pleats increases surface area by 30–50% compared to flat filters.
Compact footprint allows installation in limited spaces while maintaining high airflow.
Uniform airflow distribution reduces pressure drop and extends filter life.
High Dust-Holding Capacity
Fiberglass media resists clogging from coarse and fine agricultural dust (e.g., grain dust, pollen, mold spores).
Longer service life reduces replacement frequency and maintenance costs.
Durable Construction
Galvanized steel frame withstands harsh farm environments (humidity, ammonia, chemicals).
Moisture-resistant design prevents media degradation in high-humidity barns or greenhouses.
Energy Efficiency
Low initial pressure drop (≤ 50 Pa at rated airflow) minimizes fan energy consumption.
Suitable for variable air volume (VAV) systems in modern AHUs.
Benefits for Farm Applications
Improved Air Quality: Removes fine dust (PM2.5/PM10), allergens, and pathogens (e.g., bacteria, fungi) to protect livestock and worker health.
Equipment Protection: Prevents dust buildup in ventilation fans, cooling coils, and ductwork, reducing breakdowns.
Compliance: Meets agricultural air quality standards (e.g., OSHA, EU Directive 2008/50/EC) and biosecurity protocols.
Cost Savings: Lower energy bills due to reduced fan load and fewer filter replacements.
Applications in Farming
Livestock Barns (Poultry, Dairy, Swine)
Filters ammonia, dust, and airborne pathogens to improve animal welfare and productivity.
Grain Storage & Processing Facilities
Captures fine flour dust and mold spores to prevent respiratory issues in workers.
Greenhouses
Removes pollen and pests while maintaining optimal CO₂ levels for plant growth.
Veterinary Clinics & Laboratories
Provides sterile air for surgery rooms and disease control zones.
Technical Specifications (Example)
| Parameter | Details |
|---|---|
| Efficiency | F7 (80–85%), F8 (85–90%), F9 (90–95%) / E10–E12 (ISO 16890) |
| Media | Fine fiberglass paper with aluminum separator |
| Frame Material | Galvanized steel / ABS plastic (optional) |
| Max Temp | 80°C (continuous), 100°C (short-term) |
| Max Humidity | 100% RH (non-condensing) |
| Pressure Drop | ≤ 50 Pa (initial at rated airflow) |
| Dimensions | Standard: 592x592x292mm (other sizes available) |
| Lifespan | 6–12 months (depending on dust load) |
Selection Guide
Dust Type & Load:
Coarse dust (grain, straw): F7–F8
Fine dust (flour, pollen): F9–E11
Pathogen control (bacteria, viruses): H13–H14 HEPA
Airflow Requirements:
Match filter face velocity (2.5–3 m/s) to AHU specifications.
Avoid oversizing to prevent bypass leakage.
Environmental Factors:
High humidity: Choose moisture-resistant media and sealed frames.
Corrosive gases (ammonia): Opt for epoxy-coated steel frames.
Maintenance Tips
Monitor Pressure Drop: Replace filters when pressure rises by 200–250 Pa above initial readings.
Pre-Filtration: Use G4–M5 panel filters upstream to extend V-bank filter life.
Regular Inspection: Check for media damage or bypass leaks during routine AHU maintenance.
Why Choose V-Bank Filters for Farms?
Space-Saving: Fit more filtration area in less space compared to bag or panel filters.
Energy-Efficient: Low pressure drop reduces electricity costs for ventilation fans.
Long-Lasting: Fiberglass media resists degradation from agricultural contaminants.
For farms seeking reliable, high-efficiency air filtration, these V-bank filters offer a cost-effective solution to improve air quality, protect equipment, and ensure regulatory compliance. Partner with a supplier that provides custom sizing and efficiency ratings tailored to your specific agricultural needs.
