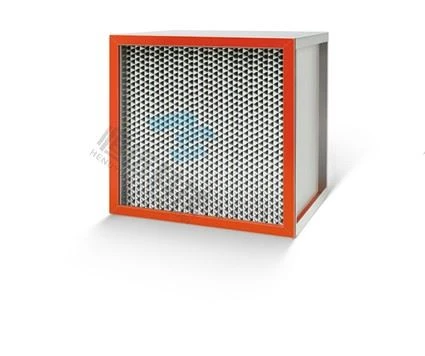

High Temperature Resistant HEPA Air Filter (H14 Low Resistance for Ultra Clean Oven High-Temp Purification)
Products Description
The High Temperature Resistant HEPA Air Filter (H14) is designed for ultra-clean ovens and high-temp environments, offering ≥99.995% filtration efficiency (@0.3μm), ≤250Pa resistance, and customizable models for reliable high-heat air purification.
Performance and characteristics:
Structural Design
This filter adopts a robust structure with stainless steel frame and aluminum partition, complemented by high-temperature resistant silicone sealant. This design ensures structural stability and airtightness, making it perfectly adaptable to ultra-clean oven and other high-temperature environments.
Function and Performance
It boasts H14 efficiency (≥99.995% @ 0.3μm, counting method) and an initial resistance ≤250Pa, achieving a balance between high efficiency and low resistance. The glass fiber filter paper media provides large dust capacity and excellent wind speed uniformity, ensuring consistent filtration performance in high-temperature conditions.
Application Scenarios
The filter is ideal for ultra-clean ovens and other equipment/systems that require high-temperature air purification, such as industrial baking facilities and high-heat cleanrooms, where maintaining air cleanliness under extreme heat is crucial.
Model, Size and Technical Parameters
| Filter model | Overall dimensions (mm) | Rated air flow (m³/h) | Initial resistance (Pa) | Filter area (m²) | Efficiency (counting method @ 0.3μm) |
|---|---|---|---|---|---|
| HNW-10N | 484×484×220 | 1000 | ≤250 | 10.8 | H14 |
| HNW-4N | 320×320×220 | 400 | ≤250 | 4.8 | H14 |
| HNW-15N | 630×630×220 | 1500 | ≤250 | 19.2 | H14 |
| HNW-10N | 610×610×150 | 1000 | ≤250 | 15.3 | H14 |
| HNW-18N | 610×610×290 | 1800 | ≤250 | 22.5 | H14 |
| HNW-15N | 915×610×150 | 1500 | ≤250 | 18.8 | H14 |
Note: Customization of specifications and models is available based on user requirements.
Certificate
Company Profile
About us
Company Overview Henan Hengyuan Technology Co., Ltd. is situated in Nanpu Juren Road, Changyuan City, Henan Province. It boasts modern technical equipment and robust economic strength.
Exhibitions Participated
Production Environment
workshop&equipment
Shipping
1. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!
Delivery time
15-30 days after receiving your payment or order confirmation
