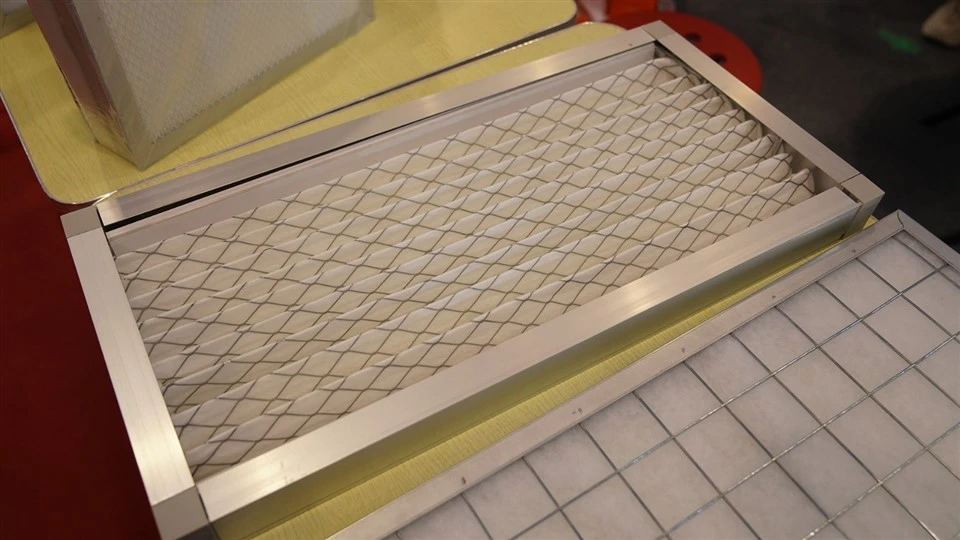

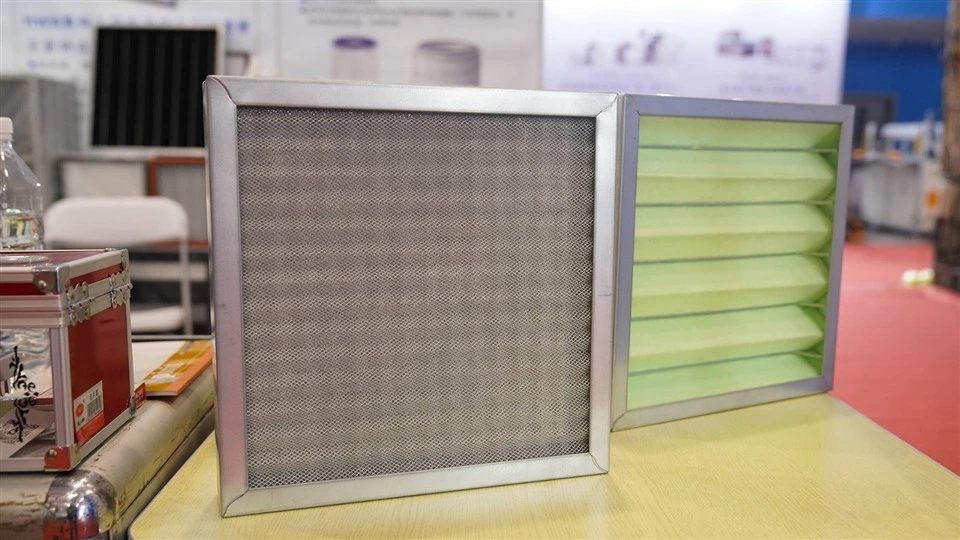

The Customized Panel Pleated Pre-Filter with Aluminum Frame (20×20×1 or 24×24×1 inches) is a high-performance, washable metal air filter designed for industrial and commercial HVAC systems. Below is a detailed breakdown of its features, benefits, and applications:
Key Features
Material & Construction
Frame: Lightweight yet durable aluminum (1-inch depth).
Filter Media: Pleated metal (e.g., aluminum or galvanized steel) for enhanced surface area and dust-holding capacity.
Pleated Design: Increases filtration efficiency by expanding the media area compared to flat-panel filters.
Customization Options
Dimensions: Available in standard sizes (20×20×1, 24×24×1 inches) or custom sizes to fit specific HVAC units.
Media Type: Choose between aluminum, galvanized steel, or stainless steel for corrosion resistance.
Pleat Density: Adjustable to balance airflow and filtration efficiency.
Washable & Reusable
Designed for repeated cleaning (e.g., with water, compressed air, or vacuuming), reducing long-term costs and waste.
High Efficiency
Captures large particulates (e.g., dust, lint, pollen) as a pre-filter, protecting downstream HEPA or carbon filters.
MERV rating typically ranges from MERV 6–8 (depending on pleat density and media type).
Low Pressure Drop
Optimized pleat spacing ensures minimal airflow resistance, maintaining HVAC system efficiency.
Fire Resistance
Metal construction is non-combustible, making it suitable for safety-critical environments.
Applications
Industrial HVAC Systems: Factories, warehouses, and manufacturing plants.
Commercial Buildings: Offices, hospitals, schools, and shopping malls.
Data Centers: Protecting sensitive equipment from airborne contaminants.
Food & Beverage Industry: Compliant with hygiene standards for washable filters.
Paint Booths & Spray Areas: Capturing overspray and particulates.
Benefits
Cost-Effective: Reusable design eliminates frequent replacements.
Eco-Friendly: Reduces landfill waste compared to disposable filters.
Durable: Withstands harsh environments and high-velocity airflow.
Easy Maintenance: Quick to clean and reinstall.
Technical Specifications
| Parameter | Details |
|---|---|
| Frame Material | Aluminum (1" depth) |
| Filter Media | Pleated metal (aluminum/galvanized steel) |
| Standard Sizes | 20×20×1", 24×24×1" (custom sizes available) |
| Efficiency | MERV 6–8 (pre-filter grade) |
| Operating Temp | Up to 250°F (121°C) for aluminum; higher for stainless steel |
| Cleaning Method | Water wash, vacuum, or compressed air |
Installation & Maintenance
Installation:
Slide into the filter rack or housing securely.
Ensure proper sealing to prevent bypass.
Maintenance:
Clean every 1–3 months (or as needed based on load).
Use mild detergent for stubborn dirt; dry completely before reinstalling.
Why Choose This Filter?
Longevity: Outlasts disposable filters by years.
Performance: High dust-holding capacity with minimal pressure drop.
Versatility: Customizable for unique HVAC requirements.
For pricing or to request a quote, contact a manufacturer specializing in industrial air filtration solutions. Provide your exact dimensions, media preference, and application details for a tailored product.
Would you like additional details on compliance certifications (e.g., UL, ASHRAE) or comparisons with other filter types?
