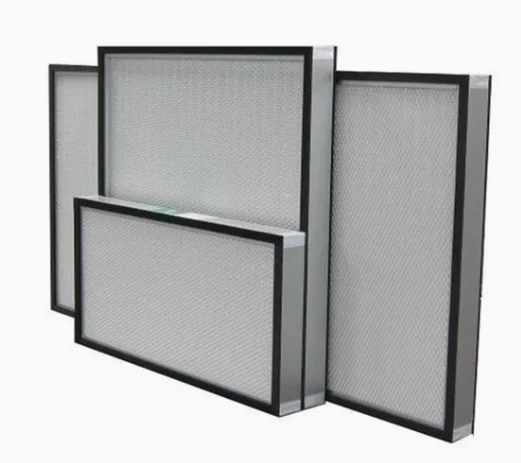

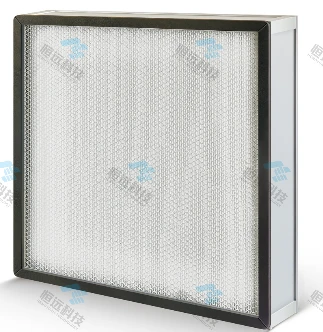

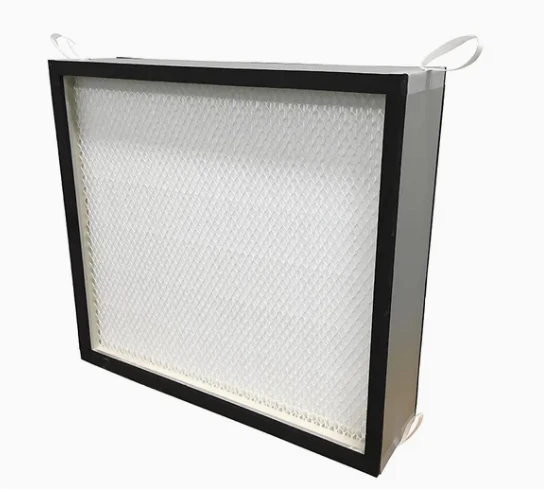

Partition-Free High Efficiency Air Filter (Counting Method, Thin and Low Resistance Type for HVAC Terminal Filtration)
Products Description
Key Features:
High Efficiency (Counting Method):
Boasting a filtration efficiency of ≥99.99% (counting method for 0.3μm particles), it ensures superior air purity, meeting the stringent requirements of clean environments and HVAC terminal filtration.

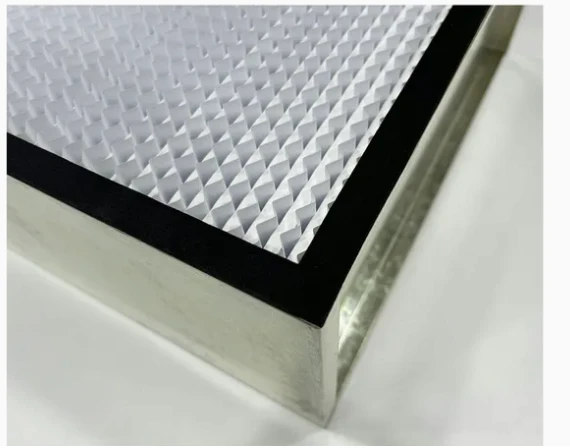

Partition-Free Structure:
This design not only contributes to its thin thickness (enabling space-saving installation) but also optimizes airflow distribution, enhancing overall filtration performance.
Low Resistance & Cost-Effective Operation:
With an initial resistance of ≤220Pa, it minimizes energy consumption, leading to low operating costs. The convenient installation process further reduces labor and time expenses.

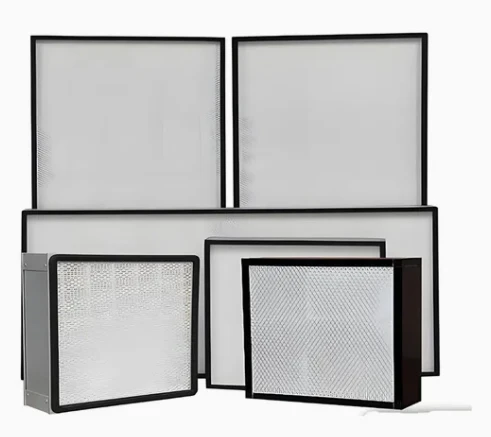

Customizable Specifications:
Available in a wide range of sizes (e.g., 305×610×50mm, 1220×610×69mm, etc.) and configurations, it can be tailored to meet the specific needs of different HVAC systems and purification environments.
Application Scenarios
Terminal filtration of air conditioning units in commercial buildings, industrial facilities, and residential complexes.
Purification environments with high coverage of high-efficiency filters, such as cleanrooms, laboratories, and precision manufacturing spaces.
Technical Specifications (Key Parameters)
| 过滤器型号 | 外形尺寸 (mm) | 额定风量 (m³/h) | 初阻力 (Pa) | 效率 (%)(计数法 @0.3μm) | 容尘量 (g) |
|---|---|---|---|---|---|
| HWB-3.5B | 305×610×50 | 350 | ≤220 | ≥99.99 | 220 |
| HWB-7B | 610×610×50 | 700 | ≤220 | ≥99.99 | 450 |
| HWB-5B | 305×610×69 | 500 | ≤220 | ≥99.99 | 300 |
| HWB-10B | 610×610×69 | 1000 | ≤220 | ≥99.99 | 600 |
| HWB-15B | 915×610×69 | 1500 | ≤220 | ≥99.99 | 900 |
| HWB-18B | 1170×570×69 | 1800 | ≤220 | ≥99.99 | 1100 |
| HWB-20B | 1220×610×69 | 2000 | ≤220 | ≥99.99 | 1200 |
| HWB-4.5B | 350×350×80 | 450 | ≤220 | ≥99.99 | 250 |
| HWB-5B | 400×400×80 | 500 | ≤220 | ≥99.99 | 300 |
| HWB-8B | 484×484×80 | 800 | ≤220 | ≥99.99 | 450 |
| HWB-10B | 550×550×80 | 1000 | ≤220 | ≥99.99 | 600 |
| HWB-13.5B | 610×610×80 | 1350 | ≤220 | ≥99.99 | 750 |
| HWB-15B | 630×630×80 | 1500 | ≤220 | ≥99.99 | 800 |
| HWB-20B | 915×610×80 | 2000 | ≤220 | ≥99.99 | 1100 |
| HWB-27B | 1220×610×80 | 2700 | ≤220 | ≥99.99 | 1500 |
| HWB-9B | 484×484×90 | 900 | ≤220 | ≥99.99 | 550 |
| HWB-14.5B | 610×610×90 | 1450 | ≤220 | ≥99.99 | 850 |
| HWB-29B | 1220×610×90 | 2900 | ≤220 | ≥99.99 | 1700 |
Note: Different specifications and models can be customized according to user requirements.
