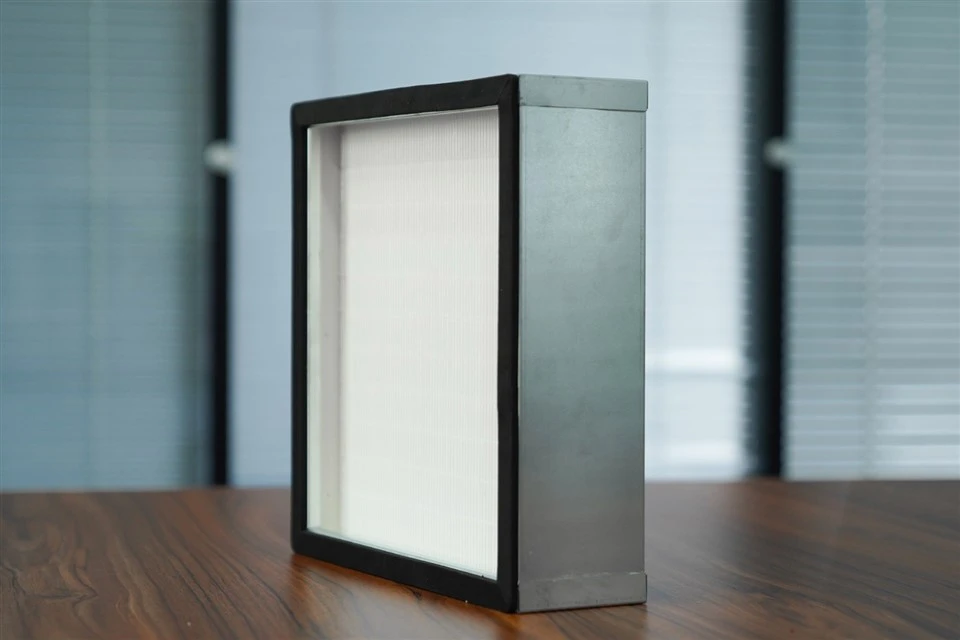

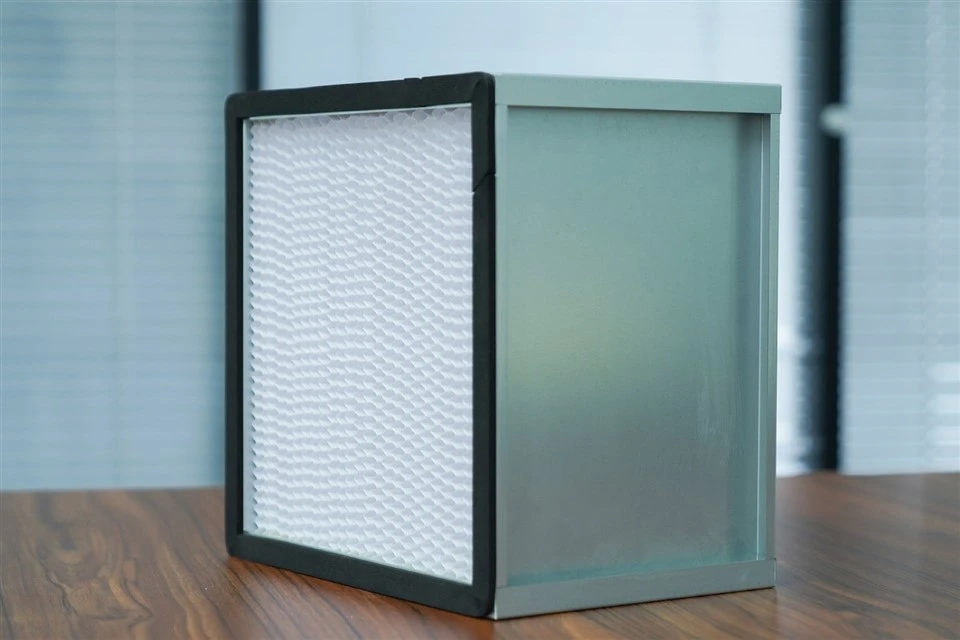

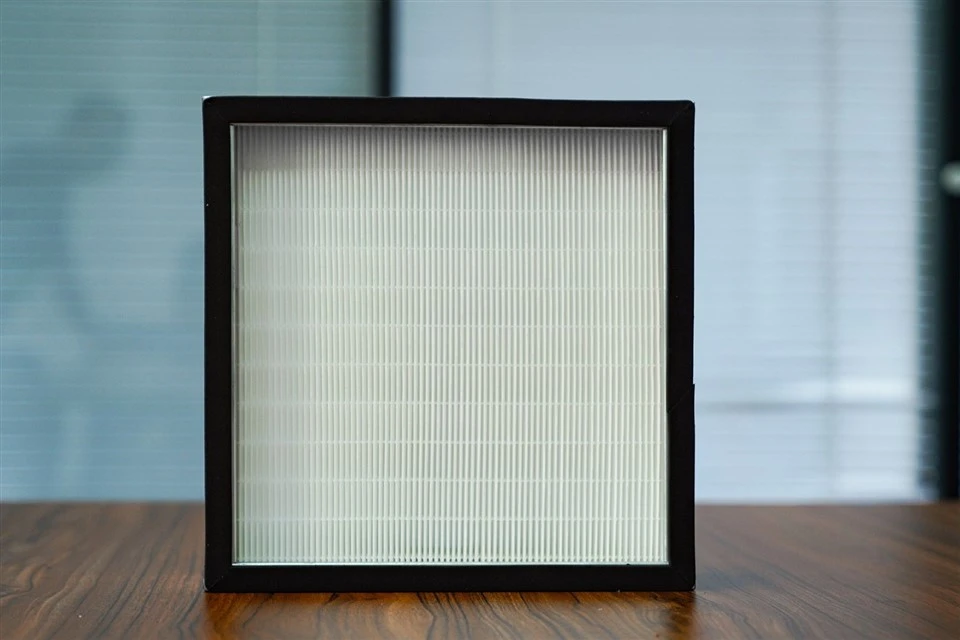

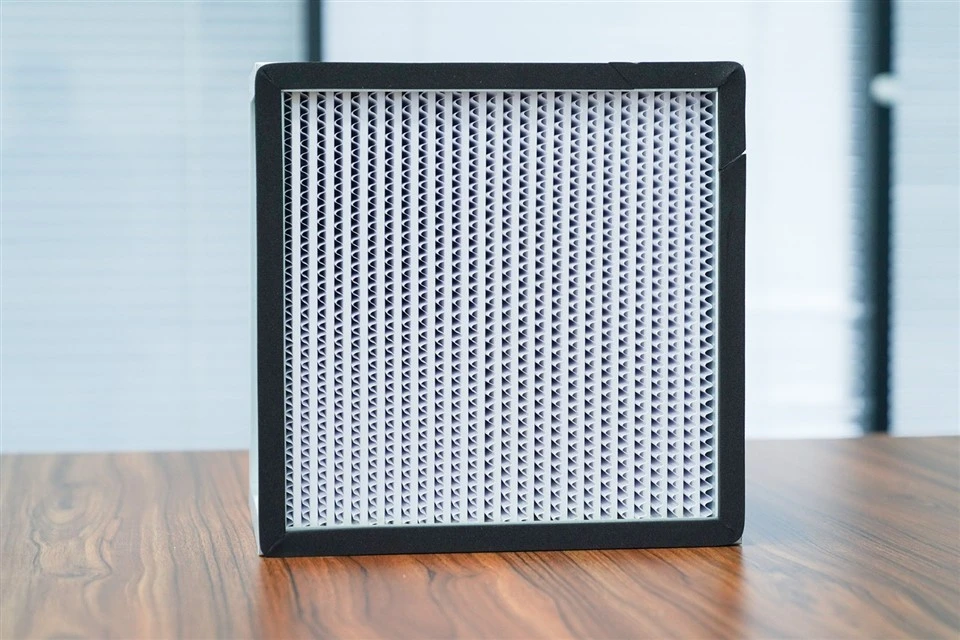

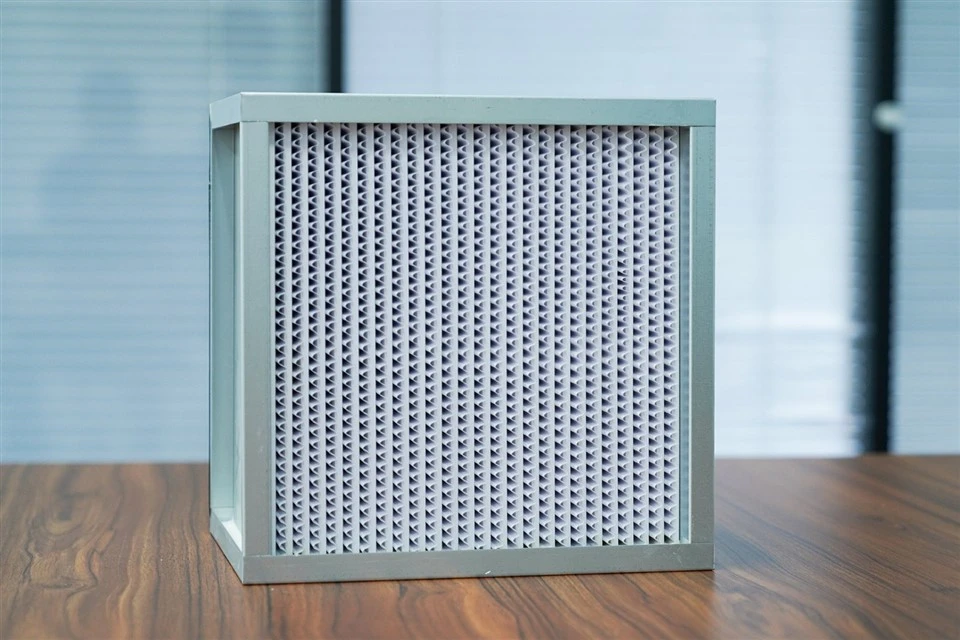

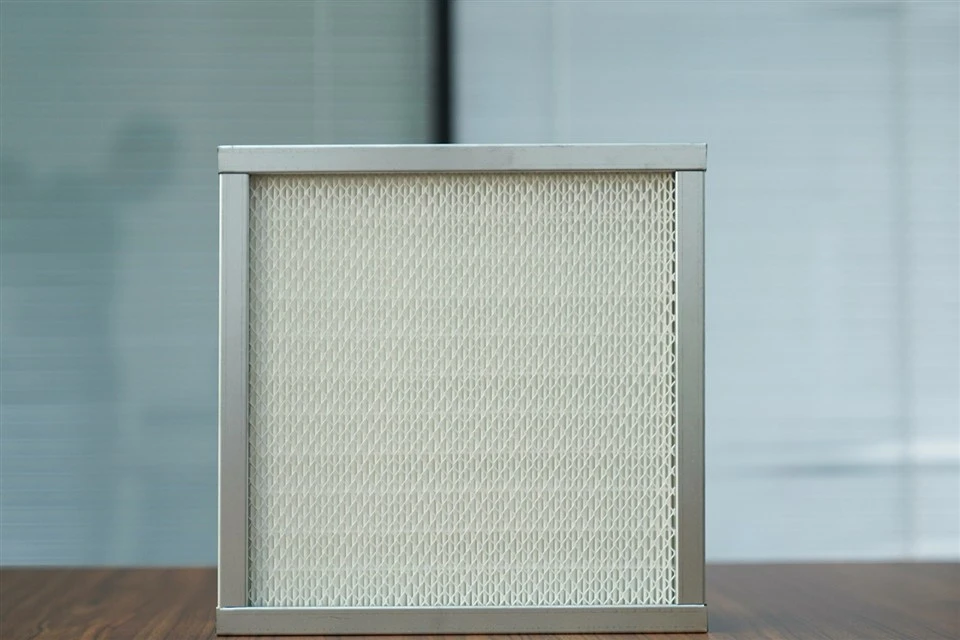

Product Description: 1.9 High Humidity Air Filter for Fine Efficiency and Performance
This product is a high-efficiency air filter specifically designed for high-humidity environments. It utilizes moisture-resistant glass fiber filter paper or composite non-woven fabric as the core filter media, combined with a precision-engineered pleated structure and a stable frame, ensuring efficient filtration, long-lasting operation, and low resistance performance under humid conditions.
Core Features
High-Efficiency Filtration Performance
Efficiency Grade: Covers H10~H14 (HEPA grade), achieving over 99.97% interception of particles 0.3μm and larger, meeting stringent air cleanliness requirements in precision environments.
Large Dust Holding Capacity: The pleated design of the filter media (e.g., with aluminum foil or paper separators) maximizes filtration area, enabling it to hold 230~740 grams of dust per filtration cycle (depending on size), significantly extending replacement intervals.
Moisture-Resistant Design
Filter Media: Made of moisture-resistant glass fiber paper or composite non-woven fabric to prevent fiber swelling or shedding in humid environments, ensuring stable filtration efficiency.
Sealing: Utilizes polyurethane sealant or silicone to prevent water penetration, which could cause frame corrosion or secondary pollution.
Humidity Tolerance: Suitable for environments with a maximum humidity of 100%, including high-temperature and high-humidity workshops, laboratories, and pharmaceutical manufacturing facilities.
Structural and Material Advantages
Frame: Constructed with aluminum alloy or galvanized steel frames, offering corrosion resistance and high strength to adapt to complex operating conditions.
Pleat Support: Aluminum foil or paper separators evenly divide the pleats, preventing filter media collapse and ensuring smooth airflow.
Outer Frame Material: Optional SUS 304 stainless steel frame for enhanced corrosion resistance, suitable for chemical and marine applications.
Optimized Operating Parameters
Rated Air Volume: Supports high flow rates of 450~3330 m³/h, compatible with ventilation systems of various scales.
Resistance Control: Initial resistance as low as 220~249 Pa, with final resistance controllable between 400~600 Pa, reducing system energy consumption.
Temperature Tolerance: Maximum operating temperature of 80~120°C (varies by model), meeting the demands of high-temperature sterilization or drying processes.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 1.9 High Humidity Air Filter |
| Dimensions (W×H×D) | 484×484×120 mm to 1220×610×70 mm (multiple sizes available) |
| Filter Media | Moisture-resistant glass fiber paper/composite non-woven fabric |
| Efficiency Grade | H10~H14 (optional) |
| Filtration Area | 4.4~14.1 m² (depending on size) |
| Applicable Air Volume | 450~3330 m³/h |
| Initial Resistance | 220~249 Pa |
| Final Resistance | 400~600 Pa |
| Maximum Temperature | 80~120°C (varies by model) |
| Maximum Humidity | 100% |
| Certification Standards | CE, UL-2 (optional) |
Application Scenarios
Industrial Sector: Ideal for locations with high air cleanliness and humidity control requirements, such as electronics manufacturing, pharmaceuticals, food processing, and chemical industries.
Commercial Buildings: Suitable for final filtration stages in large ventilation systems of shopping malls, hospitals, and laboratories.
Special Environments: Adapted to high-temperature and high-humidity workshops, marine climate regions, and areas with strict fire safety requirements.
Summary of Advantages
High Efficiency and Moisture Resistance: Combines HEPA-grade filtration efficiency with 100% humidity tolerance for extreme environments.
Long Lifespan and Low Maintenance: Large dust holding capacity and stable structure reduce replacement frequency and maintenance costs.
Safety and Compliance: Features flame-retardant materials and a design free of organic adhesives, meeting environmental protection and international safety standards.
Flexible Customization: Supports personalized requirements for size, efficiency grade, and frame material to meet diverse application needs.
This product provides a one-stop solution for air filtration needs in high-humidity environments by optimizing filter media, structure, and operating parameters, making it an ideal choice for improving air quality and ensuring stable system operation.
