Bag Type Air Filter (Medium Efficiency F5-F8, Low Resistance & Large Air Volume, Reusable for HVAC Ventilation/Pharmaceutical/Electronics/Food Industries)
Products Description
The Bag Type Air Filter is a high-performance medium-efficiency filtration solution engineered to meet air quality demands across diverse sectors. Covering efficiency grades F5–F8, it delivers reliable particle capture while boasting low resistance and large air volume for optimal airflow dynamics. A standout attribute is its reusability-the filter can be utilized multiple times, ensuring a long service life and cost-effectiveness.
Core Features:
Medium-Efficiency Filtration (F5-F8)
Effectively captures dust, pollen, and fine particles, aligning with medium-efficiency air purification standards.
Low Resistance & Large Air Volume
Minimizes airflow obstruction with initial resistance ranging from 50–130Pa (depending on efficiency class), while delivering rated airflows of 1300–3200m³/h.
Reusable Design
Durable filter media supports multiple uses, reducing replacement frequency and long-term operational costs.
Versatile Application
Ideal for HVAC ventilation systems in commercial/industrial buildings and critical sectors like pharmaceutical, electronics, and food industries.
Application Scenarios
HVAC Ventilation: Suitable for air purification in office buildings, shopping malls, factories, and other commercial/industrial HVAC systems.
Pharmaceutical Industry: Ensures clean air in drug manufacturing and research facilities.
Electronics Manufacturing: Protects sensitive equipment from particulate contamination.
Food Processing: Maintains hygienic air quality in food production and packaging environments.
Model, Size and Technical Parameters
| Filter Model | Outer Dimension (mm) | Rated Air Volume (m³/h) | Initial Resistance (Pa) | Efficiency Class (Colorimetric Method) | Number of Bags |
|---|---|---|---|---|---|
| HDC5-13 | 490×287×600 | 1300 | 50–70 | F5/F6 | 5 |
| HDC5-22 | 490×490×600 | 2200 | 50–70 | F5/F6 | 5 |
| HDC6-16 | 592×287×600 | 1600 | 50–70 | F5/F6 | 5 |
| HDC6-27 | 592×490×600 | 2700 | 90–130 | F7/F8 | 6 |
| HDC8-32 | 592×592×600 | 3200 | 90–130 | F7/F8 | 8 |
| Filter Model | Outer Dimension (mm) | Rated Air Volume (m³/h) | Initial Resistance (Pa) | Efficiency Class (Colorimetric Method) | Number of Bags |
|---|---|---|---|---|---|
| HDC5-13 | 490×287×600 | 1300 | 90–130 | F7/F8 | 5 |
| HDC5-22 | 490×490×600 | 2200 | 90–130 | F7/F8 | 5 |
| HDC6-16 | 592×287×600 | 1600 | 90–130 | F7/F8 | 5 |
| HDC6-27 | 592×490×600 | 2700 | 90–130 | F7/F8 | 6 |
| HDC8-32 | 592×592×600 | 3200 | 90–130 | F7/F8 | 8 |
Note: Different specifications and models can be customized according to user requirements.
Certificate
Company Profile
About us
Exhibitions Participated

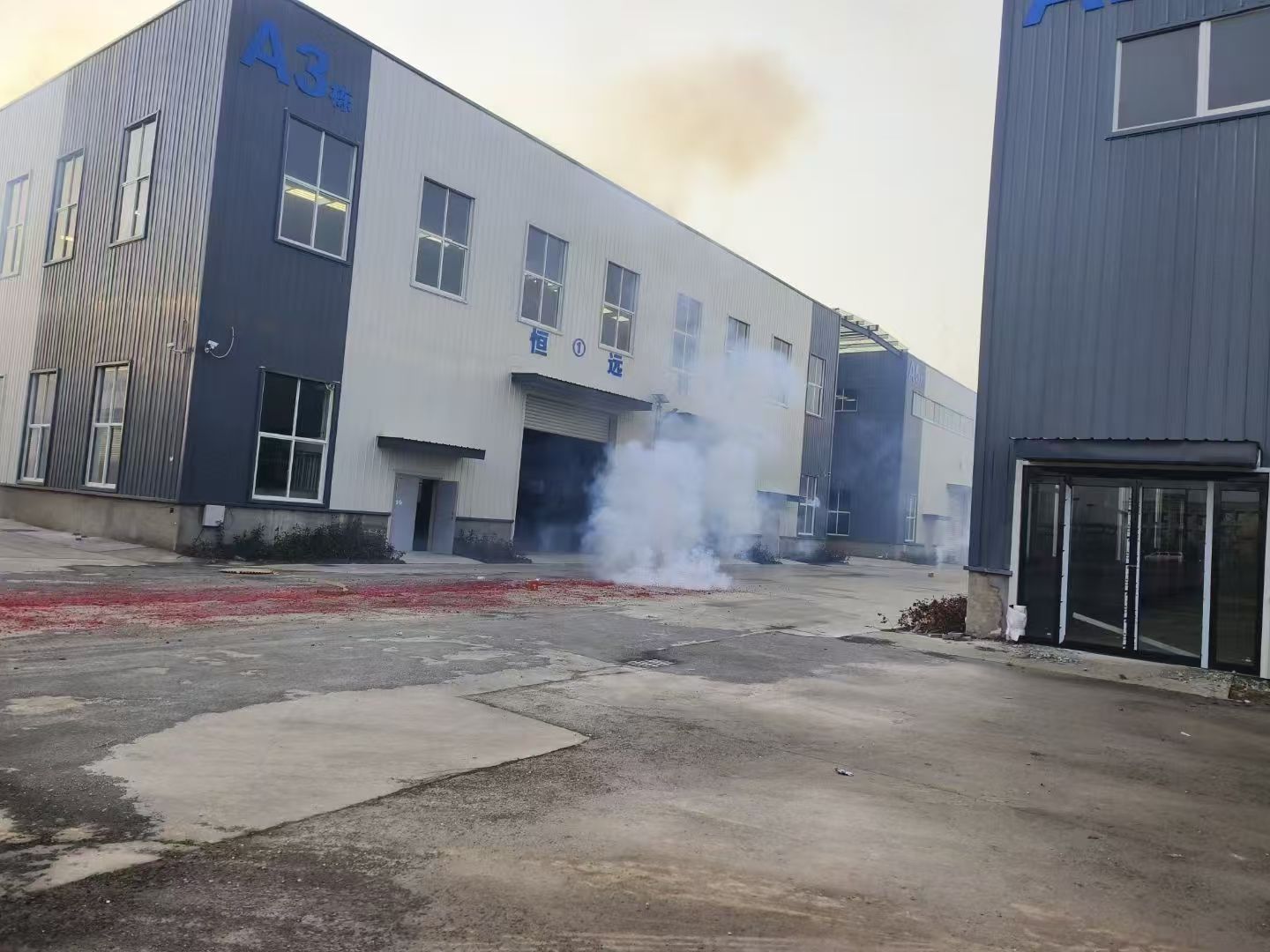

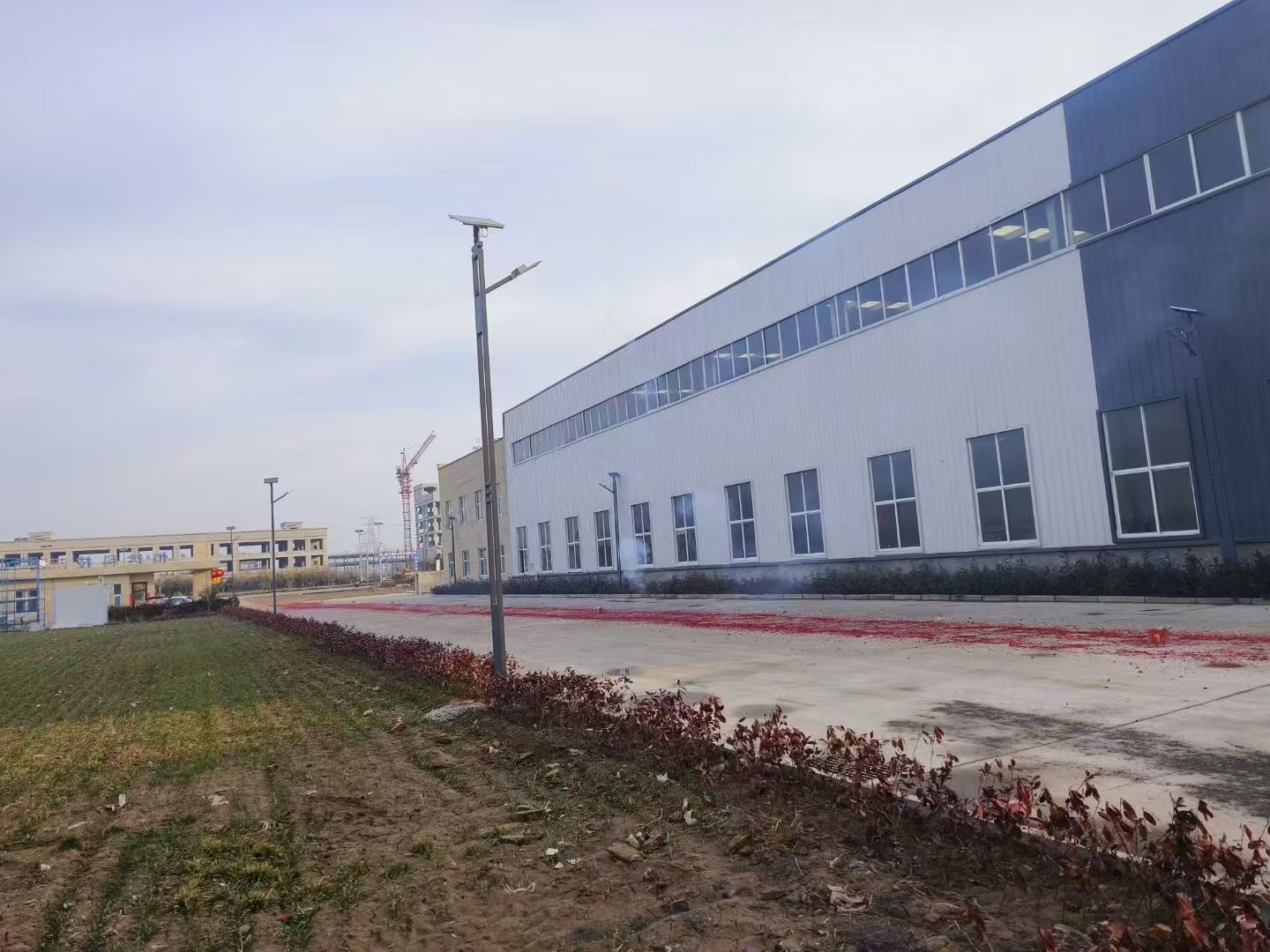

Production Environment
