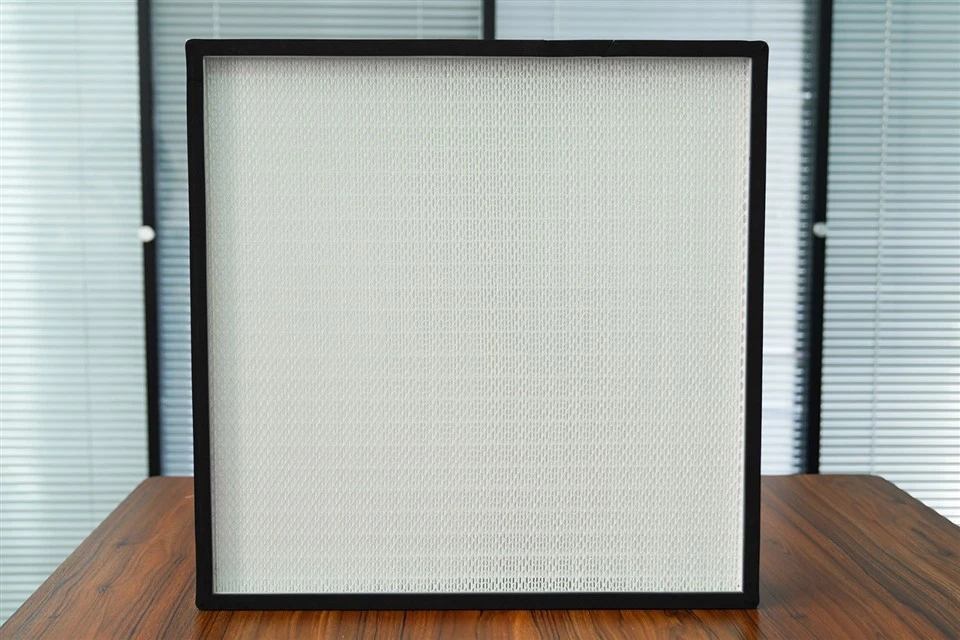

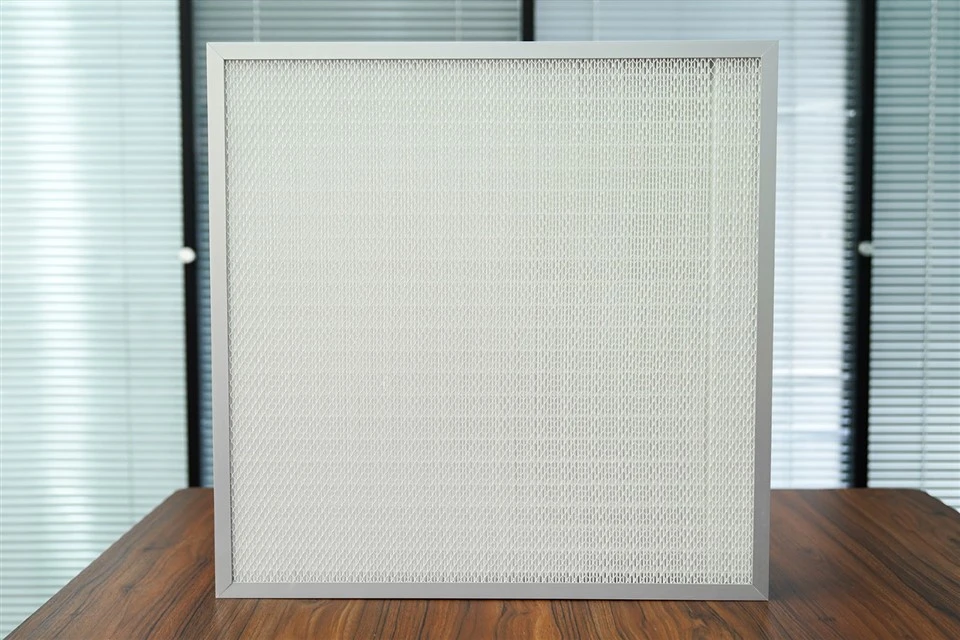

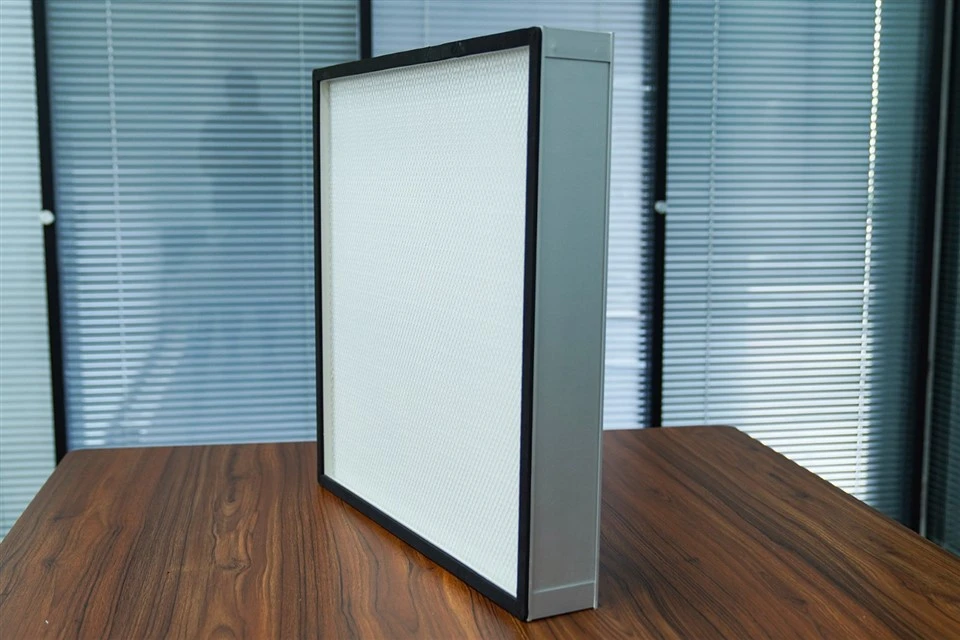

The 1.1 Mini Pleat Air Filter is a high-performance air filtration solution designed for fine dust and allergen removal in residential, commercial, or industrial settings. Its mini-pleat design maximizes surface area, enhancing efficiency in capturing small particles like pollen, pet dander, mold spores, and fine dust (PM2.5/PM10). Below is a detailed breakdown of its features, benefits, and applications:
Key Features
Mini-Pleat Design
Increased Surface Area: More pleats per inch (PPI) than standard filters, allowing for higher particle capture without restricting airflow.
Uniform Airflow: Pleats are evenly spaced to prevent clogging and ensure consistent filtration.
High MERV Rating (Typically MERV 11–16)
MERV 11–13: Effective for removing most allergens (pollen, dust mites, mold spores).
MERV 14–16: Captures finer particles (smoke, bacteria, some viruses), suitable for hospitals or cleanrooms.
Synthetic or Fiberglass Media
Synthetic (Polyester/Polypropylene): Washable, moisture-resistant, and long-lasting.
Fiberglass: Higher efficiency but disposable (common in MERV 13+ filters).
Sturdy Frame Construction
Galvanized Steel or Cardboard: Reinforced frames prevent bending or air leakage.
Gasket Seal: Some models include a foam or rubber gasket for an airtight fit.
Low Pressure Drop
Designed to maintain HVAC system efficiency by minimizing resistance to airflow.
Benefits
Improved Indoor Air Quality (IAQ):
Reduces allergens, asthma triggers, and respiratory irritants.
Longer HVAC Lifespan:
Prevents dust buildup in coils, fans, and ducts, reducing maintenance costs.
Energy Efficiency:
Lower pressure drop means the HVAC system doesn't work as hard, saving on energy bills.
Customizable Options:
Available in various sizes, thicknesses (1", 2", 4"), and MERV ratings to suit different systems.
Applications
Residential Use:
Homes with pets, allergy sufferers, or smokers.
Commercial Buildings:
Offices, schools, hospitals, and hotels requiring clean air for occupants.
Industrial Settings:
Workshops, laboratories, or manufacturing facilities needing fine particle control.
Specialized Environments:
Cleanrooms, data centers, or medical facilities (MERV 14+).
Comparison with Standard Filters
| Feature | Standard Panel Filter | Mini Pleat Filter |
|---|---|---|
| Particle Capture | Large dust, lint | Fine dust, allergens, smoke |
| MERV Rating | MERV 1–8 | MERV 11–16 |
| Surface Area | Low | High (due to pleats) |
| Lifespan | 1–3 months | 3–6 months (depending on MERV) |
| Cost | Lower | Higher (but more efficient) |
Installation & Maintenance
Proper Sizing:
Measure your HVAC system's filter slot accurately to avoid air bypass.
Replacement Schedule:
MERV 11–13: Replace every 3–6 months.
MERV 14–16: Replace every 1–3 months (higher efficiency = faster clogging).
Directional Airflow:
Ensure the arrow on the filter points toward the HVAC blower (airflow direction).
Regular Inspection:
Check for gaps or damage that could allow unfiltered air to pass through.
Conclusion
The 1.1 Mini Pleat Air Filter is an excellent choice for anyone seeking superior fine dust and allergen removal without sacrificing HVAC efficiency. Its high MERV rating and pleated design make it ideal for homes with allergy sufferers, pet owners, or those in dusty environments. Just ensure proper sizing and regular replacement to maximize its benefits.
Would you like recommendations for specific brands or MERV ratings based on your needs?
