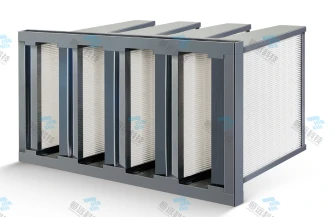

Sub High Efficiency Air Filter (High Air Volume, Multi-Grade Filtration, High Dust Capacity for HVAC Systems)
Products Description
Core Features
No Partition Design: Eliminates spacing barriers between filter layers, ensuring airflow passes with minimal resistance while fully utilizing filter material depth.
High Dust Holding Capacity: Crafted from ultra-fine, moisture-proof, fire-resistant glass fiber, it maintains stable performance with a larger dust load, reducing replacement frequency.
High Airflow Performance: Supports high air volume operation (up to 1800m³/h) while keeping initial resistance ≤100Pa (F8 grade), suitable for large-space ventilation systems.
Multi-Grade Filtration: Covers efficiency levels from F6 (60–65%) to H10 (>99%), adapting to medium, sub-high, and high-efficiency purification needs.
Durable Frame: Constructed with galvanized steel plate or plastic, ensuring structural stability in long-term commercial/industrial use.
Application Scenarios
Commercial HVAC Systems: Ideal for air conditioning & ventilation in office buildings, hospitals, shopping malls, stadiums, and airports.
Industrial HVAC Pre-Filtration: Serves as pre-filter for centralized ventilation systems in ordinary industrial workshops or clean production areas, protecting downstream high-efficiency filters.
Technical Parameters
| Filter Model | Outer Dimensions (mm) | Rated Airflow (m³/h) | Initial Resistance (Pa) | Efficiency (%) (Counting Method, 0.3μm) |
|---|---|---|---|---|
| HZL-36 | 592×592×292 | 1800 | ≤100Pa (F8) | F6: 60–65%; F7: 80–85%; F8: 90–95%; F9: >95%; H10: >99% |
| HZL-18 | 592×287×292 | 1300 | ≤100Pa (F8) | F6: 60–65%; F7: 80–85%; F8: 90–95%; F9: >95%; H10: >99% |
Note: Different specifications and models can be customized according to user requirements.
